在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA0603S-R68MTFIXED IND 680NH 16A 5.3MOHM SMD |
1,293 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 16 A | 17A | Shielded | 5.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWSA0618S-R10MTFIXED IND 100NH 25A 2.3MOHM SMD |
1,262 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 nH | ±20% | 25 A | 38A | Shielded | 2.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
MWLA0624S-4R7MTFIXED IND 4.7UH 50MOHM 9000MA |
1,250 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 9A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
MWLA0603S-R56MTFIXED IND 0.56UH 5MOHM 25500MA |
1,211 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 560 nH | ±20% | 16.5 A | 25.5A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWLA0603S-5R6MTFIXED IND 5.6UH 48MOHM 9000MA |
1,207 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 5 A | 9A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWSA0618S-6R8MTFIXED IND 6.8UH 3A 110 MOHM SMD |
1,125 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 3 A | 4.5A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
MWSA0603S-R22MTFIXED IND 220NH 24A 3 MOHM SMD |
1,109 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 220 nH | ±20% | 24 A | 34A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWLA0603S-2R2MTFIXED IND 2.2UH 20MOHM 14000MA |
1,058 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP4018FA-1R2MFIXED IND SMD |
1,036 |
|
规格书 |
SRP4018FA | Nonstandard | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
MPXV1D0520LR68FIXED IND 680NH 9.5A 12.2MOHM SM |
1,000 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 9.5 A | 11A | Shielded | 12.2mOhm Max | - | 74MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MPXV1D0520LR22FIXED IND 220NH 15A 5 MOHM SMD |
980 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 15 A | 19A | Shielded | 5mOhm Max | - | 150MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MWLA0603S-1R5MTFIXED IND 1.5UH 15MOHM 18000MA |
975 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWSA0603S-1R5MTB01FIXED IND 1.5UH 12A 12.1MOHM SMD |
964 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 12 A | 12A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MPXV1D0520LR33FIXED IND 330NH 13.4A 6.2MOHM SM |
948 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 13.4 A | 16A | Shielded | 6.2mOhm Max | - | 110MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MWSA0603S-330MTB01FIXED IND 33UH 2A 270 MOHM SMD |
943 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | 2 A | 2.5A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MPXV1D0520LR15FIXED IND 150NH 16.9A 3.9MOHM SM |
925 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 16.9 A | 22A | Shielded | 3.9mOhm Max | - | 190MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|

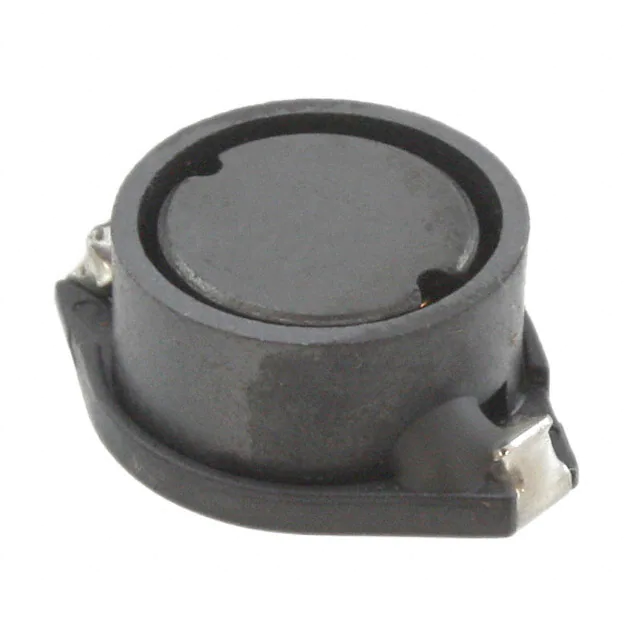

SRR1806-100MFIXED IND 10UH 4A 33 MOHM SMD |
868 |
|
规格书 |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 8.2A | Shielded | 33mOhm | 56 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
IMC1812ER221KFIXED IND 220UH 100MA 10 OHM SMD |
814 |
|
规格书 |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
MPXV1D0530LR15FIXED IND 150NH 22A 2.8 MOHM SMD |
807 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 22 A | 21A | Shielded | 2.8mOhm Max | - | 180MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

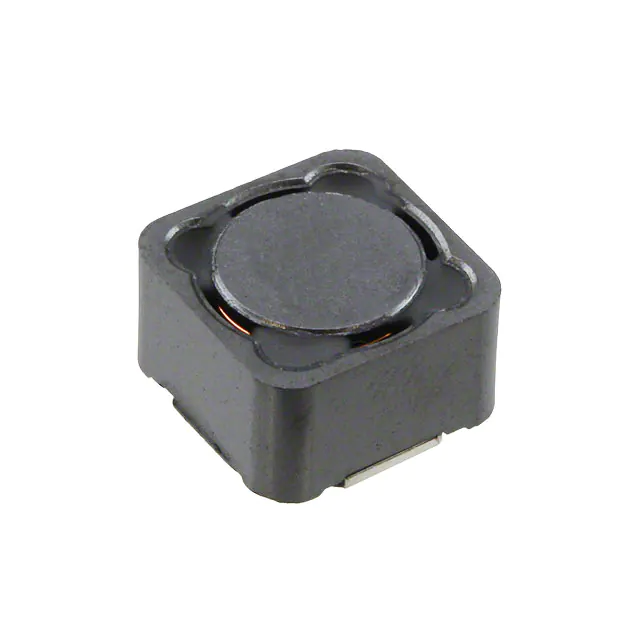

PM127SH-270M-RCFIXED IND 27UH 3.9A 52 MOHM SMD |
800 |
|
规格书 |
PM127SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.9 A | 3.7A | Shielded | 52mOhm Max | 26 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
