在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA1205S-150MTFIXED IND 15UH 8A 30 MOHM SMD |
461 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 15 µH | ±20% | 8 A | 10A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|

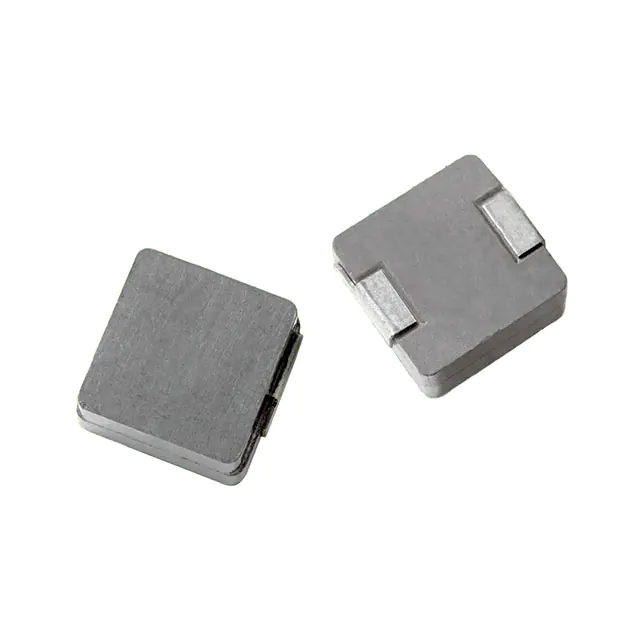

IHLP5050FDERR47M8AIHLP-5050FD-8A .47 20% ER E3 |
455 |
|
规格书 |
IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 54 A | 42A | Shielded | 1.16mOhm Max | - | 65.6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
MWSA1265S-5R6MTFIXED IND 5.6UH 10.5 MOHM SMD |
350 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 5.6 µH | ±20% | - | - | Shielded | 10.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
B82476B1473M100FIXED IND 47UH 1.95A 120MOHM SMD |
222 |
|
规格书 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.95 A | 1.6A | Unshielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
SPM4012T-4R7M-LRFIXED IND 4.7UH 1.7A 196.7 MOHM |
211 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.7 A | 3.3A | Shielded | 196.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
74404052012FIXED IND 1.2UH 3.6A 23.4MOHM SM |
7,439 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 3.6 A | 5.2A | Shielded | 23.4mOhm | - | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
74404063012FIXED IND 1.2UH 6.2A 11 MOHM SMD |
3,761 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±30% | 4.7 A | 7.3A | Shielded | 11mOhm | - | 106MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
SPM3020T-R47M-LRFIXED IND 470NH 4.8A 22.7MOHM SM |
3,320 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.8 A | 9A | Shielded | 22.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.079" (2.00mm) |
|
|
744040630082FIXED IND 820NH 6A 10 MOHM SMD |
3,240 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 6 A | 9.5A | Shielded | 10mOhm | - | 144MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

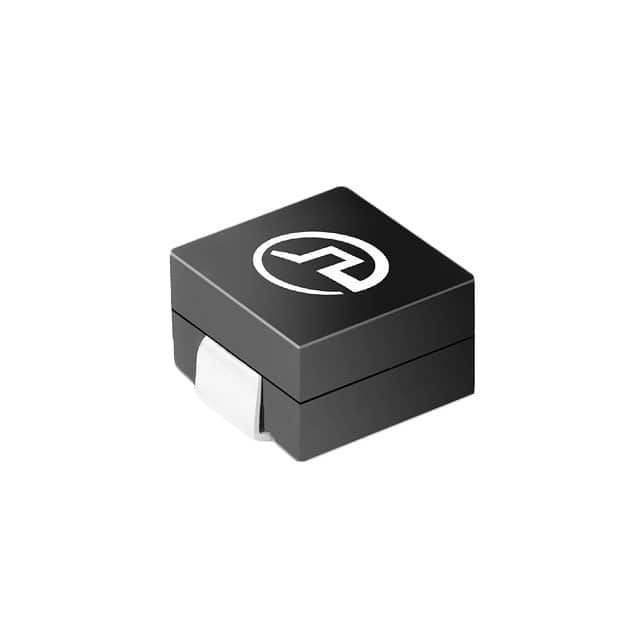

PA3790.221HLFIXED IND 220NH 55A 0.29MOHM SMD |
2,340 |
|
规格书 |
PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 220 nH | ±15% | 55 A | 63A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
NS12555T220MNVFIXED IND 22UH 3.81A 35.64 MOHM |
1,951 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.81 A | 3.2A | Shielded | 35.64mOhm Max | - | 13.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.230" (5.85mm) |
|
|
SPM3010T-4R7M-LRFIXED IND 4.7UH 1.4A 374.6 MOHM |
1,886 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.4 A | 1.8A | Shielded | 374.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.039" (1.00mm) |
|
74404084010FIXED IND 1UH 6.3A 8 MOHM SMD |
1,824 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.3 A | 14.1A | Shielded | 8mOhm | - | 127MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
IHLP2020CZER2R2M51IHLP-2020CZ-51 2.2 20% ER E3 |
1,784 |
|
规格书 |
IHLP-2020CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 6.6 A | 6.3A | Shielded | 26mOhm Max | - | 39.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
744040640068FIXED IND 680NH 4.14A 10MOHM SMD |
1,496 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±30% | 7.2 A | 12A | Shielded | 10mOhm | - | 169MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SPM3010T-2R2M-LRFIXED IND 2.2UH 2A 166 MOHM SMD |
1,147 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2 A | 2.6A | Shielded | 166mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.039" (1.00mm) |
|
IMC1812ER6R8KFIXED IND 6.8UH 285MA 1.2OHM SMD |
990 |
|
规格书 |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±10% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 7.96MHz | 27MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
74404084015FIXED IND 1.5UH 5.65A 10MOHM SMD |
923 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.65 A | 11.4A | Shielded | 10mOhm | - | 67MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

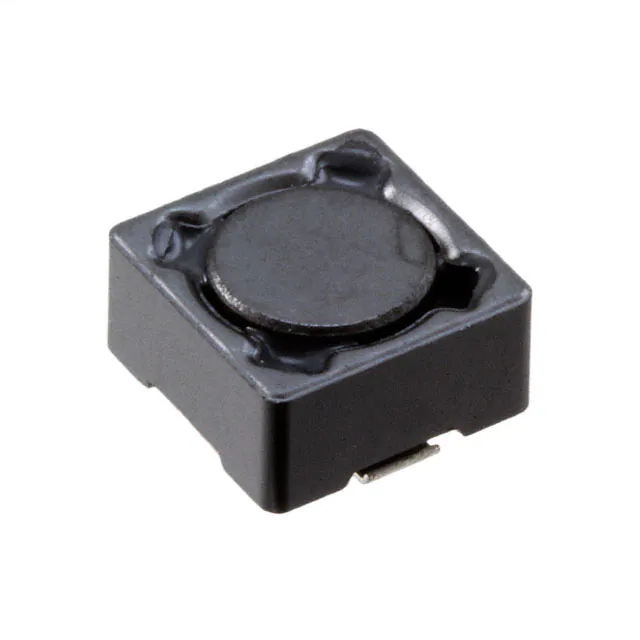

B82472G6152M000FIXED IND 1.5UH 3.4A 17 MOHM SMD |
757 |
|
规格书 |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.4 A | 3A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

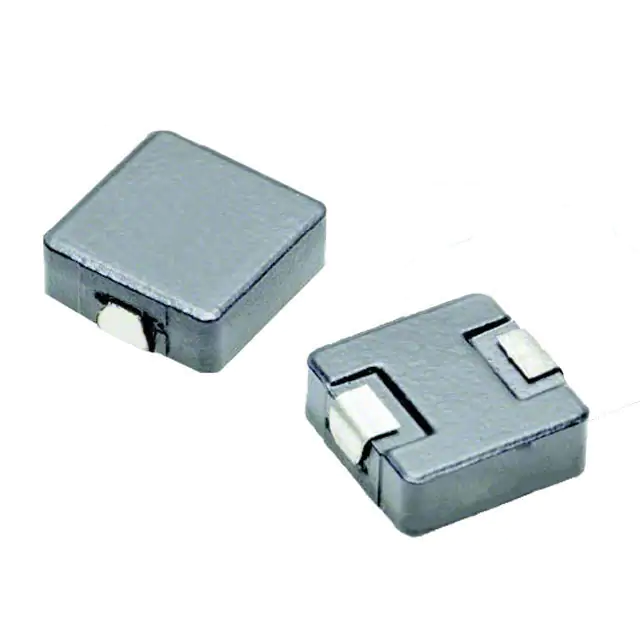

HCMA1305-330-RFIXED IND 33UH 5.2A 85.5MOHM SMD |
365 |
|
规格书 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 5.2 A | 8A | Shielded | 85.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
