在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D0624LR15FIXED IND 150NH 23.2A 2.3MOHM SM |
950 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 23.2 A | 37A | Shielded | 2.3mOhm Max | - | 130MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624L2R2FIXED IND 2.2UH 6.3A 30.7MOHM SM |
910 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 6.3 A | 9A | Shielded | 30.7mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0624L3R3FIXED IND 3.3UH 6A 33.8 MOHM SMD |
892 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 6 A | 8A | Shielded | 33.8mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
SPM6530T-6R8M-HZFIXED IND 6.8UH 4.8A 59.95 MOHM |
879 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 4.8 A | 3.6A | Shielded | 59.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPXV1D0618L1R0FIXED IND 1UH 7.1A 19.3 MOHM SMD |
877 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 7.1 A | 11A | Shielded | 19.3mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
IHLP2020BZER100M51IHLP-2020BZ-51 10 20% ER E3 |
862 |
|
规格书 |
IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 2.5 A | 2.13A | Shielded | 193.7mOhm Max | - | 17.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
B82462A4103M000FIXED IND 10UH 1.15A 140MOHM SMD |
797 |
|
规格书 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.15 A | 1.8A | Unshielded | 140mOhm Max | - | 32MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
EXLA1V0705-3R3-RIND MOLDED SHLD 3.3UH 10.0A |
790 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.44mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

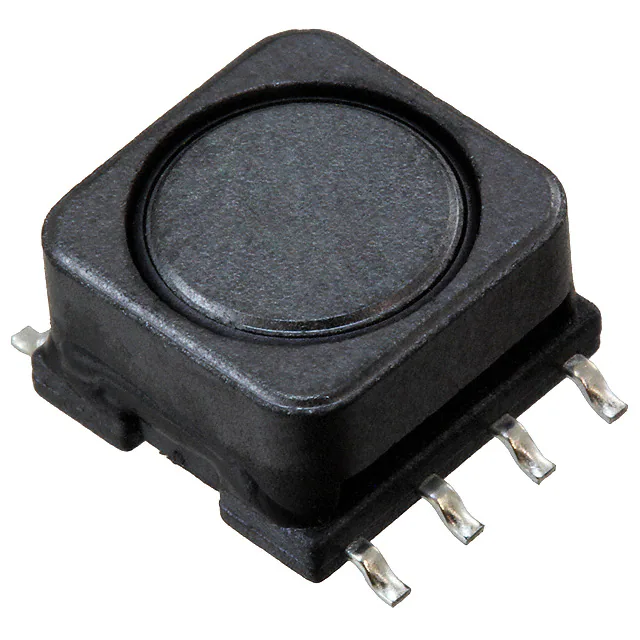

SRR0906-822YLFIXED IND 8.2MH 80MA 31 OHM SMD |
780 |
|
规格书 |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±15% | 80 mA | 90mA | Shielded | 31Ohm Max | 100 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
|
EXLA1V0705-5R6-RIND MOLDED SHLD 5.6UH 7.0A |
777 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 10 A | 11A | Shielded | 17.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

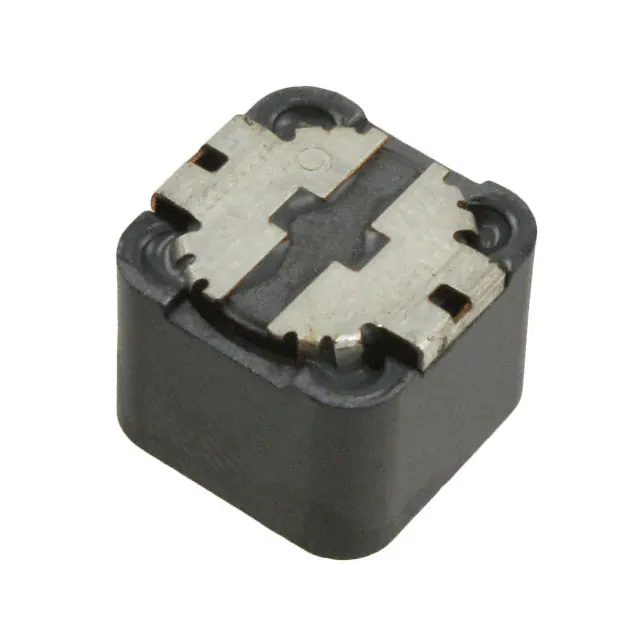

SRR1210-5R6YFIXED IND 5.6UH 8A 14 MOHM SMD |
758 |
|
规格书 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 8 A | 8.5A | Shielded | 14mOhm Max | 12 @ 7.96MHz | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

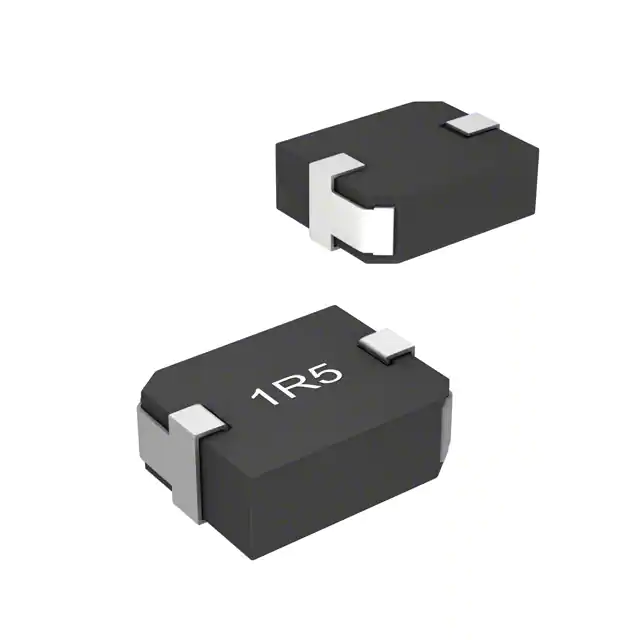

SRP7030-R15MFIXED IND 150NH 26A 0.0025OHM SM |
750 |
|
规格书 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±20% | 26 A | 38A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
EXLA1V0705-2R2-RIND MOLDED SHLD 2.2UH 11.0A |
680 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 14 A | 17A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
|
SRR1210-271MFIXED IND 270UH 1.5A 410MOHM SMD |
611 |
|
规格书 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 1.5 A | 1.3A | Shielded | 410mOhm Max | 16 @ 796kHz | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

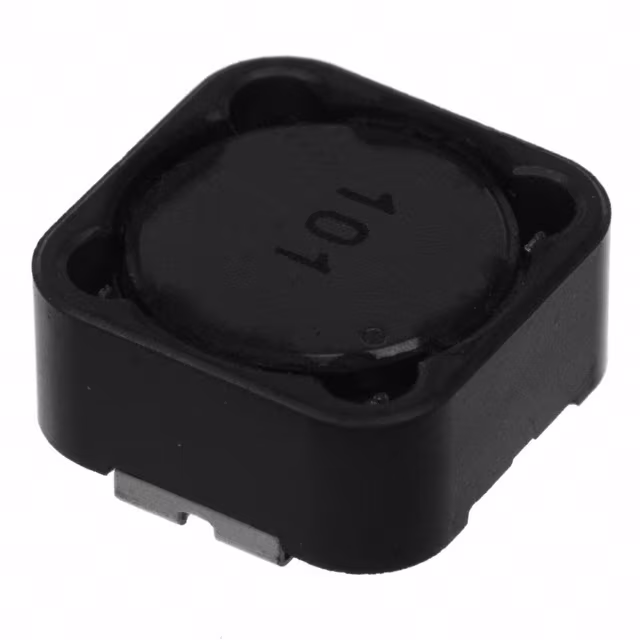

CDRH125/LDNP-101MCFIXED IND 100UH 1.6A 187MOHM SMD |
551 |
|
规格书 |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.6 A | - | Shielded | 187mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
SRR1210-561MFIXED IND 560UH 1.1A 900MOHM SMD |
550 |
|
规格书 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 1.1 A | 950mA | Shielded | 900mOhm Max | 12 @ 796kHz | 850kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
SRR1210-4R7YFIXED IND 4.7UH 8.5A 12 MOHM SMD |
506 |
|
规格书 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 8.5 A | 9.6A | Shielded | 12mOhm Max | 8 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
MPXV1D0624L1R5FIXED IND 1.5UH 8.1A 18.5MOHM SM |
360 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 8.1 A | 10A | Shielded | 18.5mOhm Max | - | 43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
CDRH124NP-220MCFIXED IND 22UH 2.9A 66 MOHM SMD |
324 |
|
规格书 |
CDRH124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.9 A | - | Shielded | 66mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|

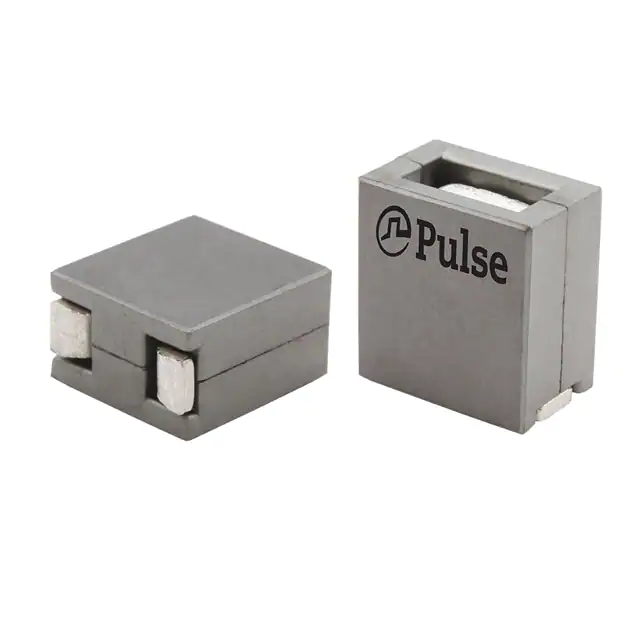

PA5034.471HLTIND PWR BEAD 470NH 40A SMD |
170 |
|
规格书 |
PA5034.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±15% | 30 A | 30A | Shielded | 0.4mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
