在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

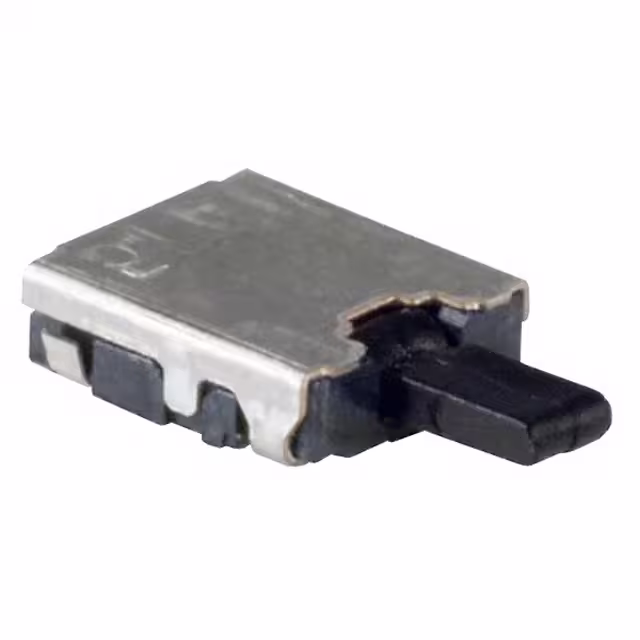

ESE-13H01ASWITCH DETECTOR SPST-NO 0.01A 5V |
4,223 |
|
规格书 |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

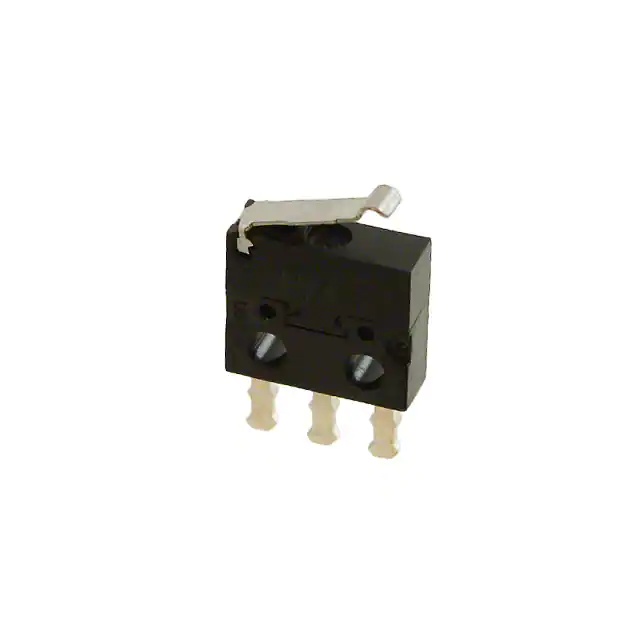

AV4044SWITCH SNAP ACTION SPDT 0.5A 30V |
3,755 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 29gf | - | 0.264" (6.7mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|

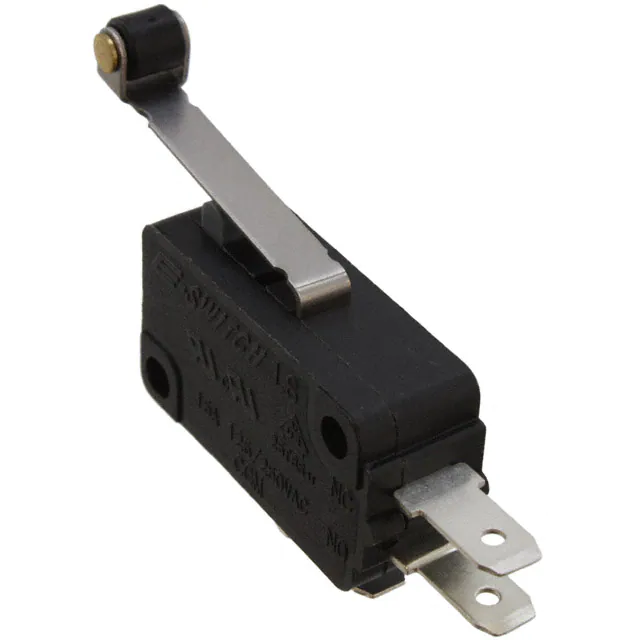

LS0851506F120C1ASWITCH SNAP ACTION SPDT 15A 125V |
1,109 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
|

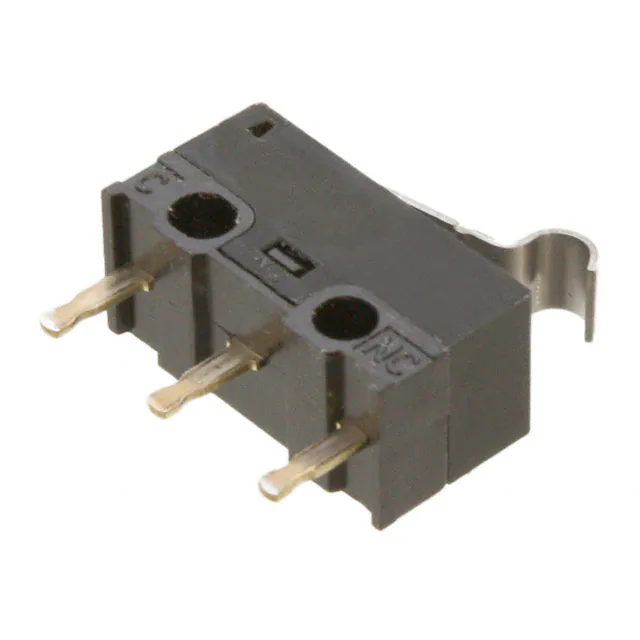

D2F-01FL3SWITCH SNAP ACTION SPDT 0.1A 30V |
1,281 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

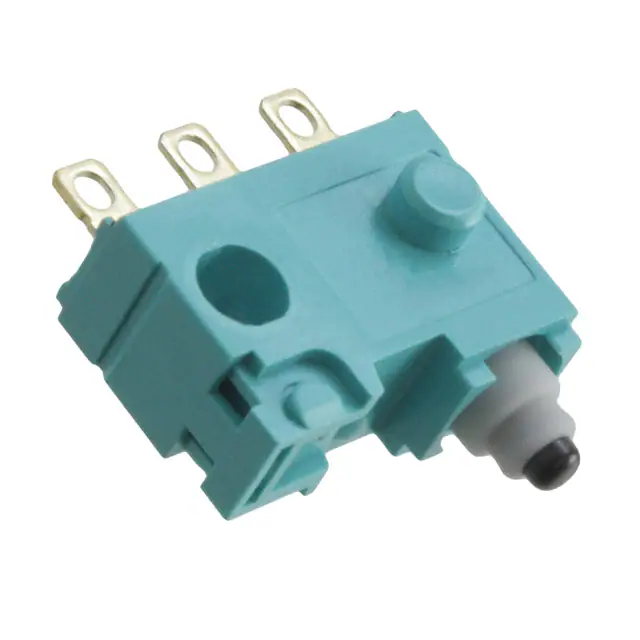

ASQ10410SWITCH SNAP ACTION SPDT 0.1A 30V |
2,077 |
|
规格书 |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|

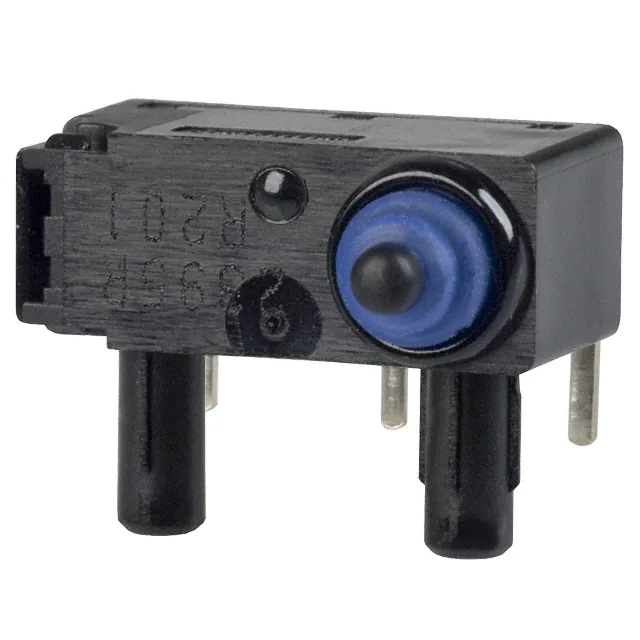

D2HW-BR201DRSWITCH SNAP ACT SPDT 0.1A 125V |
1,545 |
|
规格书 |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
D2MQ-4L-105-1SWITCH SNAP ACT SPDT 0.05A 30V |
4,491 |
|
规格书 |
D2MQ | Tray | Active | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 40gf | 4.079gf | 0.280" (7.1mm) | 0.083" (2.1mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|

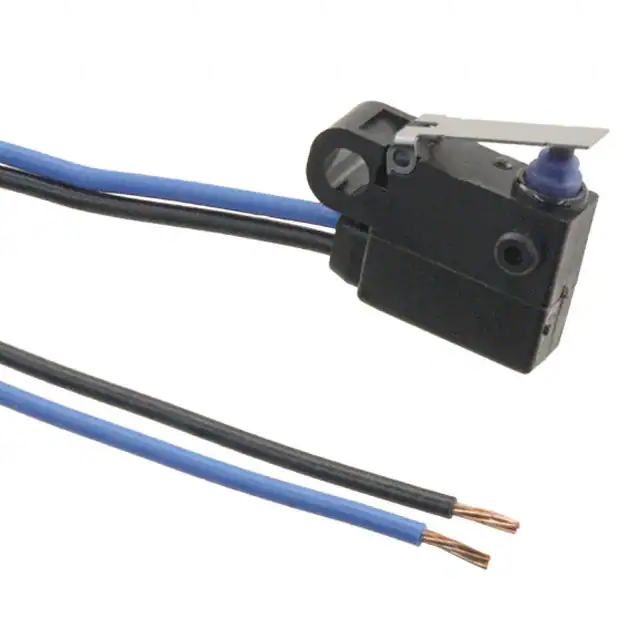

D2HW-C213MRSWITCH SNP ACT SPST-NO 0.1A 125V |
4,823 |
|
规格书 |
D2HW | Tray | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2SW-3L2-3MSSWITCH SNAP ACT SPST-NO 3A 125V |
1,447 |
|
规格书 |
D2SW | Bulk | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
D2HW-C223MRSWITCH SNP ACT SPST-NO 0.1A 125V |
1,643 |
|
规格书 |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|

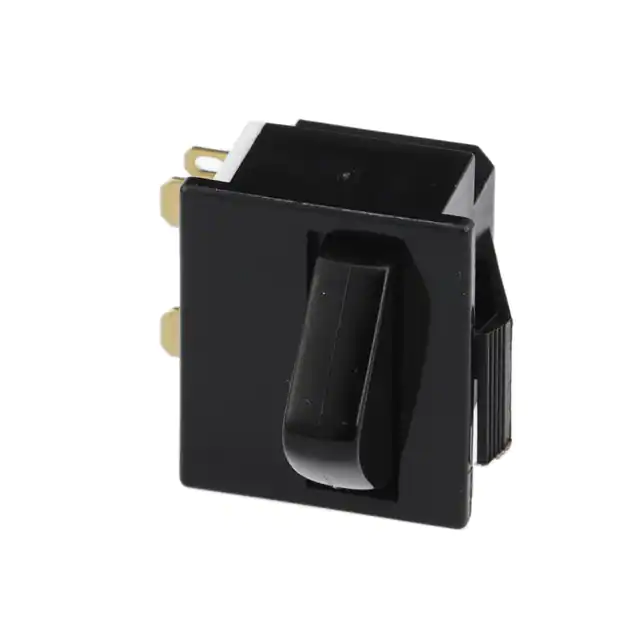

HK3141BABBSWITCH DETECTOR DPDT 5A 250V |
4,746 |
|
规格书 |
3140 | Bulk | Active | DPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.110"/0.187" | Splash Proof | - | - | - | - | - | - | - | - |
|

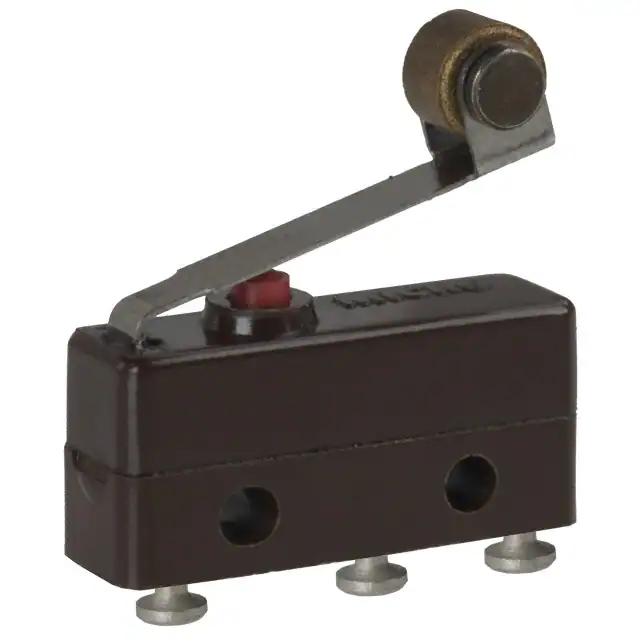

111SM2-TSWITCH SNAP ACTION SPDT 5A 250V |
1,801 |
|
规格书 |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 198gf | 57gf | 0.562" (14.3mm) | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|

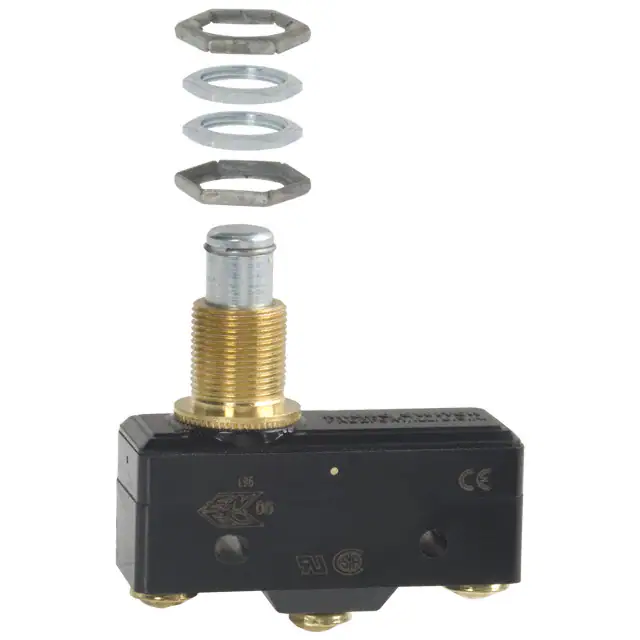

BZ-2RQ1-A2SWITCH SNAP ACTION SPDT 15A 125V |
1,769 |
|
规格书 |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

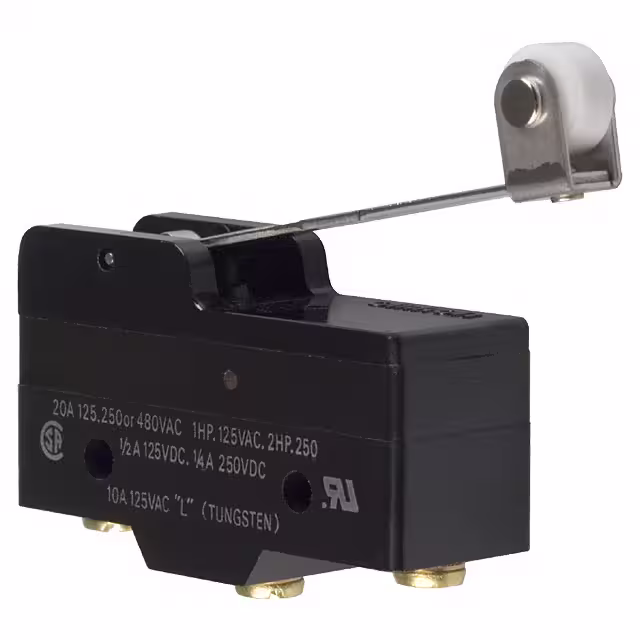

A-20GV2-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
2,443 |
|
规格书 |
A | Tray | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 90gf | 14gf | 1.188" (30.2mm) | 0.472" (12.0mm) | 0.086" (2.2mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|

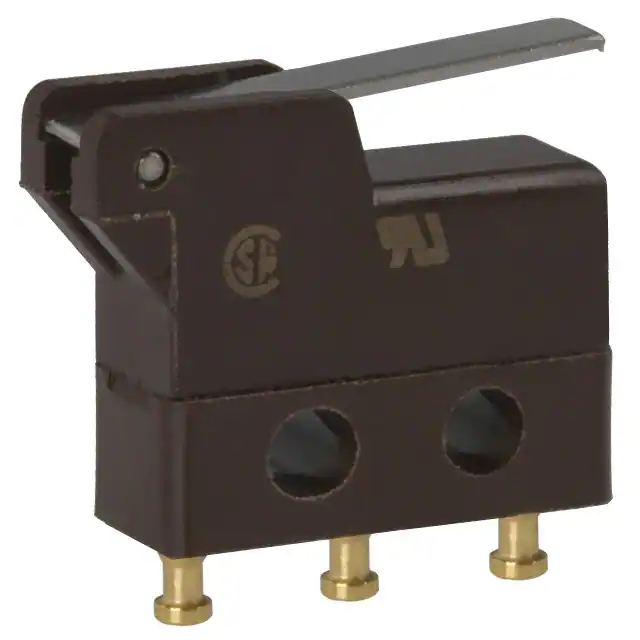

311SX1-TSWITCH SNAP ACTION SPDT 5A 125V |
1,960 |
|
规格书 |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 50gf | 9.177gf | 0.332" (8.43mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.014" (0.35mm) | -55°C ~ 125°C |
|

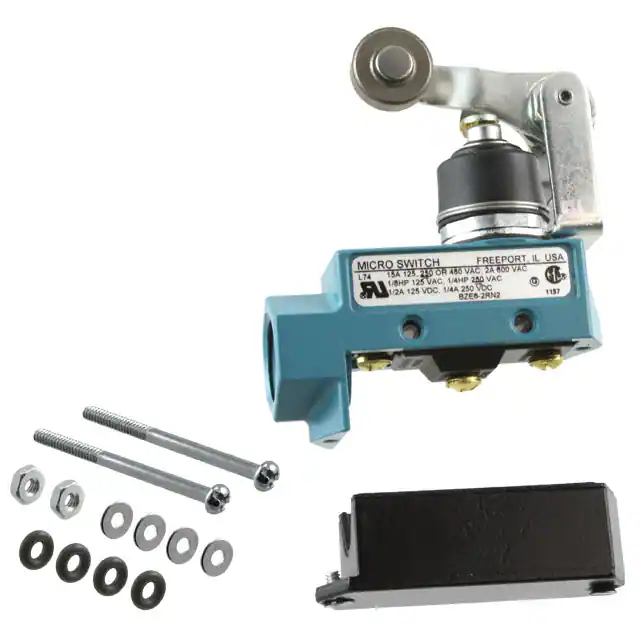

BZE6-2RN2SWITCH SNAP ACTION SPDT 15A 125V |
1,906 |
|
规格书 |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 283 ~ 567gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

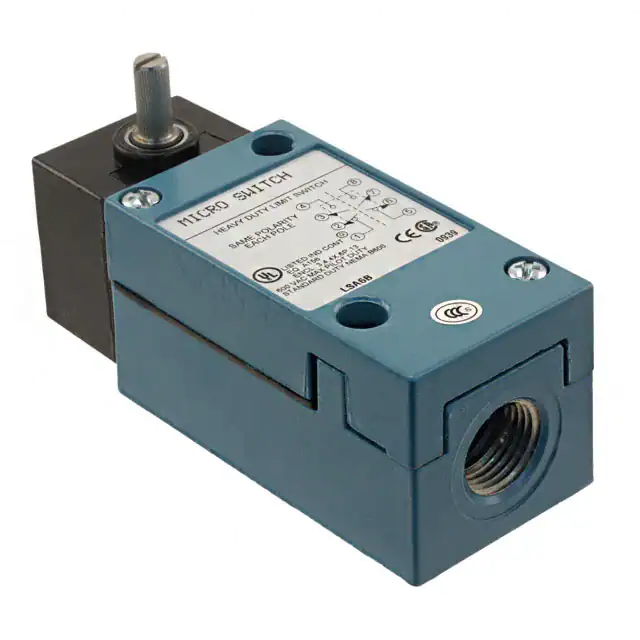

LSA6BSWITCH SNAP ACTION DPDT 10A 120V |
1,203 |
|
规格书 |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
DTE6-2RQ9SWITCH SNAP ACTION DPDT 10A 125V |
3,296 |
|
规格书 |
E6 | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | IP40 | - | 680 ~ 1361gf | 227gf | 1.953" (49.6mm) | 0.140" (3.6mm) | 0.060" (1.5mm) | 0.125" (3.2mm) | -32°C ~ 71°C |
|

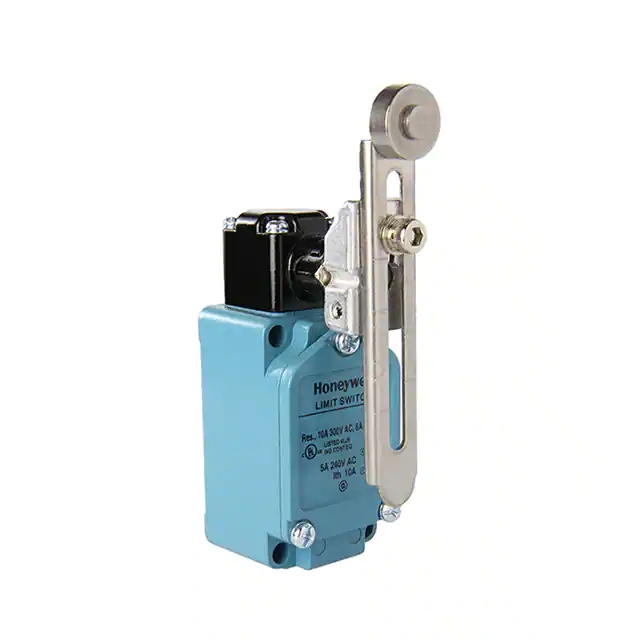

SZL-WLC-B-NSWITCH SNAP ACTION SPDT 10A 125V |
3,874 |
|
规格书 |
SZL-WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 34gfm | - | 30° | 30° | 16° | 60° | -10°C ~ 80°C |
|
OPD-ARSWITCH SNAP ACTION DPDT 10A 125V |
4,480 |
|
规格书 |
OP | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 227 ~ 680gf | 113 ~ 340gf | - | 0.250" (6.35mm) | 0.110" (2.8mm) | 25° | - |
