在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

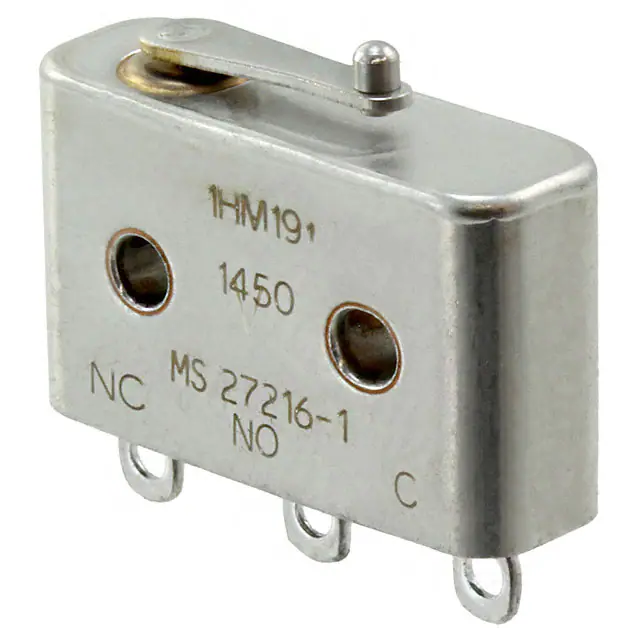

1HM19SWITCH SNAP ACTION SPDT 4A 115V |
1,028 |
|
规格书 |
HM | Bulk | Active | SPDT | On-Mom | 4A (AC/DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Solder Lug | - | Sealed - Hermetically | 198gf | 28gf | - | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 121°C |
|

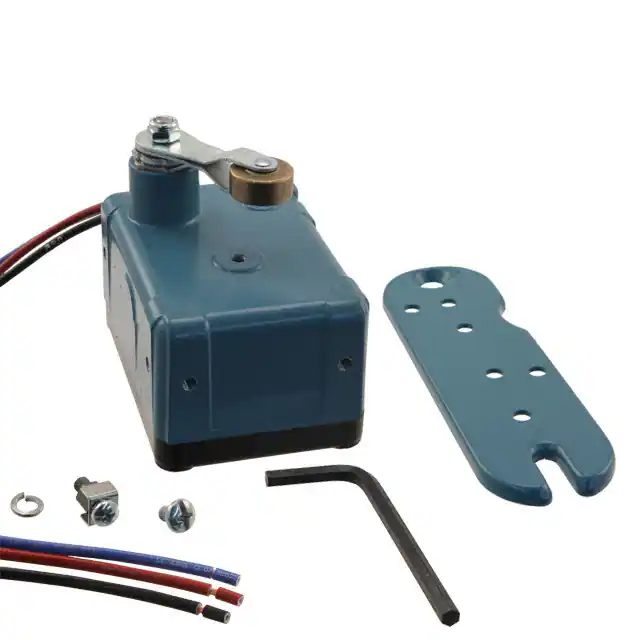

EX-XR3SWITCH SNAP ACTION SPDT 15A 125V |
1,778 |
|
规格书 |
EX | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Wire Leads | - | Explosion Proof | 340gf | 340gf | - | 0.219" (5.6mm) | - | 90° | - |
|

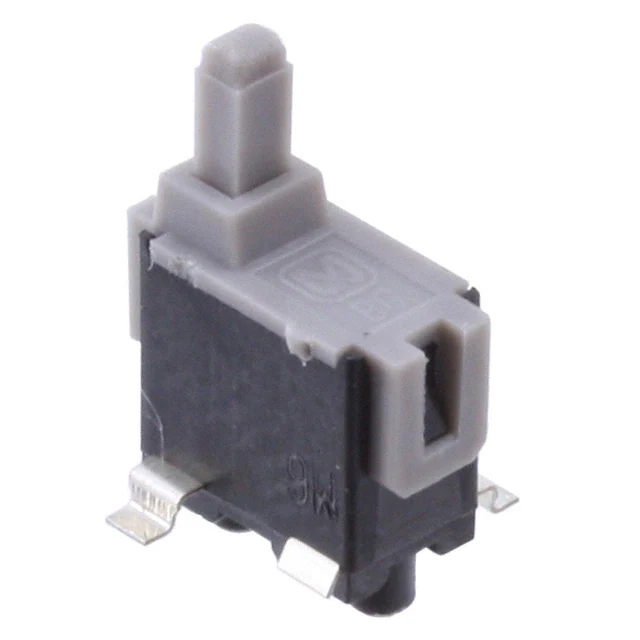

ESE-11MV1SWITCH DETECTOR SPST-NO 0.01A 5V |
4,320 |
|
规格书 |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 35gf | - | 0.305" (7.75mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH57SWITCH DETECTOR SPST-NO 0.01A 5V |
2,452 |
|
规格书 |
ESE22 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | Solder Lug | - | - | 28gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13V05DSWITCH DETECTOR SPST-NO 0.01A 5V |
1,928 |
|
规格书 |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|

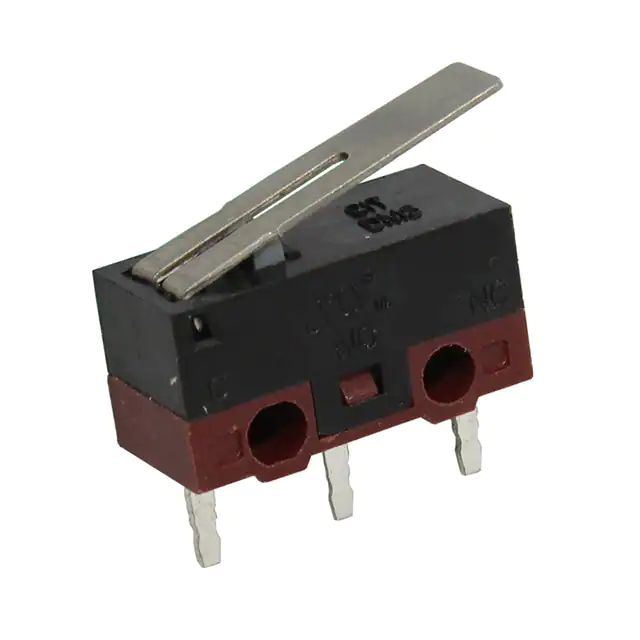

DM3CQF1003L01SWITCH LIMIT SPDT 3A 125V |
1,284 |
|
规格书 |
DM3 | Bag | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 35gf | 15gf | 0.281" (7.15mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|

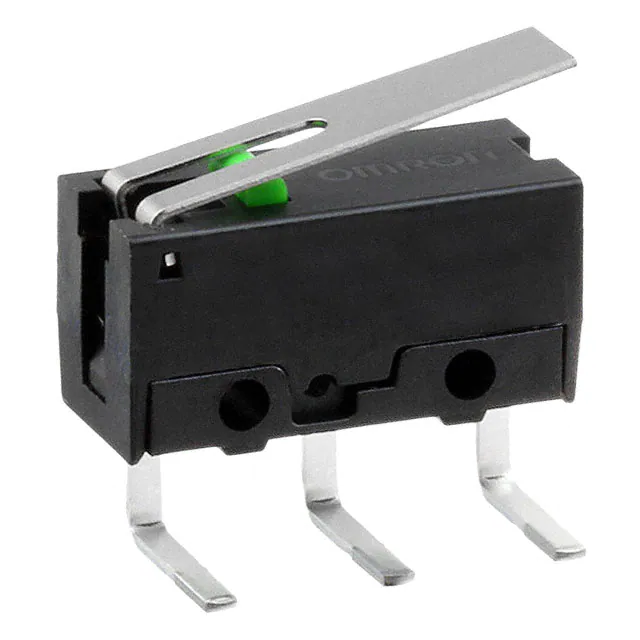

D2FS-FL-N-A1SWITCH SNAP ACT SPST-NO 0.1A 6V |
3,635 |
|
规格书 |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 25gf | 2.039gf | 0.328" (8.3mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -20°C ~ 70°C |
|

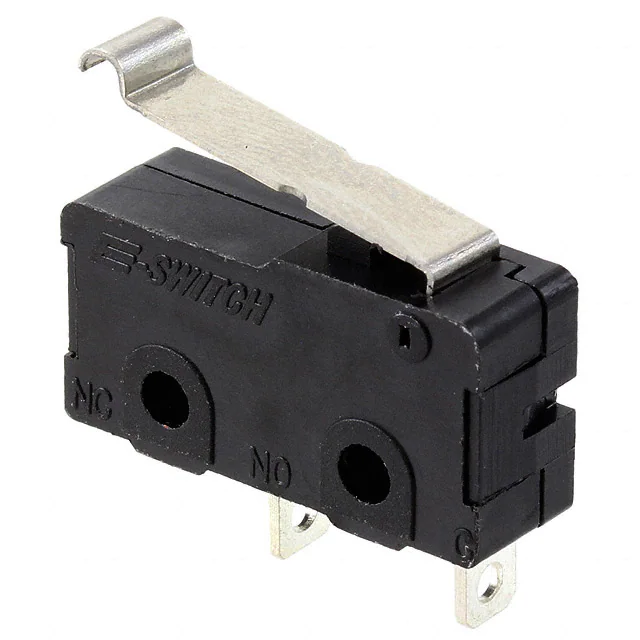

MS0850504F035S1CSWITCH SNAP ACT SPST-NO 5A 125V |
1,324 |
|
规格书 |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

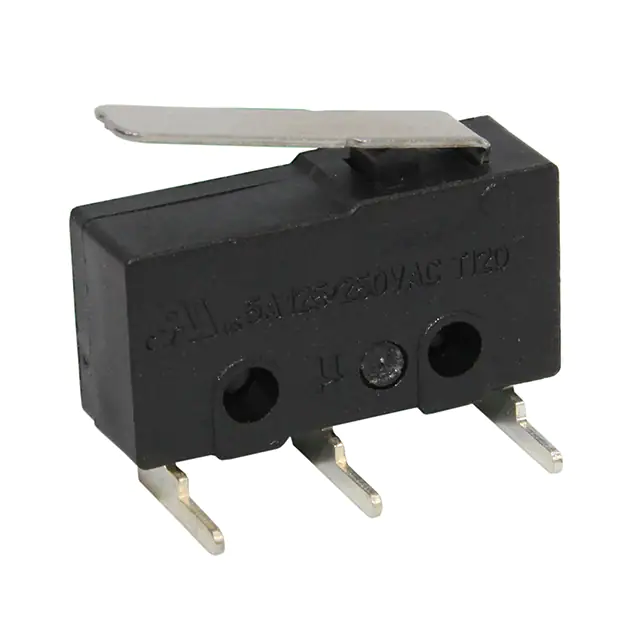

SM3CQF0805L01SWITCH LIMIT SPDT 5A 125V |
2,715 |
|
规格书 |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | 10gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|

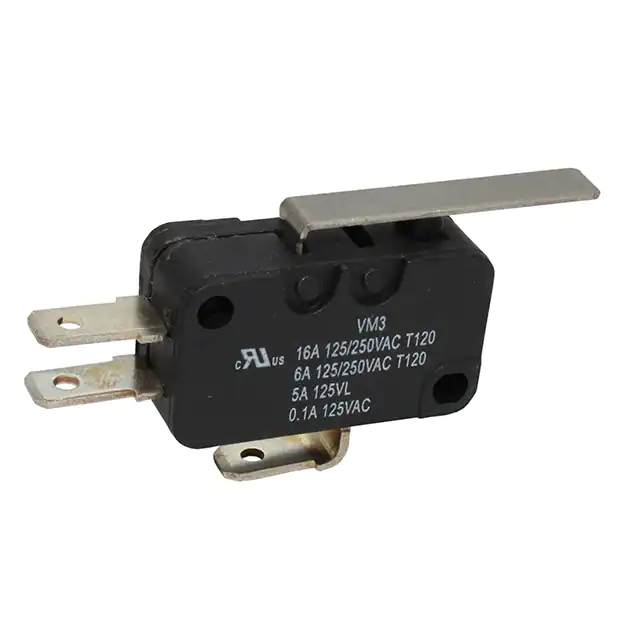

VM3AQF1802L03SWITCH LIMIT SPST-NO 16A 125V |
3,919 |
|
规格书 |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 70gf | 50gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|

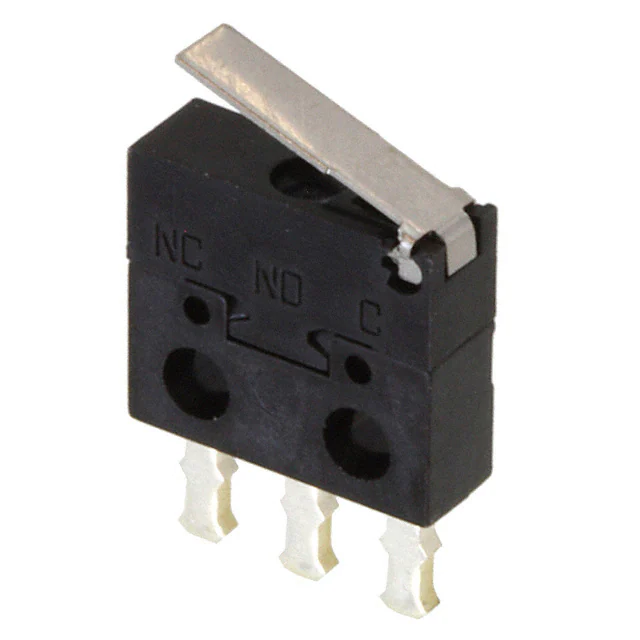

AV4024SWITCH SNAP ACTION SPDT 0.5A 30V |
4,602 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | - | 0.250" (6.4mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|

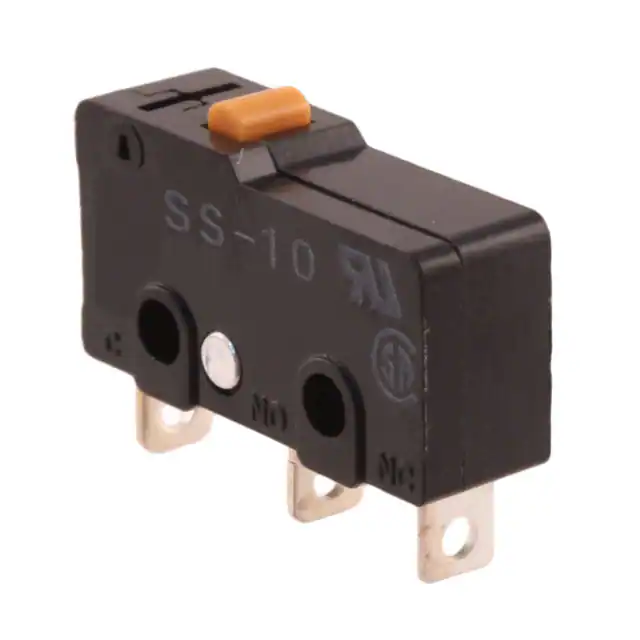

SS-10SWITCH SNAP ACTION SPDT 10A 250V |
1,725 |
|
规格书 |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

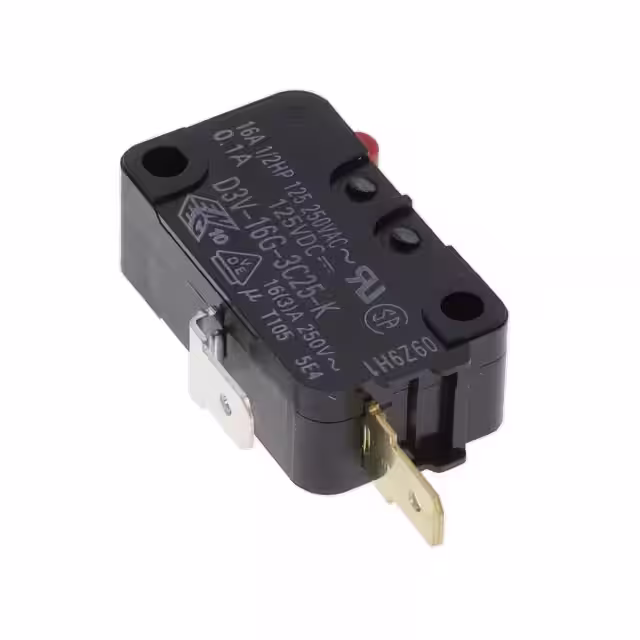

D3V-16G-3C25-KSWITCH SNAP ACT SPST-NO 16A 250V |
1,867 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
V-16-3C6(R)SWITCH SNAP ACT SPST-NO 16A 250V |
2,529 |
|
规格书 |
V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

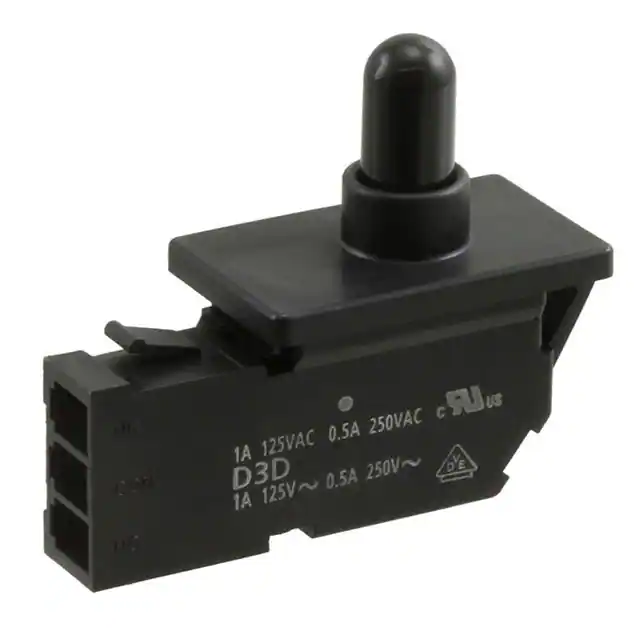

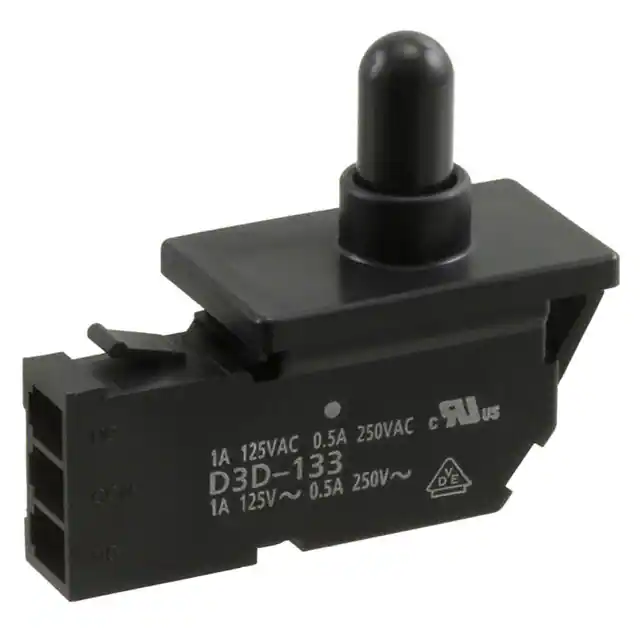

D3D-133SWITCH SNAP ACT SPST-NO 1A 125V |
2,044 |
|
规格书 |
D3D | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Panel Mount, Snap-In | Connector | IP00 | Black Actuator | 204gf | - | 0.472" (12.0mm) | - | - | - | -30°C ~ 60°C |
|
D3V-162-1C5SWITCH SNAP ACTION SPDT 16A 250V |
1,634 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3D-113SWITCH SNAP ACTION SPDT 1A 125V |
1,037 |
|
规格书 |
D3D | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Overtravel Plunger | Panel Mount, Snap-In | Connector | IP00 | Black Actuator | 204gf | - | 0.512" (13.0mm) | - | - | - | -30°C ~ 60°C |
.jpg)
|
D3V-6-1C24SWITCH SNAP ACTION SPDT 6A 250V |
3,283 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

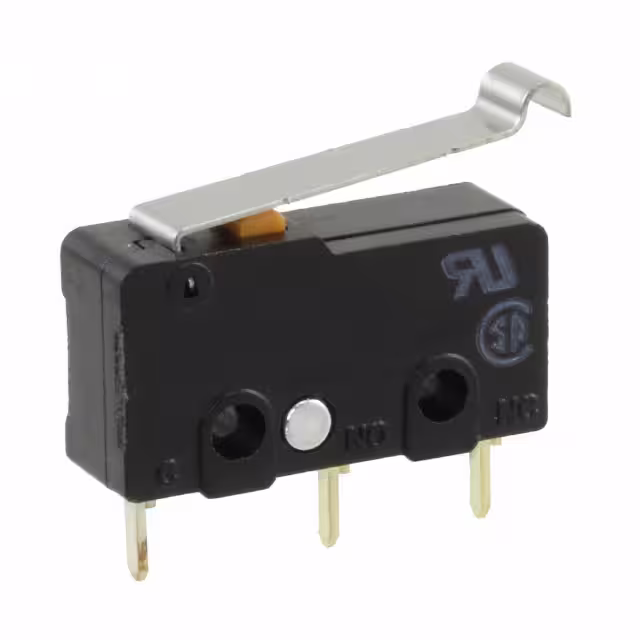

SS-5GL13-FDSWITCH SNAP ACTION SPDT 5A 125V |
3,192 |
|
规格书 |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

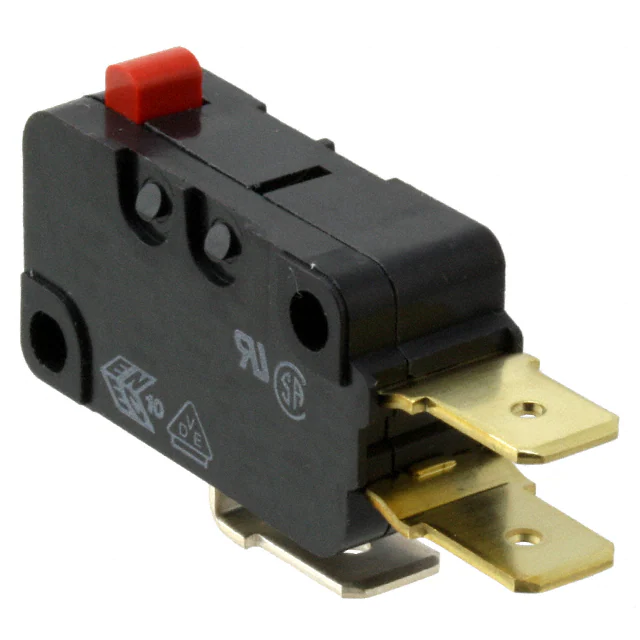

D3V-16-1C5SWITCH SNAP ACTION SPDT 16A 250V |
2,754 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
