在线询价限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

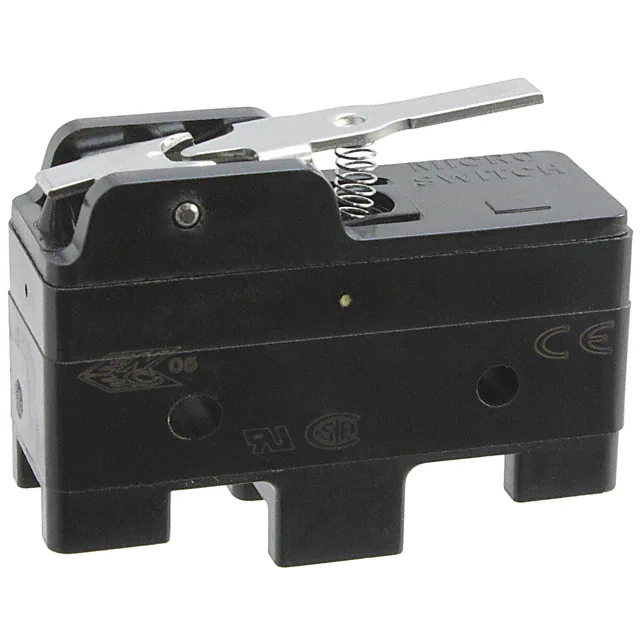

BZ-2RW876-PC2SWITCH SNAP ACTION SPDT 15A 125V |
2,824 |
|
规格书 |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 0.750" (19.1mm) | - | 0.025" (0.6mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

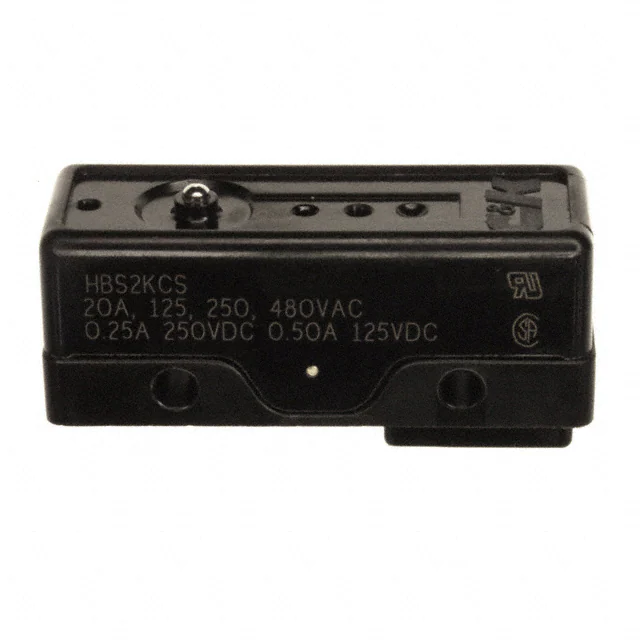

HBS2KCB4SP011CSWITCH SNAP ACTION SPDT 20A 125V |
1,094 |
|
规格书 |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.625" (15.9mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 150°C |
|
83160029SWITCH SNAP ACTION SPDT 16A 250V |
4,000 |
|
规格书 |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 408gf | 102gf | - | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
41SM301-T2SWITCH SNAP ACTION SPDT 11A 250V |
3,719 |
|
规格书 |
SM | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
WZ-2R-A2SWITCH SNAP ACT SPST-NC 15A 125V |
1,593 |
|
规格书 |
WZ | Bulk | Obsolete | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
BA-2R24-A2SWITCH SNAP ACTION SPDT 20A 125V |
3,810 |
|
规格书 |
BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.010" (0.25mm) | -55°C ~ 121°C |
|
WA-2RV313-A22SWITCH SNAP ACT SPST-NC 20A 125V |
1,271 |
|
规格书 |
WA | Bulk | Obsolete | SPST-NC | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.710" (18.0mm) | - | 0.007" (0.18mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
83181073SWITCH SNAP ACTION SPDT 6A 250V |
1,924 |
|
规格书 |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 170gf | 54gf | 0.472" (12.0mm) | - | 0.006" (0.15mm) | 0.035" (0.9mm) | -40°C ~ 105°C |
|
|
V15W-WZ200A02-AW1SWITCH SNAP ACT SPDT 100MA 125V |
4,809 |
|
规格书 |
V15W | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
MMGGD1P0LSWITCH SNAP ACTION SPDT 7A 250V |
1,275 |
|
规格书 |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 142gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 135°C |
|
|
BA-1RV54352411-A21SWITCH SNAP ACTION SPDT 15A 125V |
2,946 |
|
规格书 |
BA | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 40gf | 7.087gf | 0.750" (19.1mm) | - | 0.080" (2.0mm) | 0.065" (1.7mm) | -55°C ~ 121°C |
|
|
11SM712-H58SWITCH SNAP ACTION SPDT 5A 250V |
1,907 |
|
规格书 |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 56gf | 14gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
V7-1A27D8-636SWITCH SNAP ACT SPST-NO 5A 125V |
3,696 |
|
规格书 |
V7 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 11gf | - | 0.630" (16.0mm) | 0.051" (1.3mm) | 0.012" (0.3mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
|
83133045SWITCH SNAP ACTION SPDT 5A 125V |
3,761 |
|
规格书 |
83133 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | -20°C ~ 125°C |
|
|
1SX90-TSWITCH SNAP ACT SPST-NO 7A 250V |
2,719 |
|
规格书 |
SX | Bulk | Active | SPST-NO | Off-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | - | 0.320" (8.13mm) | - | - | - | -55°C ~ 125°C |
|
|
111SM601-H4SWITCH SNAP ACTION SPDT 5A 250V |
1,310 |
|
规格书 |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
|
BZ-2RW822111-A2BASIC SWITCH |
1,392 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

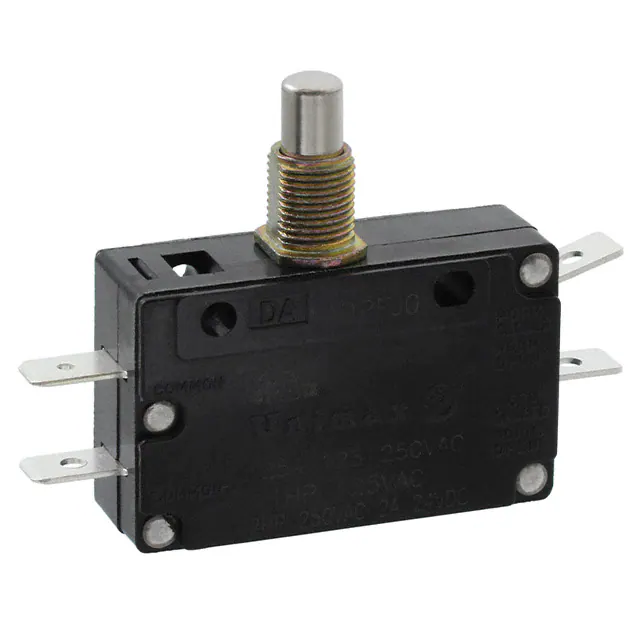

ADPFF3J04AWSWITCH SNAP ACT DPST-NC 25A 125V |
4,780 |
|
规格书 |
A | Tray | Active | DPST-NC | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1134gf | 170gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
BZ-2R21-A2SWITCH SNAP ACTION SPDT 10A 125V |
2,034 |
|
规格书 |
BZ | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 85 ~ 141gf | 71gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
BE-2R175-A41SWITCH BASIC LARGE |
4,994 |
|
规格书 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
