在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SAR90505RELAY REED SPST 500MA 5V |
1,950 |
|
规格书 |
S | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT71205URELAY REED SPST-NO 5KV 12V |
3,120 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71205URELAY REED SPST-NC 5KV12V |
1,486 |
|
规格书 |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72405URELAY REED SPST-NC 5KV 24V |
1,924 |
|
规格书 |
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT200-12RELAY REED SPST-NO 3A 12V |
4,580 |
|
规格书 |
D200 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 6 ms | 1 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBR70575URELAY REED SPST-NC 7.5KV 5V |
1,443 |
|
规格书 |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

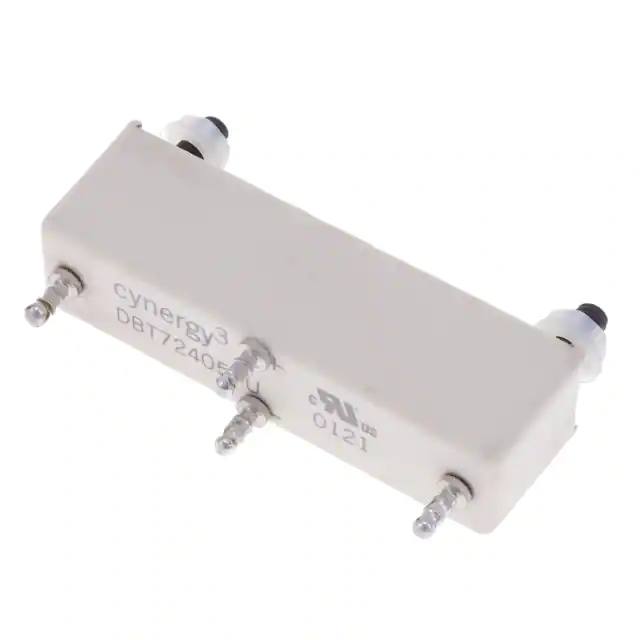

DBT72405PURELAY REED SPST-NC 5KV 24V |
3,748 |
|
规格书 |
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBR70510RELAY REED SPST-NC 3A 5V |
4,473 |
|
规格书 |
DB | Tray | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71210PRELAY REED SPST-NO 3A 12V |
3,967 |
|
规格书 |
DA | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71210F-HRRELAY REED SPST-NO 3A 12V |
1,038 |
|
规格书 |
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBT71210URELAY REED SPST-NC 2A 12V |
4,394 |
|
规格书 |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
3563-1231-244RELAY REED DIP SPDT .4A 24V W/DI |
3,489 |
|
规格书 |
3563 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
8L01-12-011RELAY REED SPST 500MA 12V |
1,772 |
|
规格书 |
8L | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|

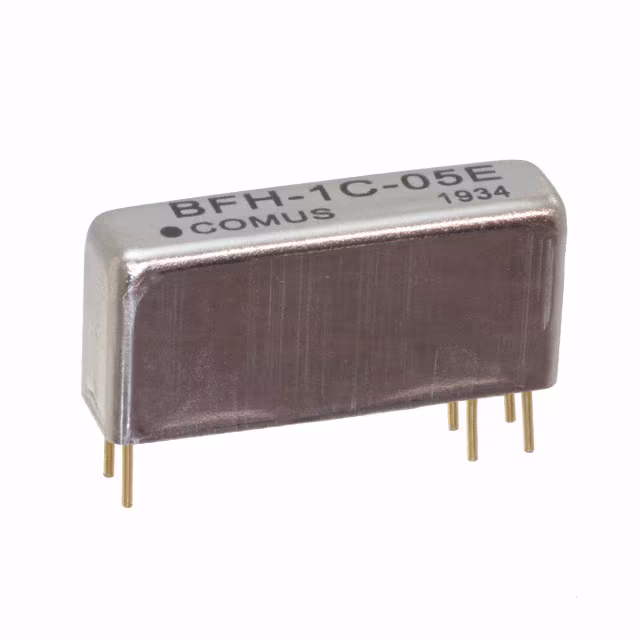

BFH-1C-05EREED RELAY SPDT .5A 5V |
1,786 |
|
规格书 |
BFH | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-1C-12REED RELAY SPDT .5A 12V |
1,817 |
|
规格书 |
BFH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
7102-05-1000RELAY REED DPST 500MA 5V |
3,932 |
|
规格书 |
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S8-0504URELAY REED SPST 1A 5V UL |
2,773 |
|
规格书 |
S8 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S2-05PURELAY REED SPST 700MA 5V UL |
1,749 |
|
规格书 |
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-12PURELAY REED SPST 700MA 12V UL |
4,378 |
|
规格书 |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-24PURELAY REED SPST 700MA 24V UL |
2,519 |
|
规格书 |
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
