在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAR71205TURELAY REED SPST-NO 5KV 12V |
2,942 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR70505PURELAY REED SPST-NO 5KV 5V |
4,121 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR71205SURELAY REED SPST-NO 5KV 12V |
1,276 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

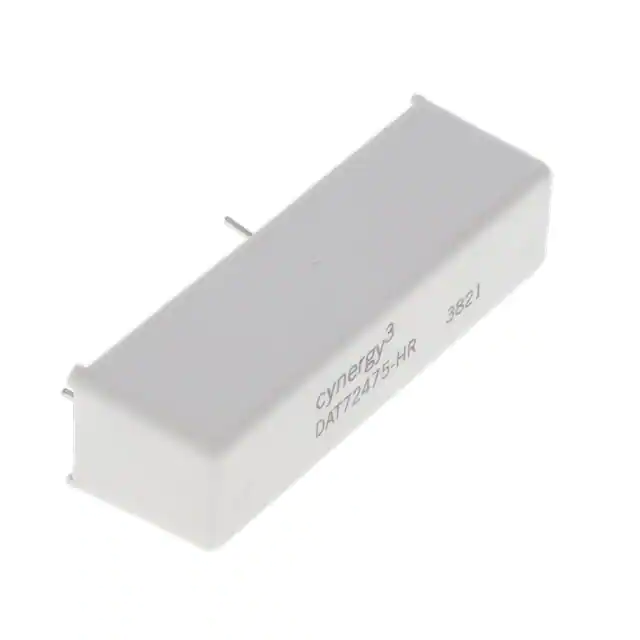

DAT72475-HRRELAY REED 7.5KV 24V SPST-NO |
3,256 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405F-HRRELAY REED 5KV 24V SPST-NO |
4,206 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAR71210URELAY REED SPST-NO 3A 12V |
1,587 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR70510URELAY REED SPST-NO 3A 5V |
3,525 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR70575-HRRELAY REED 7.5KV 5V SPST-NC |
4,000 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBT72405F-HRRELAY REED 5KV 24V SPST-NC |
4,429 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT70575FURELAY REED SPST-NO 7.5KV 5V |
3,153 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAR72410FRELAY REED SPST-NO 3A 24V |
4,101 |
|
规格书 |
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71210SRELAY REED SPST-NO 3A 12V |
3,678 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR70510PRELAY REED SPST-NO 3A 5V |
1,143 |
|
规格书 |
DA | Tray | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAT70510SRELAY REED SPST-NO 2A 5V |
3,431 |
|
规格书 |
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAR70510F-HRRELAY REED SPST-NO 3A 5V |
4,724 |
|
规格书 |
D-HR | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71210FRELAY REED SPST-NC 3A 12V |
2,107 |
|
规格书 |
DB | Tray | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR71210PRELAY REED SPST-NC 3A 12V |
1,884 |
|
规格书 |
DB | Tray | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT72410FURELAY REED SPST-NO 2A 24V |
1,387 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71210PRELAY REED SPST-NC 2A 12V |
1,306 |
|
规格书 |
DB | Bulk | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT71210FURELAY REED SPST-NC 2A 12V |
3,209 |
|
规格书 |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
