在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFM-1C-05CWRELAY REED SPDT .25A 5V |
2,595 |
|
规格书 |
BFM-CW | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
JWD-171-23RELAY REED DPST 500MA 12V |
1,282 |
|
规格书 |
JWD | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1C05C200V/1.0A REED RELAY, 1 FORM C, |
100 |
|
规格书 |
BFM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 22 mA | Non Latching | Coaxial Shield | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
|
BFM-1C12C200V/1.0A REED RELAY, 1 FORM C, |
3,401 |
|
规格书 |
BFM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 8 mA | Non Latching | Coaxial Shield | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
|
JWD-171-25RELAY REED DPST 500MA 5V |
3,050 |
|
规格书 |
JWD | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4312C011RELAY REED SPDT 250MA 12V |
3,844 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-2C12200V/0.5A REED RELAY, 2 FORM C, |
3,032 |
|
规格书 |
BFH | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C | - |
|
|
BFH-2A05W250V/1.5A HIGH TEMPERATURE REED |
1,754 |
|
规格书 |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C | - |
|
|
BU-1C056GHZ, 200V/0.2A HIGH FREQUENCE R |
4,210 |
|
规格书 |
BU | Tube | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 45.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.3 ms | 0.3 ms | -20°C ~ 85°C | - |
|
7201-05-1100RELAY REED SPST 1A 5V |
1,517 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 71.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|

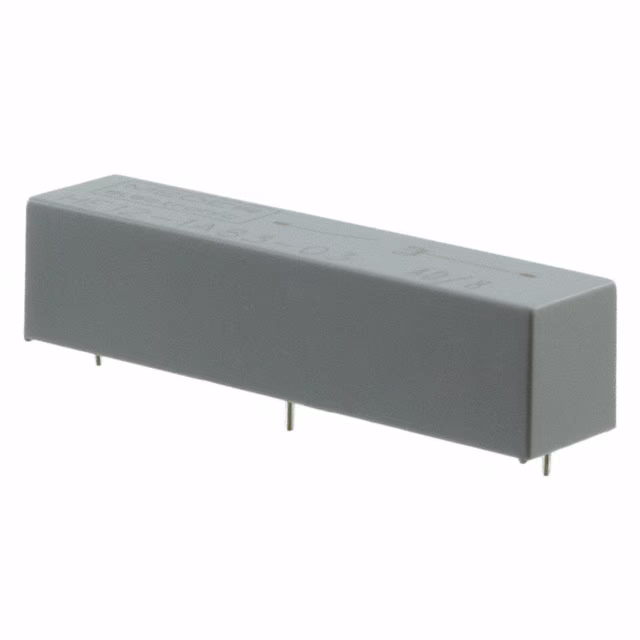

HE12-1A83-03RELAY REED SPST 3A 12V |
1,087 |
|
规格书 |
HE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
DAR70505FURELAY REED SPST-NO 5KV 5V |
3,545 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72405TURELAY REED SPST-NO 5KV 24V |
2,373 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAT70505TURELAY REED SPST-NO 5KV 5V |
3,333 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin, Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405TURELAY REED SPST-NO 5KV 24V |
4,546 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
V23100V6002A201RELAY REED DPST 750MA 12V |
3,731 |
|
规格书 |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 750 mA | 24VDC - Nom | 10.9 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|

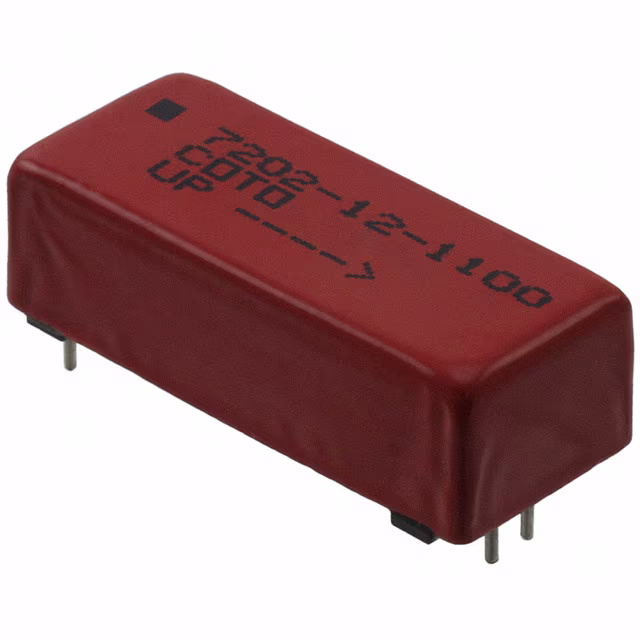

7202-12-1100RELAY REED DPST 1A 12V |
4,637 |
|
规格书 |
7000 | Tube | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
DAT71205FURELAY REED SPST-NO 5KV 12V |
2,099 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBR70505SURELAY REED SPST-NC 5KV 5V |
4,018 |
|
规格书 |
DB | Bulk | Active | Chassis Mount | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBR70505FURELAY REED SPST-NC 5KV 5V |
3,899 |
|
规格书 |
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
