在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D31A7110REED RELAY 1A/24V/DIODE |
2,950 |
|
规格书 |
- | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|

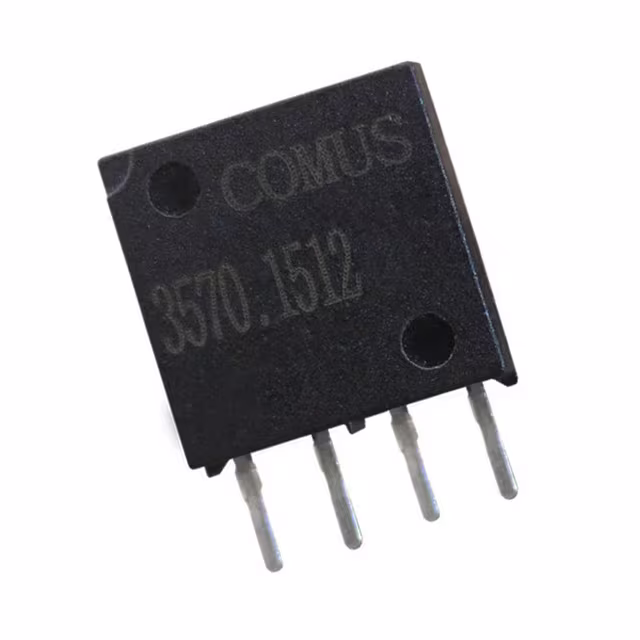

3570-1512-121RELAY REED SIP SPST .5A 12V |
1,901 |
|
规格书 |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
V23100V4512A010RELAY REED SPST 500MA 12V |
4,061 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
BFS-1A-05RELAY REED SPST .5A 5V |
2,455 |
|
规格书 |
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1A-12RELAY REED SPST .5A 12V |
3,095 |
|
规格书 |
BFS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
HE721B0510RELAY RED SPST-NC 500MA 5V |
3,111 |
|
规格书 |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
9001-05-12RELAY 9000S |
1,268 |
|
规格书 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JWS-117-8RELAY REED SPST 500MA 12V |
4,009 |
|
规格书 |
JWS | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 22.7 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWS-117-18RELAY REED SPST 500MA 12V |
3,241 |
|
规格书 |
JWS | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 6.5 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4005A011RELAY REED SPST 500MA 5V |
3,177 |
|
规格书 |
V23100-V4, AXICOM | Tube | Discontinued at Digi-Key | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
D71A2110REED RELAY 1A/5V/DIODE |
1,164 |
|
规格书 |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D51A3110REED RELAY 1A/5V/DIODE/2,5KV |
3,290 |
|
规格书 |
- | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | - | - | - | - | - | - |
|
9091-12-11RELAY REED SPST 500MA 12V |
3,958 |
|
规格书 |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
BFM-1A-05RELAY REED SPST .5A 5V |
4,921 |
|
规格书 |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-12RELAY REED SPST .5A 12V |
3,731 |
|
规格书 |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BU-1A056GHZ, 210V/1A HIGH FREQUENCE REE |
2,894 |
|
规格书 |
BU | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | - | - | Non Latching | - | Gull Wing | Sealed - Hermetically | - | - | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - | |
|
|
V23100V4012A010RELAY REED SPST 500MA 12V |
2,274 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
9401-05-20TRRELAY COTO STANDARD CD REV. 00 B |
1,692 |
|
规格书 |
9400 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | J Lead | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 400 µs | 200 µs | -20°C ~ 85°C | - |
|
|
9201-12-00RELAY REED SPST 500MA 12V |
4,639 |
|
规格书 |
9200 | Tube | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
SIL05-1A72-74LRELAY REED SPST 0.5A 5V |
1,117 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
