在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23100V4512A000RELAY REED SPST 500MA 12V |
3,441 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4505A010RELAY REED SPST 500MA 5V |
3,437 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4015A010RELAY REED SPST 500MA 15V |
1,861 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|

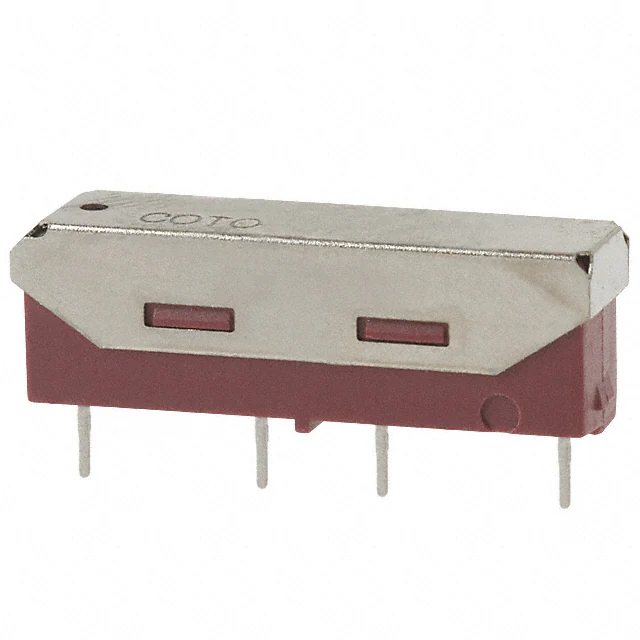

9104-12-40RELAY REED SPST 500MA 12V |
1,994 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
9104-05-40RELAY REED SPST 500MA 5V |
3,388 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | EMI Shielded | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
8L01-24-111RELAY REED SPST 500MA 24V |
1,960 |
|
规格书 |
8L | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
BFH-2A-05ERELAY REED DPST .5A 5V |
2,635 |
|
规格书 |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-2A-12ERELAY REED DPST .5A 12V |
2,297 |
|
规格书 |
BFH | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
D32A3100REED RELAY 2A/5V/COIL 200OHMS |
2,579 |
|
规格书 |
- | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
V23100V4524A010RELAY REED |
1,004 |
|
规格书 |
V23100-V4, AXICOM | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | - | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | - |
|
BFM-1A-05ERELAY REED SPST .5A 5V |
2,389 |
|
规格书 |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-05CWRELAY REED SPST .5A 5V |
4,286 |
|
规格书 |
BFM-CW | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
9104-05-41RELAY REED SPST 500MA 5V |
1,416 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | Diode, EMI Shielded | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
BE05-1A85-MHIGH VOLTAGE REED RELAY, FORM 1A |
1,222 |
|
规格书 |
BE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
|
|
BFH-2A-05CRELAY REED DPST .5A 5V |
4,863 |
|
规格书 |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-2A-12CRELAY REED DPST .5A 12V |
3,650 |
|
规格书 |
BFH | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4524A000RELAY REED SPST 500MA 24V |
2,663 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
9104-12-41RELAY REED SPST 500MA 12V |
1,366 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
JWD-171-20RELAY REED SPST 500MA 24V |
1,839 |
|
规格书 |
JWD | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
NP05-2A66-500-220RELAY REED DPST 500MA 5V |
4,100 |
|
规格书 |
NP | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
