在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101-12-1110RELAY REED SPST 500MA 12V |
1,854 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-24-1100RELAY REED SPST 500MA 24V |
2,571 |
|
规格书 |
7000 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

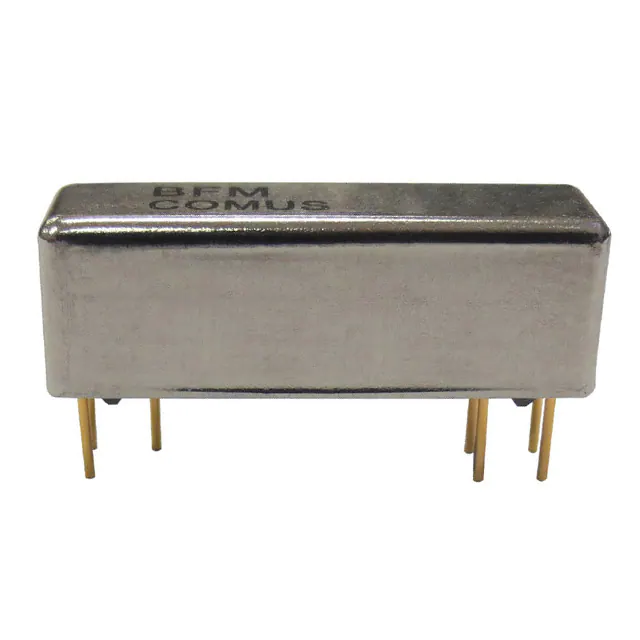

BFM-1C-05RELAY REED SPDT .25A 5V |
2,645 |
|
规格书 |
BFM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
7301-24-1001RELAY REED SPST 500MA 24V |
2,295 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 5.7 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
JWD-171-15RELAY REED SPST 500MA 24V |
2,760 |
|
规格书 |
JWD | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|

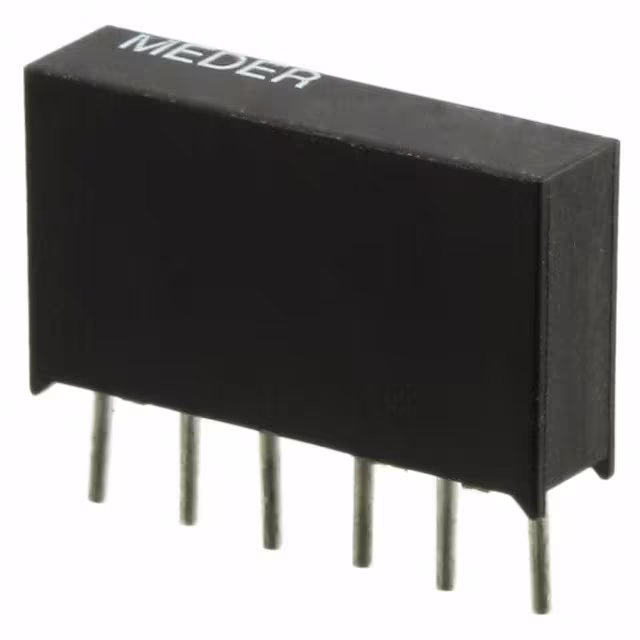

MS05-2A87-78LRELAY REED DPST 500MA 5V |
1,918 |
|
规格书 |
MS | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
V23100V4305C010RELAY REED SPDT 250MA 5V |
4,310 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-172-3RELAY REED SPDT 500MA 12V |
2,796 |
|
规格书 |
JWD | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-2A12250V/1.5A REED RELAY, 2 FORM A, |
4,053 |
|
规格书 |
BFH | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C | - | |
|
|
JWD-172-155RELAY REED SPDT 500MA 5V |
2,875 |
|
规格书 |
JWD | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
S4-05-QRELAY, HV, VERTICAL MOUNT, SPNO, |
1,216 |
|
规格书 |
S4 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 55.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-12-QRELAY, HV, VERTICAL MOUNT, SPNO, |
4,458 |
|
规格书 |
S4 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-24-QRELAY, HV, VERTICAL MOUNT, SPNO, |
1,640 |
|
规格书 |
S4 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D31C2100REED RELAY 1C/5V |
1,828 |
|
规格书 |
- | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C | Rhodium (Rh) |
|
|
JWD-172-162RELAY REED SPDT 500MA 24V |
3,221 |
|
规格书 |
JWD | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
7301-12-1000RELAY REED SPST 500MA 12V |
1,623 |
|
规格书 |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7304-05-1000RELAY REED 4PST 500MA 5V |
1,450 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 500VAC, 500VDC - Max | 91 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
BFH-2C-12RELAY REED DPDT .25A 12V |
1,382 |
|
规格书 |
BFH | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
S4-05-QMRELAY, HV, VERTICAL MOUNT, SPNO, |
1,559 |
|
规格书 |
S4 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 55.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S4-12-QMRELAY, HV, VERTICAL MOUNT, SPNO, |
2,651 |
|
规格书 |
S4 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
