在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

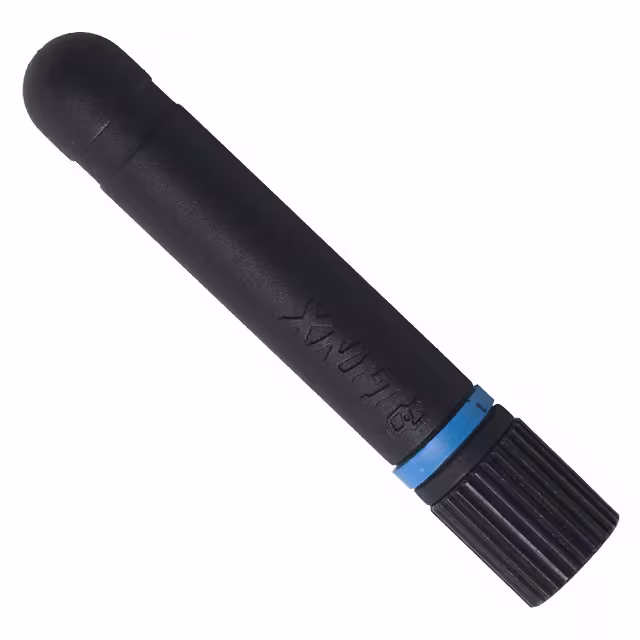

ANT-418-CW-RHRF ANT 418MHZ WHIP STR RP-SMA ML |
534 |
|
规格书 |
RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

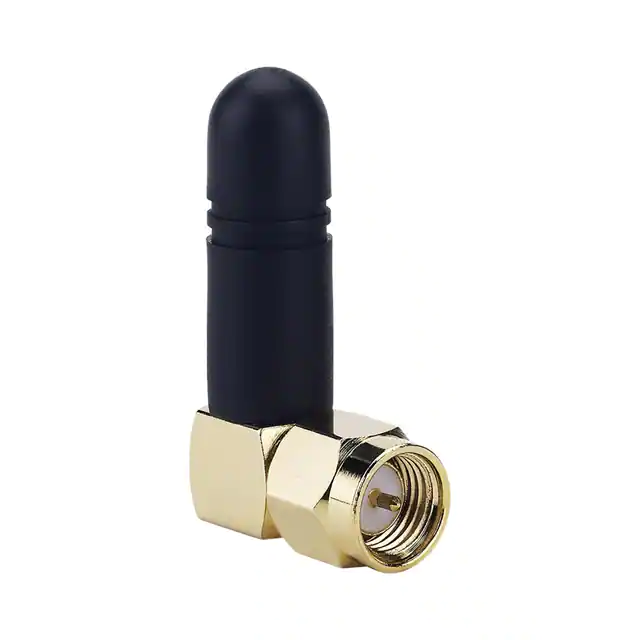

TG.19.0112RF ANT 892MHZ/1.9GHZ WHIP RA SMA |
147 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Right Angle | 2 | 2.3 | -10dB | 0dBi, 1.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 0.307" (7.80mm) | CDMA, GSM |
|
ANT-2.4-CW-HW-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
452 |
|
规格书 |
HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
MIKROE-3372WIFI RUBBER ANTENNA |
248 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 9dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 11.614" (295.00mm) | Wi-Fi |
|
MIKROE-3371LTE RUBBER ANTENNA |
224 |
|
规格书 |
- | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 2.1GHz, 2.6GHz | 700MHz ~ 2.7GHz | Whip, Tilt | 5 | 3 | - | 5dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 8.268" (210.00mm) | 3G, 4G, LTE |
|
FXUWB10.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
655 |
|
规格书 |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 1.8, 2.2, 3 | - | 4.8dBi, 5.9dBi, 7.1dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
X9001248-4GMSMB3000L4G/CELLULAR MAGNET MOUNT EXTERNA |
1,875 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -5.8dB, -5.2dB | -0.5dBi, -0.2dBi | - | Cable - 3m | SMA Male | IP65 | - | - | Magnetic | 3.228" (82.00mm) | 2G, 3G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
DBA6927C1-FSMAMRF ANT 698-960MHZ/1.71-2.7GHZ |
3,216 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 2.5 | - | 0.5dBi, 2.2dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 9.016" (229.00mm) | AWS, GSM, LTE, PCS, UMTS, WiMax™ |
|
ANT-5GWWS5-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
257 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 7.130" (181.10mm) | 2G, 3G, 4G, 5G, LTE |
|
WLP.4958.12.4.A.02RF ANT 5.4GHZ CER PATCH PIN SMD |
263 |
|
规格书 |
- | Tray | Active | 802.15.4, WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.825GHz | Ceramic Patch | 1 | 1.5 | - | 6dBic | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN, Zigbee™ |
|
ANT-2.4-CW-HW-TRF ANT 2.4GHZ WHIP STR RP-SMA ML |
475 |
|
规格书 |
HWT-T | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.475GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 4.724" (120.00mm) | General Purpose |
|
AFAG3030-SG3ANTENNA GNSS FLEX 100MM IPEX |
2,507 |
|
规格书 |
AFAG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.55GHz ~ 1.62GHz | PCB Trace | 1 | 2.5 | - | 2dBi ~ 3dBi | 3 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

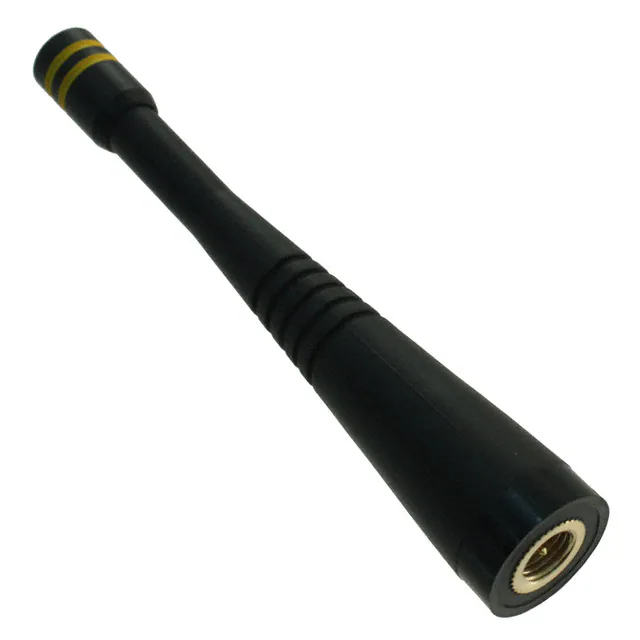

ANT-916-CW-QW-SMARF ANT 916MHZ WHIP STR SMA MALE |
195 |
|
规格书 |
CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 900MHz, 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-DB1-VDP-RPSRF ANT 892MHZ/1.85GHZ FLAT BAR |
451 |
|
规格书 |
VDP | Bulk | Active | - | Wide Band | 892MHz, 1.85GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 2.4GHz ~ 2.48GHz | Flat Bar | 3 | 1.5, 1.9, 1.9 | - | -1.8dBi, -1.7dBi, -1.3dBi | - | Cable - 3m | RP-SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | - |
|
|
ST1326-30-001-ARF ANTENNA STICK SMA PLUG WIDE B |
403 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 825MHz, 1.945GHz, 2.495GHz, 4.575GHz | 690MHz ~ 960MHz, 1.72GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz | Whip, Straight | 4 | - | - | 5.1dBi, 3.9dBi, 4dBi, 3.2dBi | 2 W | - | SMA | - | - | - | Connector Mount | 5.945" (151.00mm) | 4G, LTE |
|
|
YG0035AAMAGGNSS L1&B1&G1 ACTIVE 3M SMAM |
521 |
|
规格书 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | - | Dome | 2 | 2 | - | 1.5dBi, 1.5dBi | - | Cable - 3m, LNA | SMA Male | IP64 | - | - | Magnetic | 0.673" (17.10mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
APAMSJ-137RF ANT 5GHZ WHIP STR SMA MALE |
275 |
|
规格书 |
APAMS | Bulk | Active | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.9GHz | Whip, Straight | 1 | 3 | - | 5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.732" (44.00mm) | WLAN |
|

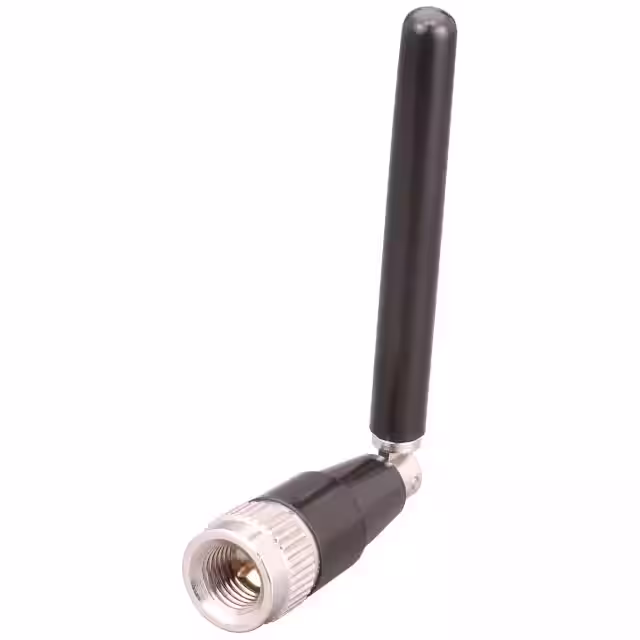

ANT-W63-MON-SMARF ANT WIFI6/6E HINGED WHIP SMA |
657 |
|
规格书 |
MON | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt/Swivel | 3 | 2.4, 2.3, 2 | -7.7dB, -8.1dB, -9.5dB | 3.2dBi, 4.2dBi, 3.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi6, Wi-Fi6E, WLAN, ZigBee |
|

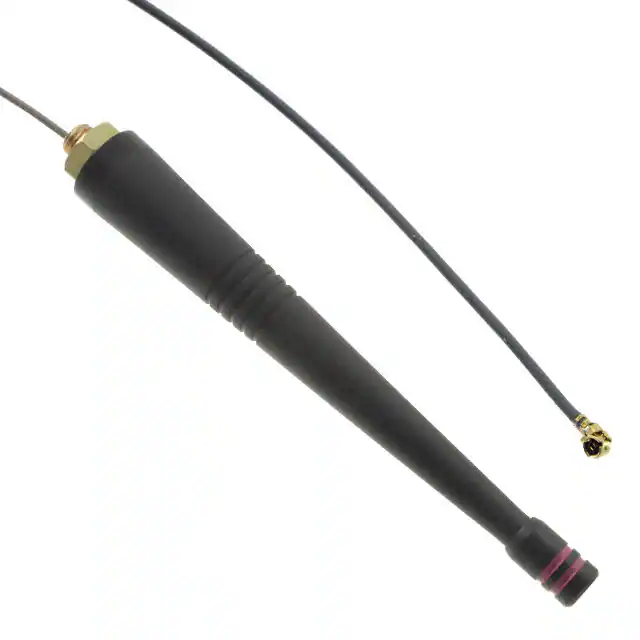

ANT-2.4-PW-QW-UFLRF ANT 2.4GHZ WHIP STR CAB PAN |
963 |
|
规格书 |
PW | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

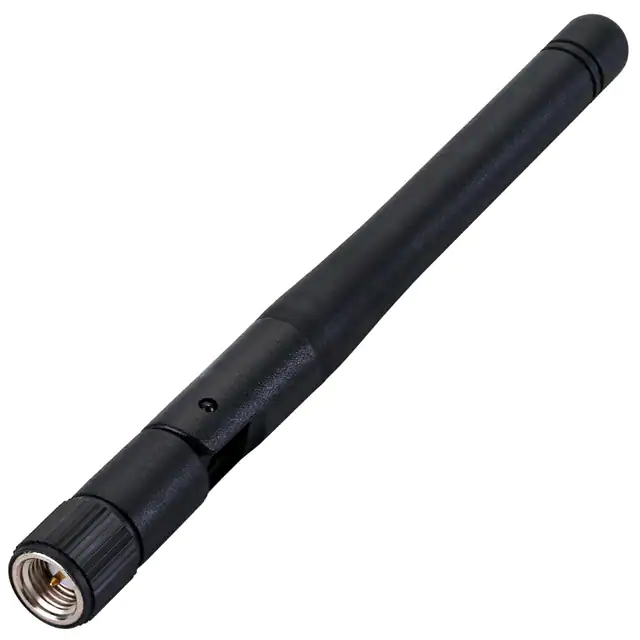

GW.15.2113RF ANT 2.4GHZ WHIP TILT SMA MALE |
1,862 |
|
规格书 |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.8 | - | 2dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 4.272" (108.50mm) | Bluetooth, WLAN |
