在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

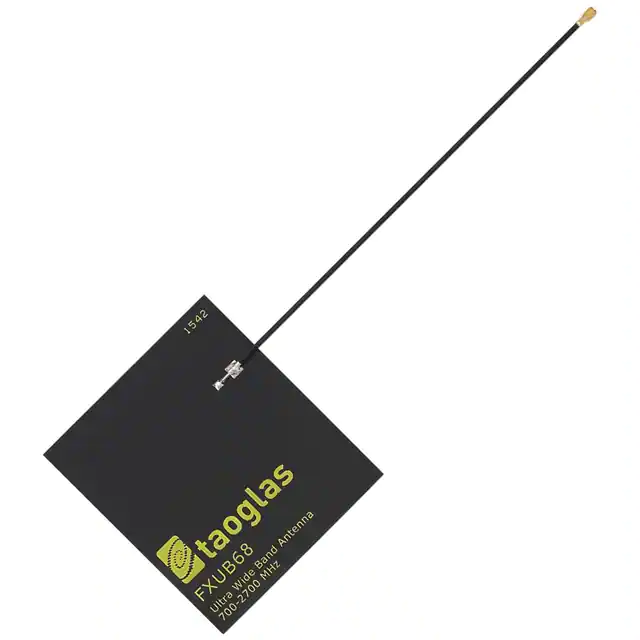

FXUB68.07.0180CRF ANT 829MHZ/2.2GHZ FLAT PATCH |
2,130 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 2 | 2 | -17dB | 2dB | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | GSM, LTE, WLAN |
|

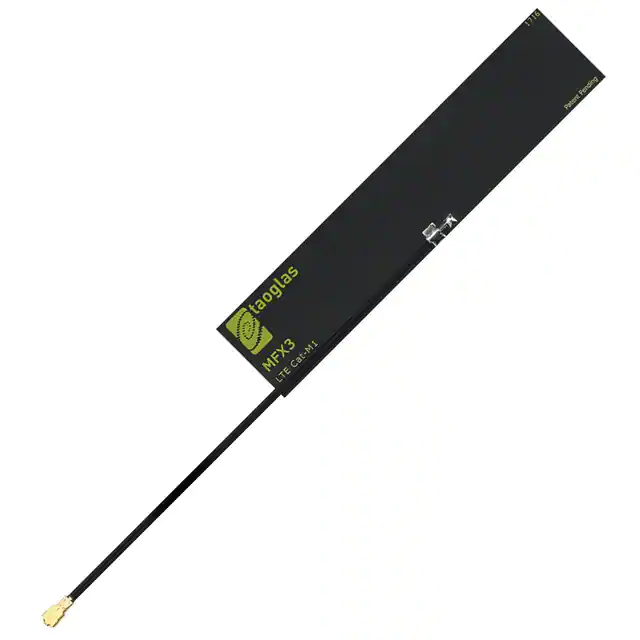

MFX3.07.0150CCAT M1 WIDE BAND FLEX ANTENNA 69 |
834 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 3GHz | Flat Patch | 6 | - | - | 0.21dBi, 0.36dBi, 3.07dBi, 3.1dBi, 3.68dBi, 4.51dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | LTE |
|

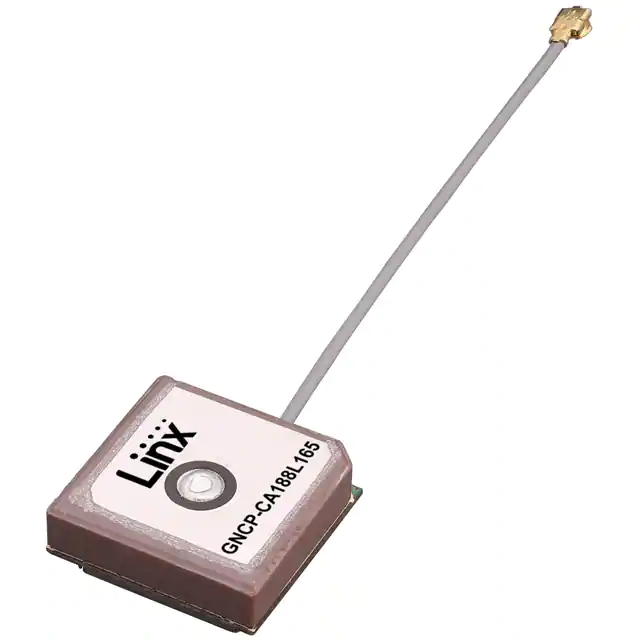

ANT-GNCP-CA188L165RF ANT GNSS GPS 15MM PATCH LNA |
1,327 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz | Ceramic Patch | 4 | 1.1 | - | 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi | - | Cable - 65mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.280" (7.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AEACAC195013-S915RF ANT 915MHZ WHIP TILT SMA ML |
337 |
|
规格书 |
AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 903MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | ISM, LoRa, LPWAN, Sigfox |
|

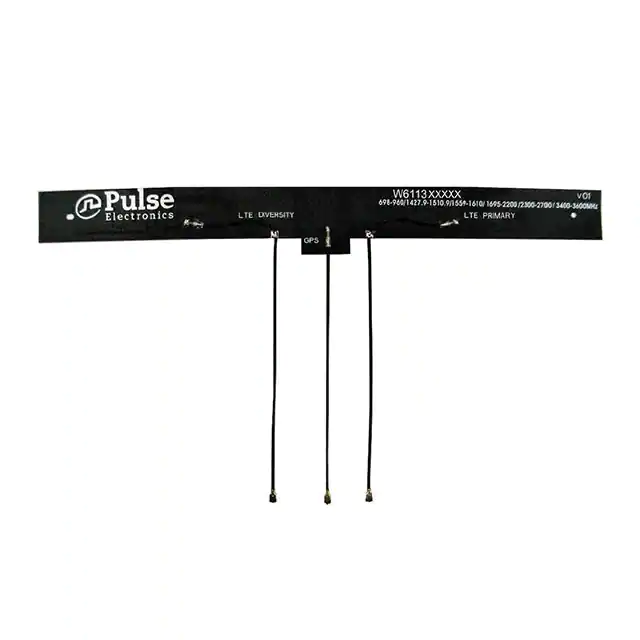

W6113B0100RF ANT 829MHZ/1.47GHZ FLAT CAB |
293 |
|
规格书 |
- | Bulk | Active | - | Wide Band | 829MHz, 1.47GHz, 1.58GHz, 1.94GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -10dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|
GW.26.0112RF ANT 2.4GHZ WHIP RA SMA MALE |
440 |
|
规格书 |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | - | 1.8dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.122" (28.50mm) | Bluetooth, WLAN |
|
TG.22.0111WRF ANT 892MHZ/1.9GHZ WHIP STR |
101 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 3.5 | -5dB | 1.91dBi, 3.23dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | CDMA, GSM, UMTS, WCDMA |
|

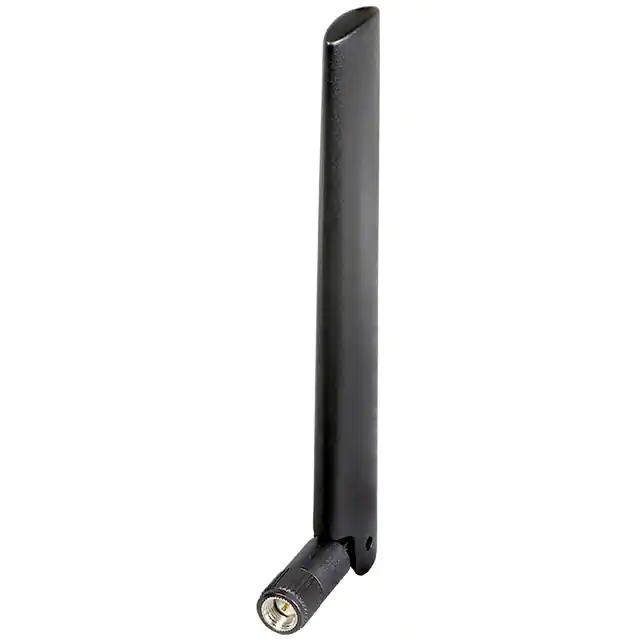

ANT-5GWWS1-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
217 |
|
规格书 |
5GW | Bag | Active | Cellular, General ISM, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8 | -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB | 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 5.340" (135.70mm) | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|

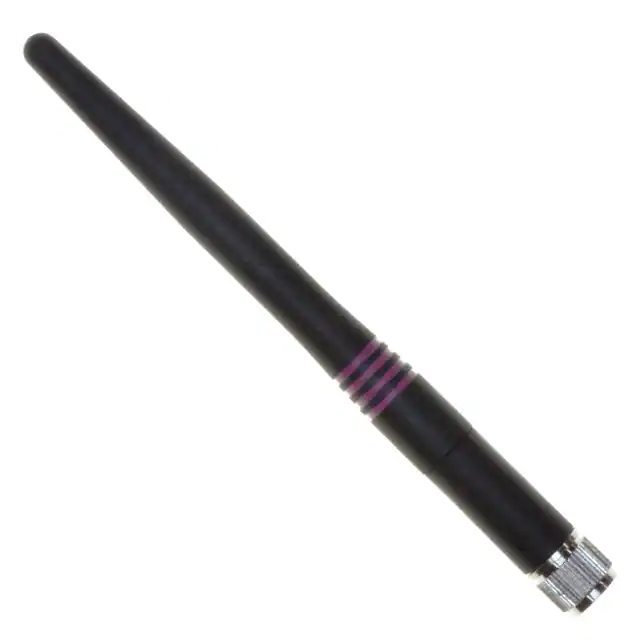

ANT-2.4-CW-CT-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
123 |
|
规格书 |
CT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.375GHz ~ 2.525GHz | Whip, Straight | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.449" (113.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

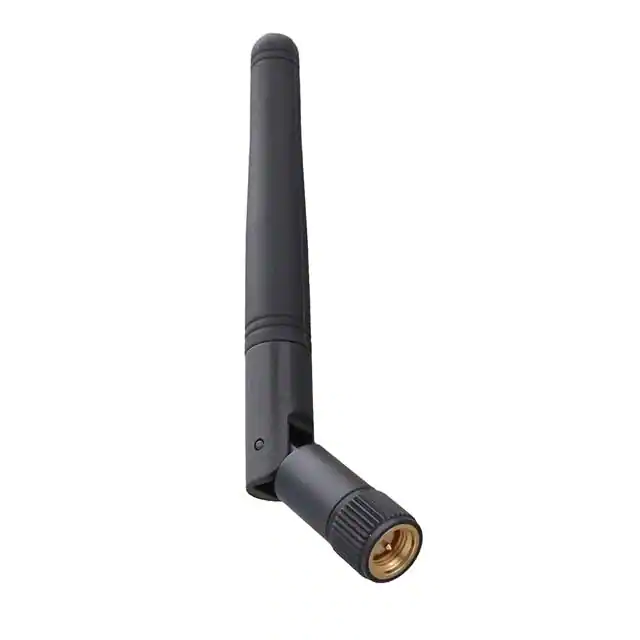

MAF94271RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
173 |
|
规格书 |
WTS | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Whip, Tilt | 2 | 2 | - | 2.1dBi, 3.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.776" (95.90mm) | Wi-Fi, WLAN |
|
ST0228-30-502-ARF ANTENNA STICK RP-SMA PLUG DUA |
413 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB | 3dBi, 4.4dBi | 2 W | - | RP-SMA | - | - | - | Connector Mount | 4.291" (109.00mm) | Wi-Fi |
|
|
TI.93.A111TERMINAL ANTENNA 902-928MHZ SMA |
219 |
|
规格书 |
- | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | - | -7.78dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 0.866" (22.00mm) | - |
|

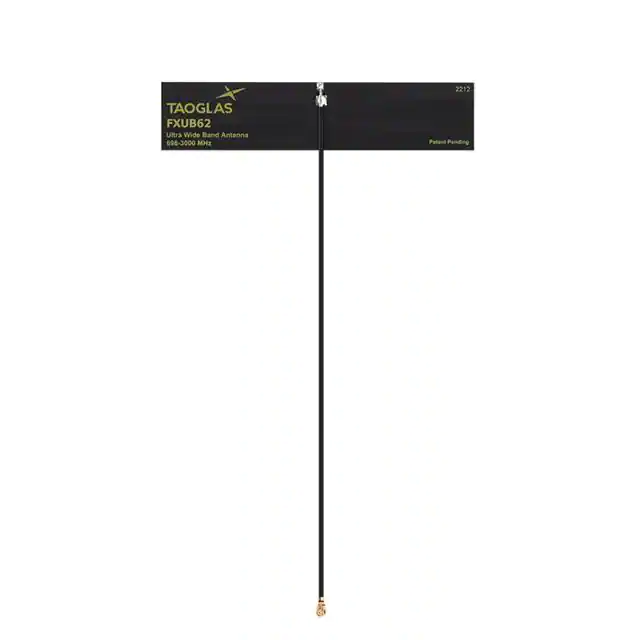

FXUB62.07.0150CWIDE BAND FLEX ANTENNA 698MHZ TO |
122 |
|
规格书 |
- | Bag | Active | AGPS, Cellular | Wide Band | 829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | FlexPIFA | 6 | - | -3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB | 2.4dBi, 4.5dBi, 5.9dBi, 5.9dBi, 4.6dBi, 4dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, LTE |
|
ET56AGBJADIPOLE ANTENNA |
1,795 |
|
规格书 |
- | Bag | Active | Cellular | - | - | - | - | - | 10 | - | 3dBi | - | - | U.FL | - | - | - | - | - | - |
|
66089-2430RF ANT 2.4GHZ WHIP STR U.FL CONN |
2,420 |
|
规格书 |
66089 | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 2.362" (60.00mm) | - |
|
|
66089-0930RF ANT 915MHZ WHIP STR U.FL CONN |
186 |
|
规格书 |
66089 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.409" (122.00mm) | - |
|

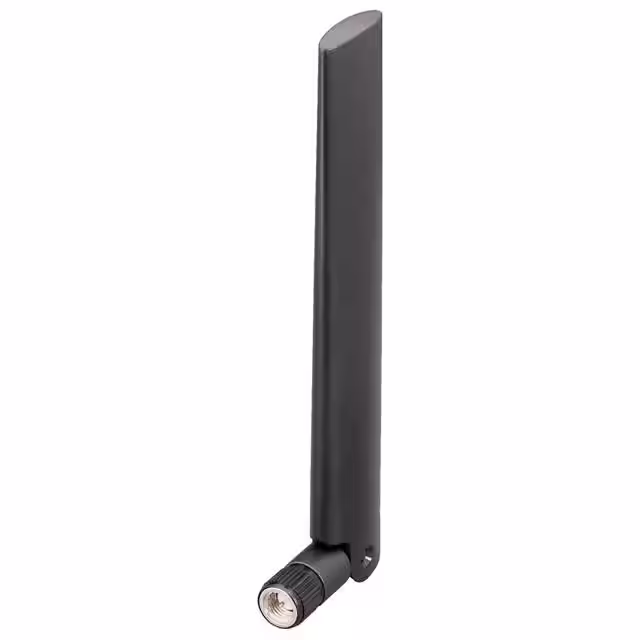

ANT-5GWWS3-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
576 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 5.252" (133.40mm) | 2G, 3G, 4G, 5G, LTE |
|
FW.86.B.SMA.MRF ANT 868MHZ WHIP STR SMA MALE |
216 |
|
规格书 |
Meteor | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | -10dB | 2.8dBi | 2 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.449" (240.00mm) | ISM |
|
APARM2508S-SGL2L5RF ANT GPS L1+L2+L5 STACK PATCH |
1,313 |
|
规格书 |
APARM | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.164GHz ~ 1.188GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 1.8 | - | 3.8dBi, -0.3dBi, -0.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.315" (8.00mm) | GPS |
|

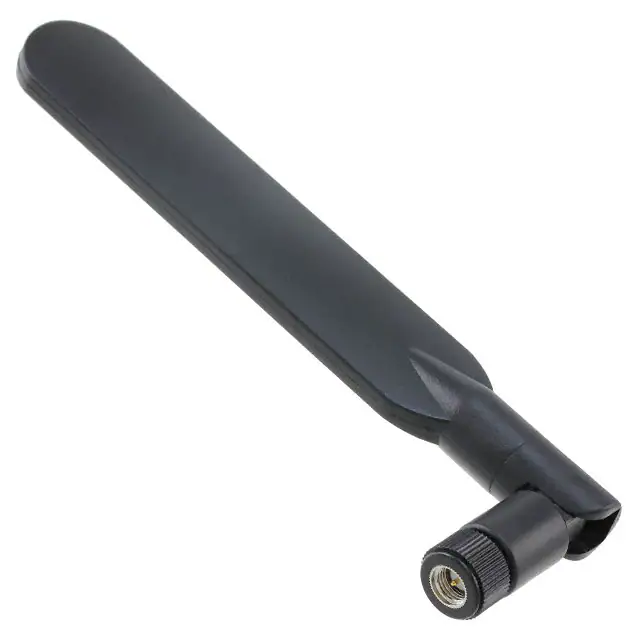

ANT-MDIP5-SMA+5DBI WHIP 90DEG HINGED 2.4GHZ / |
161 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.2GHz, 5.787GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.25GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.8 | - | 4dBi, 4.5dBi, 5dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.339" (161.00mm) | Wi-Fi |
