在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKFN-NB-VHFL-EANSKFN ANT, 150-161 MHZ |
2,362 |
|
规格书 |
- | Box | Active | - | VHF (f < 300MHz) | 167.5MHz | 161MHz ~ 174MHz | Whip, Tilt | 1 | - | - | - | 100 W | Cable - 5.1816m | BNC, N Type, PL, SMA, TNC, UHF | - | - | - | Base Mount | 10.000" (254.00mm) | General Purpose |
|
ROOF-FT-NITIROOF MOUNT, 136-1000 MHZ |
2,265 |
|
规格书 |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 568MHz | 136MHz ~ 1GHz | Whip, Straight | 1 | 2 | - | 1dB | 150 W | Cable - 5.1816m | BNC, N Type, PL, SMA, TNC, UHF | - | - | - | Base Mount | 19.102" (485.20mm) | General Purpose |
|
|
SKFN-TB-V/U/C-EAN-SP150-174/450-520/760-870 MHZ, 1 P |
3,238 |
|
规格书 |
- | Box | Active | - | Wide Band | 162MHz, 458MHz, 815MHz | 150MHz ~ 174MHz, 450MHz ~ 520MHz, 760MHz ~ 870MHz | Whip, Tilt | 3 | - | - | - | 100 W | Cable - 4.572m | BNC, N Type, PL, SMA, TNC, UHF | - | - | - | Base Mount | 16.000" (406.40mm) | General Purpose |
|
CCAS-SB-7/800COVERT ANT SYS,760-896MHZ,BW 136 |
4,394 |
|
规格书 |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 828MHz | 760MHz ~ 896MHz | Flat Patch | 1 | 2 | - | - | 35 W | Cable - 6.096m | BNC, N Type, PL, SMA, TNC, UHF | - | - | - | Adhesive | - | General Purpose |
|
RFMT-NT-V/U/CRFMT-NT TRIBAND ANT |
3,258 |
|
规格书 |
- | Box | Active | - | Wide Band | 324MHz, 450MHz, 816MHz | 150MHz ~ 174MHz, 380MHz ~ 520MHz, 762MHz ~ 870MHz | Whip, Center-Fed Double | 3 | 3 | - | 3dB, 6dB | 150 W | - | BNC, N Type, PL, SMA, TNC, UHF | - | - | - | Base Mount | 19.200" (487.68mm) | General Purpose |
|
GPSDM700/2500SSSGPS LTE DIRECT MOUNT, 698-960 / |
2,110 |
|
规格书 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.699GHz, 2.4GHz | 698MHz ~ 2.7GHz | Module | 2 | - | - | - | - | - | - | - | - | - | Panel Mount | - | GPS |
|

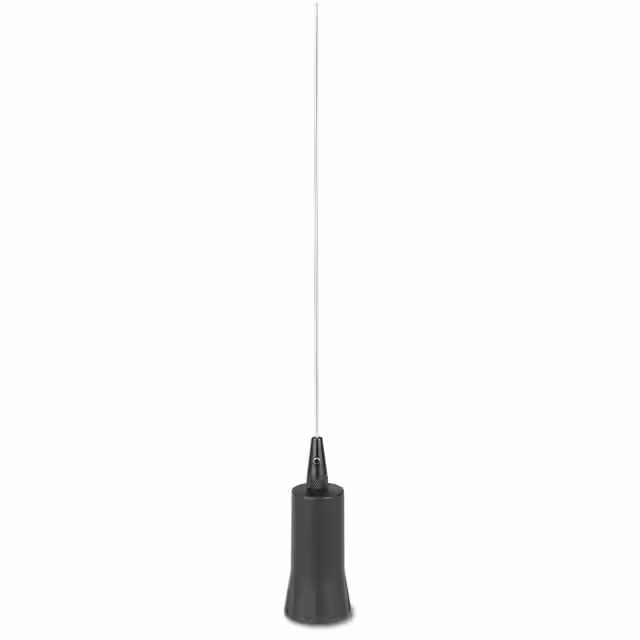

NMO40UBNCSPRINGNMO COIL / WHIP UNITY, 40-50MHZ, |
3,777 |
|
规格书 |
- | Bag | Active | - | VHF (f < 300MHz) | 45MHz | 40MHz ~ 50MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | NMO Mount | - | - |
|

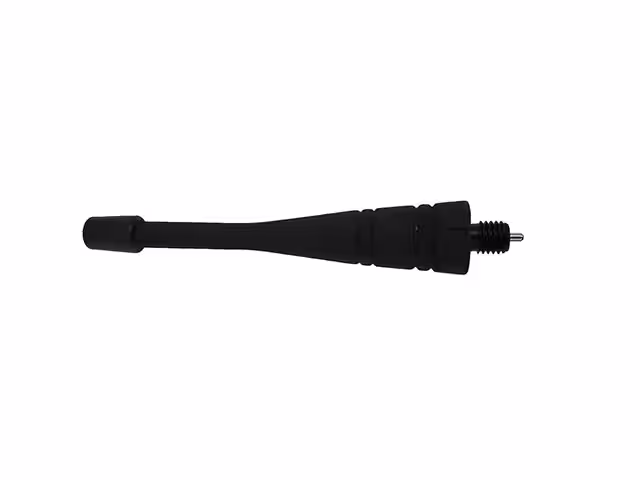

SPWH14832WHIP - STANDARD - 1/4 WAVE, 782 |
3,555 |
|
规格书 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 832MHz | 782MHz ~ 882MHz | Whip, Straight | 1 | - | - | - | - | - | MD | - | - | - | Connector Mount | 3.000" (76.20mm) | - |
|

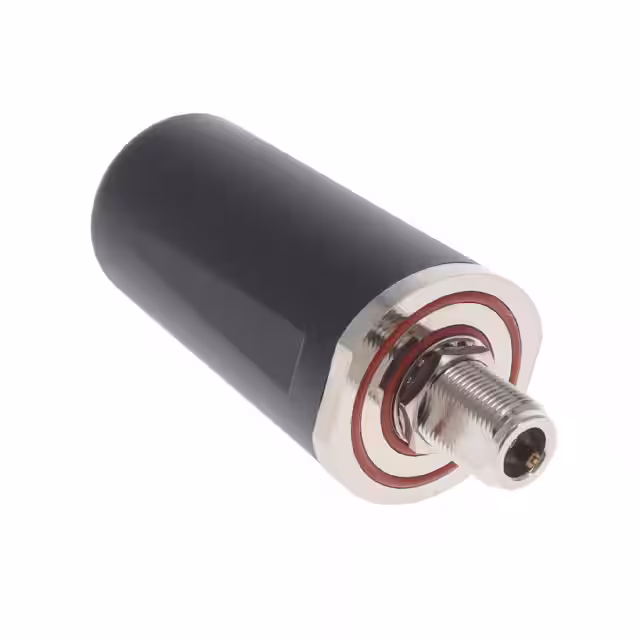

AP-M2M-SN-BLANTENNA PLUS M2M SALT SHAKER ANT |
1,442 |
|
规格书 |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Dome | 2 | - | - | 3dBi, 6dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.236" (82.20mm) | LTE |
|

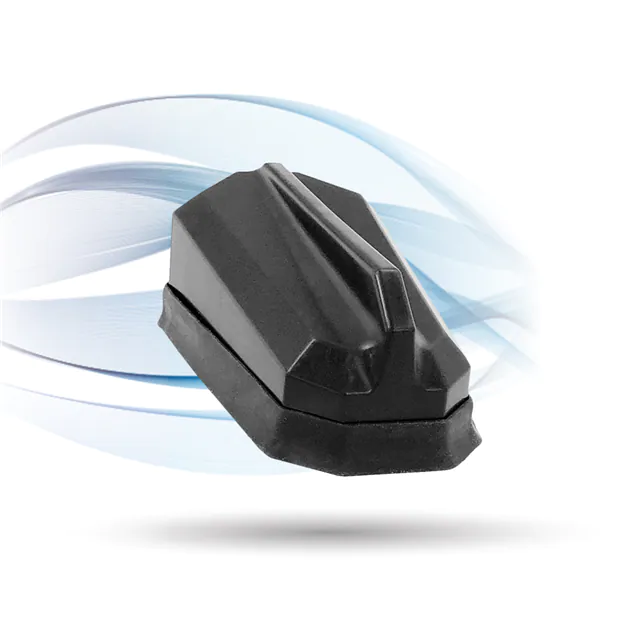

AP-CCWWWG-Q-S222222-RP345-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
3,547 |
|
规格书 |
- | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 4.9dBi, 2.5dBi, 7dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AP-M2M1-CC-Q-S22-WH-6ANTENNA PLUS M2MAX MIMO ANTENNA |
4,409 |
|
规格书 |
M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
|
|
AP-M2M1-CC-Q-S22-BL-6ANTENNA PLUS M2MAX MIMO ANTENNA |
2,405 |
|
规格书 |
M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
|

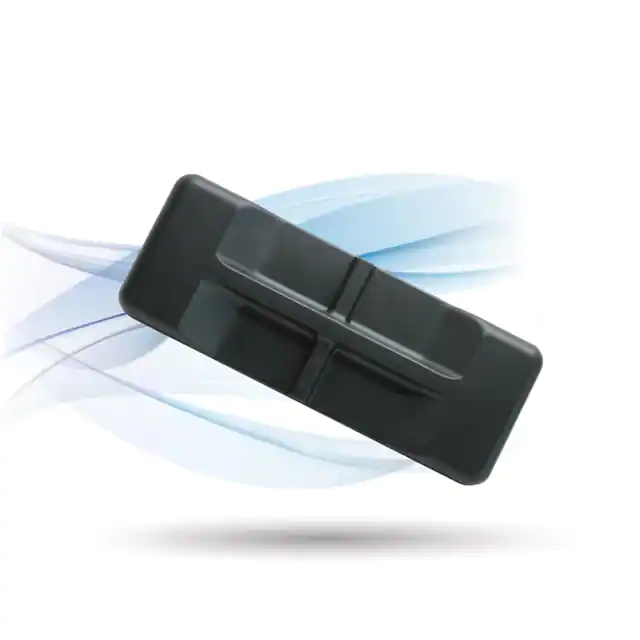

AP-M2M-LP-CCG-Q-S222-BL-6ANTENNA PLUS M2M LOW PROFILE ANT |
1,800 |
|
规格书 |
M2M | Bag | Obsolete | Cellular | Wide Band | 829MHz, 1.58GHz, 2.2GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz | Ceramic Patch | 3 | - | - | 2dBi, 30.5dBi, 4dBi | - | Cable - 1.8288m | SMA Male | IP67 | - | - | Threaded | 1.125" (28.60mm) | Beidou, Galileo, GLONASS, GPS, GNSS, LTE |
|

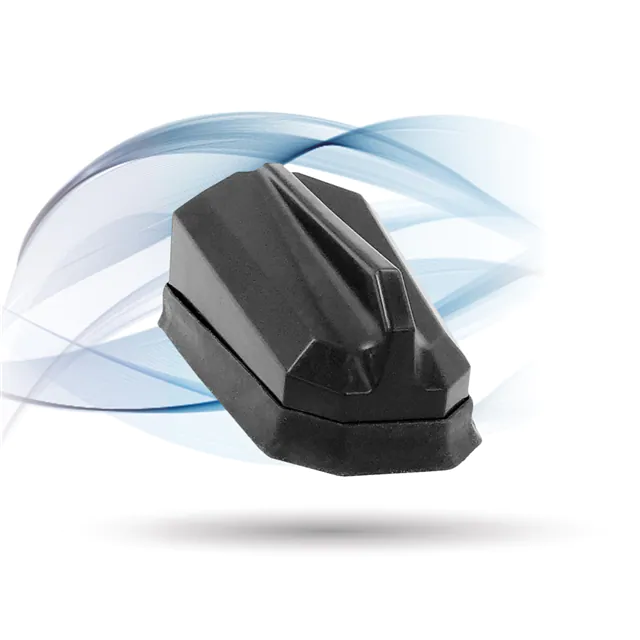

AP-CCG-M-S222-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
4,783 |
|
规格书 |
- | Bag | Obsolete | Cellular, Navigation | Wide Band | 829MHz, 1.58GHz, 2.2GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz | Module | 3 | - | - | 4.9dBi, 2.5dBi, 7dBi | - | Cable - 4.572m | SMA Male (2) | - | - | - | Magnetic | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE |
|
|
AP-CCG-Q-S222-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
1,516 |
|
规格书 |
* | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

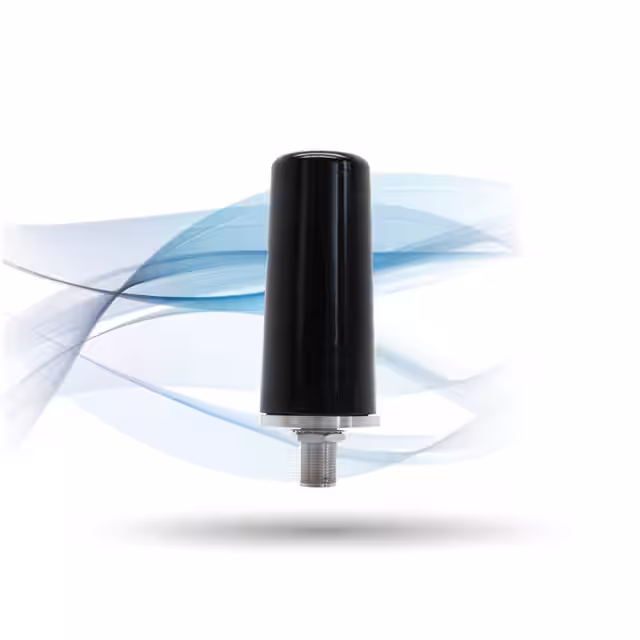

AP-NEXT-M2M-SN-BLANTENNA PLUS M2M NEXT 5G SALT SH |
4,232 |
|
规格书 |
- | Bag | Obsolete | Cellular | Wide Band | 788.5MHz, 1.5135GHz, 2.2GHz, 3.625GHz, 5.5GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.6GHz, 1.7GHz ~ 2.7GHz, 3.55GHz ~ 3.7GHz, 5.15GHz ~ 5.85GHz | Dome | 5 | - | - | 3.4dBi, 4dBi, 4.1dBi, 6dBi, 6dBi, 7dBi | - | - | - | IP67 | - | - | Panel Mount | 3.878" (98.50mm) | 2G, 3G, 4G, 5G, LTE |
|
|
GPDF5012.ARF ANT MULTI HP GNSS STACKED |
3,613 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.2276GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 5 | 1.5 | - | 0.9dBi, 0.92dBi, 2.96dBi, 4.32dBi, 4.44dBi | - | - | Pin | - | - | - | Surface Mount | 0.492" (12.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
A10376AMIA ANTENNA CELLULAR SMD |
4,371 |
|
规格书 |
- | Tape & Reel (TR) | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | - | 4 | - | 6.8dB | -1.6dBi, -2.4dBi | - | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | GSM, UMTS |
|
|
A10472ANTENNA 868/015MHZ KIRBII SMD |
2,013 |
|
规格书 |
- | Tape & Reel (TR) | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 1.2, 2.1 | -20dB, -10dB | -1.8dBi, -1.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.40mm) | ISM, LoRa, Sigfox |
|

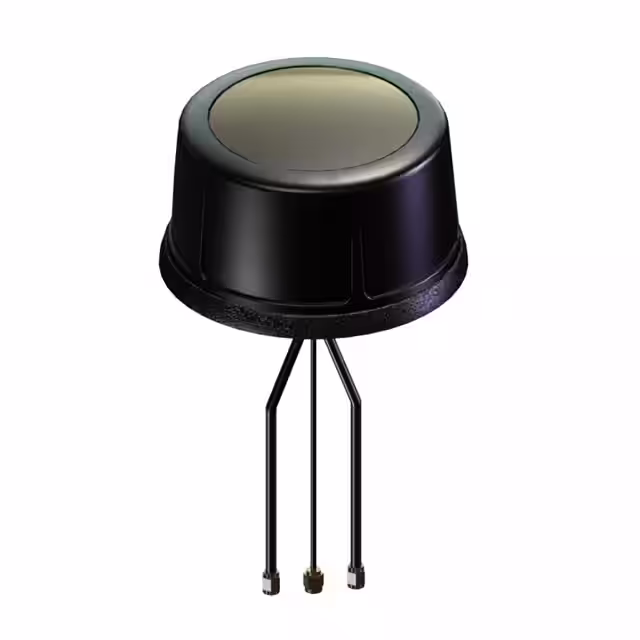

VLT69273BW11J-518AANT 3-PORT 1X-4G, 1X-WIFI-GNSS, |
3,954 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
