在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8655PRRF ANTENNAS |
2,878 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 865MHz ~ 870MHz | Panel | 1 | 1.5 | - | 5dBi | 10 W | - | N Female, RP-TNC Female, RP-SMA Female, SMA Female | IP67 | - | - | Bracket Mount | 0.710" (18.03mm) | - |
|
|
6GK58966MM000AA0MOBILE RADIO ANTENNA ANT896-6MM |
2,404 |
|
规格书 |
- | Box | Active | Cellular | Wide Band | 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.2GHz, 2.545GHz, 2.6GHz, 3.65GHz | 2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.935GHz | Module | 12 | 1.8 | - | 5dBi, 6dBi, 7dBi | - | - | QMA | IP68, IP69K | - | - | - | 3.228" (82.00mm) | GSM, LTE, UMTS |
|

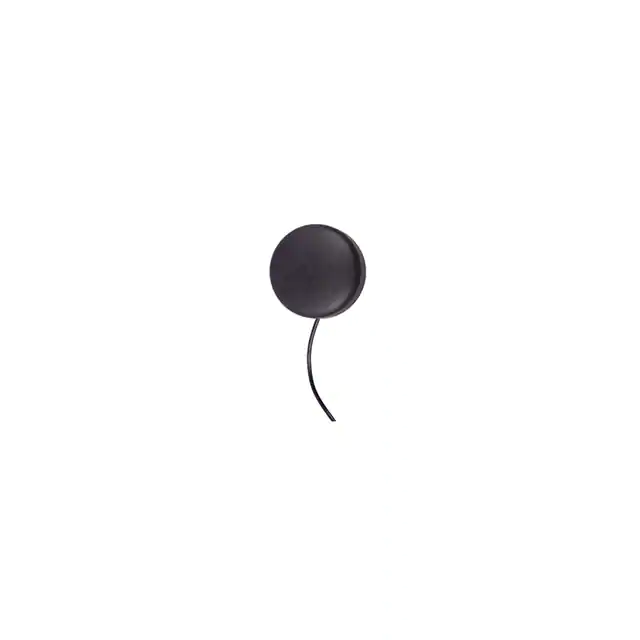

BB-AO-ALTE-36SANTENNA LTE, SMA-M |
2,384 |
|
规格书 |
- | Box | Obsolete | Cellular | Wide Band | 700MHz, 800MHz, 900MHz, 1.7GHz, 1.8GHz, 2.1GHz, 2.5GHz, 2.6GHz, 2.7GHz | - | Dome | 9 | 2 | - | 2dBi | 10 W | Cable - 3m | SMA Male | - | - | - | - | 0.969" (24.60mm) | LTE |
|
|
ANT1204LL20R0315AANTENNA CHIP 315M HELIX TYPE20 |
3,710 |
|
规格书 |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 300MHz ~ 400MHz | Chip | 1 | - | - | - | 1 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM |
|
|
ANT2525B00AT1575SANTENNA PATCH GPS |
2,397 |
|
规格书 |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | - | 5dBic | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
|
ANT1212B00DT1575SANTENNA PATCH GPS CP PIN DIAG. |
3,859 |
|
规格书 |
1212 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANT2525JB19BGNSSSANTENNA PATCH ANMW BOB-LNA-C 252 |
3,101 |
|
规格书 |
2525 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT1818B00BT1575SANTENNA PATCH GPS CP SMD |
2,931 |
|
规格书 |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58MHz | - | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
ANT1105LF00R0098AANTENNA CHIP FM HELIX TYPE00 |
4,352 |
|
规格书 |
1105 | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 98MHz | 88MHz ~ 108MHz | Chip | 1 | - | - | - | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | - |
|
|
ANT4050BS0WTGN25SANTENNA PATCH GNSS + L2 +L5 |
3,968 |
|
规格书 |
4050 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT1110LL40R2590AANTENNA CHIP CERAMIC TYPE40 |
1,783 |
|
规格书 |
1110 | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.685GHz | 2.87GHz ~ 8.5GHz | Chip | 1 | - | 6dB | 3.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | UWB |
|
|
ANT1003LL16R1524AANTENNA CHIP 1.575/2.4GHZ CERAMI |
4,014 |
|
规格书 |
1003 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | - | Chip | 2 | - | 10dB | 1.5dBi, 2.03dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.058" (1.47mm) | Bluetooth, GPS, ISM, Wi-Fi, Zigbee™ |
|
|
ANT7020LL05R0915AANTENNA CHIP 915MHZ |
1,720 |
|
规格书 |
7020 | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT1003LL15R1524AANTENNA CHIP 1.575/2.4GHZ CERAMI |
3,560 |
|
规格书 |
1003 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | - | Chip | 2 | - | 6.49dB | 1.15dBi, 2.9dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.058" (1.47mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
CAN4311712002453KANTENNA CHIP 2.4GHZ |
3,641 |
|
规格书 |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | - | Ceramic Patch | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
|
ANT1004B000R1575AANTENNA PATCH GPS LP=SMD |
2,526 |
|
规格书 |
1004 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1.61dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
202/002OMNILOG 70600 680MHZ-6GHZ |
4,707 |
|
规格书 |
- | Bulk | Active | - | UHF (3GHz ~ 4GHz) | 3.34GHz | 680MHz ~ 6GHz | Blade, Tilt | 1 | 3 | - | 3dBi | 5 W | - | SMA | - | - | - | - | 6.811" (173.00mm) | - |
|
|
TW5341SMART ANT SBAS GPS L1 GLONASS G1 |
2,956 |
|
规格书 |
TW5000 | Bulk | Obsolete | Navigation | - | - | - | Dome | - | - | - | - | - | Cable - 5m | RJ45 | IP69K | - | - | Mast Mount, Through Hole | 0.827" (21.00mm) | GLONASS, GPS |
|
|
TW5343SMART ANT SBAS GPS L1 GLONASS G1 |
3,659 |
|
规格书 |
TW5000 | Bulk | Obsolete | Navigation | - | - | - | Dome | - | - | - | - | - | Cable - 5m | RJ45 | IP69K | - | - | Mast Mount, Through Hole | 1.772" (45.00mm) | GLONASS, GPS |
|
|
DELTA5/X/SMAM/S/S/4RF ANT 868MHZ HELICAL SMA MALE |
4,427 |
|
规格书 |
Delta 5 | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | 1.5 | - | - | - | - | SMA Male | - | - | - | Connector Mount | 3.346" (85.00mm) | - |
