图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值(电流) | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
JMAC-12XMRELAY GEN PURPOSE DPDT 1A 12V |
4,610 |
|
![]() 规格书 |
MAC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
PRMGSCD-5XWRELAY GENERAL PURPOSE DPDT 1A 5V |
1,863 |
|
![]() 规格书 |
MGS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
PRMGSPD-26XWRELAY GEN PURPOSE DPDT 1A 26.5V |
2,487 |
|
![]() 规格书 |
MGS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
JMAW-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
1,844 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
![]() |
1-1617121-3RELAY GEN PURPOSE DPDT 1A 30V |
4,762 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 30VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17.7 VDC | 1.5 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
![]() |
JMAP-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
1,278 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
1617121-5RELAY GEN PURPOSE DPDT 1A 18V |
3,105 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
![]() |
HC3-26BRELAY GEN PURPOSE DPDT 1A 26.5V |
2,693 |
|
![]() 规格书 |
HC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | 16.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
JMGAP-26LRELAY GEN PURPOSE DPDT 1A 26.5V |
3,150 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAC-18LRELAY GEN PURPOSE DPDT 1A 18V |
2,669 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAP-12LRELAY GEN PURPOSE DPDT 1A 12V |
2,897 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAC-12MRELAY GEN PURPOSE DPDT 1A 12V |
1,477 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAC-26LRELAY GEN PURPOSE DPDT 1A 26.5V |
1,696 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAC-26MRELAY GEN PURPOSE DPDT 1A 26.5V |
3,048 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
8-1617542-2RELAY GEN PURPOSE DPDT 1A 12V |
1,154 |
|
![]() 规格书 |
MGA, CII | Bulk | Discontinued at Digi-Key | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
MAP-12RELAY GEN PURPOSE DPDT 1A 12V |
3,625 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 133.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
1-1617145-3RELAY GENERAL PURPOSE DPDT 1A 5V |
1,665 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | - | - | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |

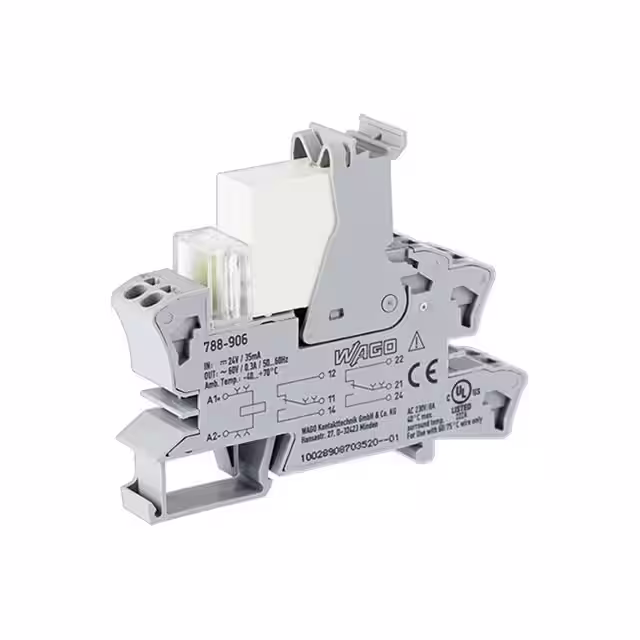

788-906RELAY GEN PURPOSE DPDT 0.3A 24V |
4,452 |
|
![]() 规格书 |
788 | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 0.3 A | 250VAC - Max | - | 30 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 12 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
![]() |
JMACD-12XLRELAY GEN PURPOSE DPDT 1A 12V |
4,262 |
|
![]() 规格书 |
MAC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
G2A-434A-N DC24RELAY GEN PURPOSE 4PDT 500MA 24V |
2,957 |
|
![]() 规格书 |
G2A | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 500 mA | 250VAC, 125VDC - Max | - | 45 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 15 ms | -10°C ~ 40°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
