图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值(电流) | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
SHCD-12RELAY GEN PURPOSE DPDT 1A 12V |
3,140 |
|
![]() 规格书 |
SHCD, CII | Bulk | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | - | - | 30 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | - | 9 VDC | - | 4 ms | 6 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |

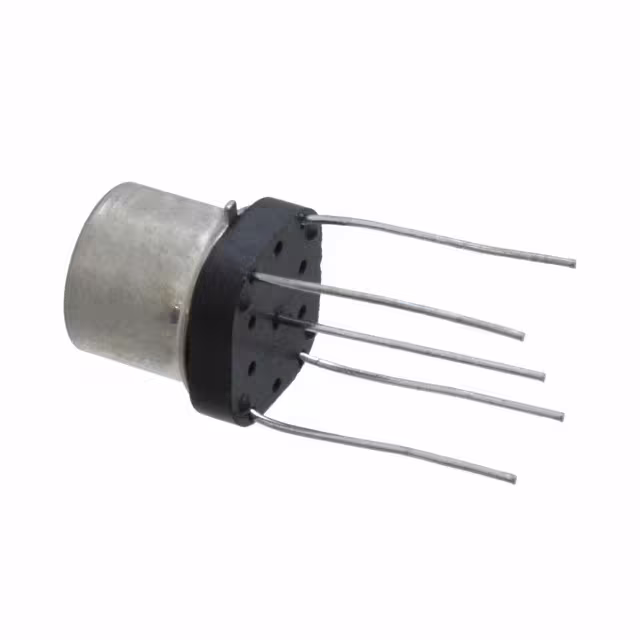

J1MAC-12XLSRELAY GEN PURPOSE SPDT 1A 12V |
3,514 |
|
![]() 规格书 |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/7 |
![]() |
JMAC-5XLSRELAY GENERAL PURPOSE DPDT 1A 5V |
3,151 |
|
![]() 规格书 |
MAC | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
1-1617121-7RELAY GENERAL PURPOSE DPDT 1A 5V |
4,212 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
J1MAC-26XMRELAY GEN PURPOSE SPDT 1A 26.5V |
2,606 |
|
![]() 规格书 |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/7 |
![]() |
MGSHC-18RELAY GEN PURPOSE DPDT 1A 18V |
3,397 |
|
![]() 规格书 |
MGS, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | - | PC Pin | - | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
J1MAP-12XMRELAY GEN PURPOSE SPDT 1A 12V |
4,166 |
|
![]() 规格书 |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
J1MAC-12XLRELAY GEN PURPOSE SPDT 1A 12V |
1,639 |
|
![]() 规格书 |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
JMGAPD-5LRELAY GENERAL PURPOSE DPDT 1A 5V |
2,697 |
|
![]() 规格书 |
MGAD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
![]() |
JMGACD-12LRELAY GEN PURPOSE DPDT 1A 12V |
3,568 |
|
![]() 规格书 |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
![]() |
JMGACD-26LRELAY GEN PURPOSE DPDT 1A 26.5V |
4,750 |
|
![]() 规格书 |
MGAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
![]() |
JMGAC-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
4,047 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
HCD-12BRELAY GEN PURPOSE DPDT 1A 12V |
4,984 |
|
![]() 规格书 |
HCD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9 VDC | - | 4 ms | 6 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
J1MAC-5XMRELAY GENERAL PURPOSE SPDT 1A 5V |
3,781 |
|
![]() 规格书 |
1MA, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 79.4 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
![]() |
JMAW-12XLRELAY GEN PURPOSE DPDT 1A 12V |
2,952 |
|
![]() 规格书 |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
![]() |
JMGAC-5MWRELAY GENERAL PURPOSE DPDT 1A 5V |
2,420 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
JMGAC-12MWRELAY GEN PURPOSE DPDT 1A 12V |
2,241 |
|
![]() 规格书 |
MGA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
![]() |
1617131-7RELAY GENERAL PURPOSE DPDT 1A 5V |
2,948 |
|
![]() 规格书 |
MS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
![]() |
JMSW-12XLRELAY GEN PURPOSE DPDT 1A 12V |
3,016 |
|
![]() 规格书 |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
![]() |
JMSW-12XMRELAY GEN PURPOSE DPDT 1A 12V |
1,238 |
|
![]() 规格书 |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
