在线询价通孔式电阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

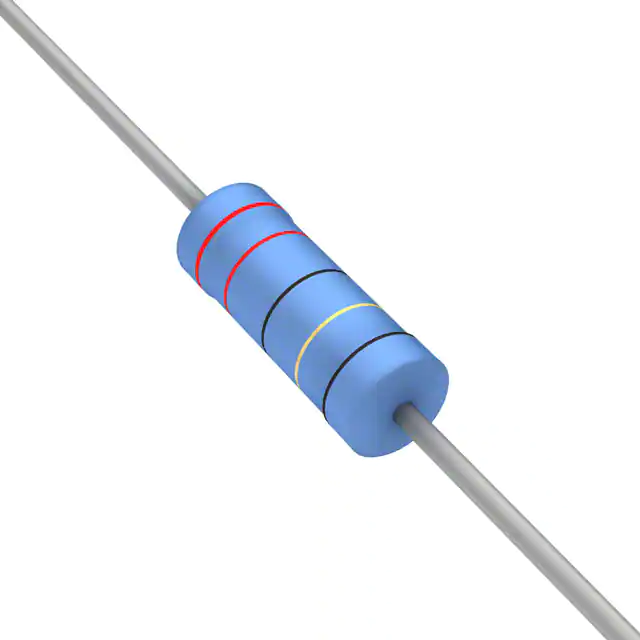

ASRM1JA22R0RES 22 OHM 5% 1W AXIAL |
220 |
|
规格书 |
ASRM | Cut Tape (CT) | Active | 22 Ohms | ±5% | 1W | Metal Film | Flame Retardant Coating, Pulse Withstanding, Safety | 0/ -1800ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.433" L (4.00mm x 11.00mm) | - | 2 | - |
|

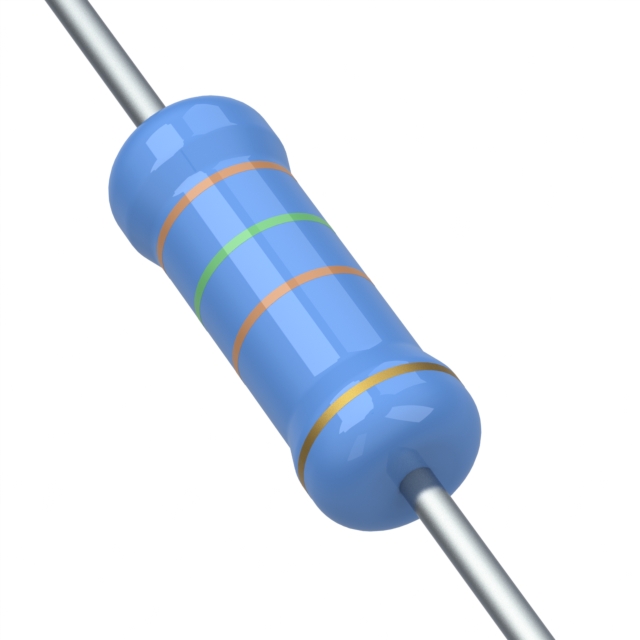

ASRM1JA150RRES, SURGE, 1W, 150 OHM, 5% |
1,185 |
|
规格书 |
ASRM | Cut Tape (CT) | Active | 150 Ohms | ±5% | 1W | Metal Film | Flame Proof, Pulse Withstanding, Safety | 0/ -1800ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.433" L (4.00mm x 11.00mm) | - | 2 | - |
|

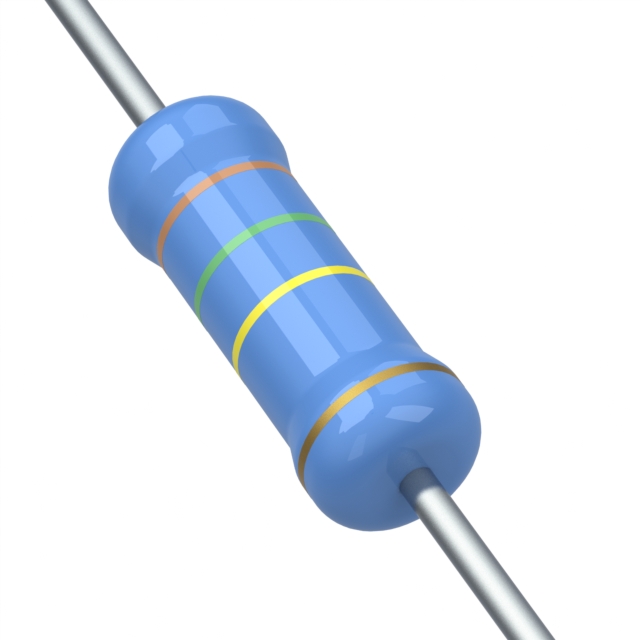

ASRM1JA150KRES 150K OHM 5% 1W AXIAL |
974 |
|
规格书 |
ASRM | Cut Tape (CT) | Active | 150 kOhms | ±5% | 1W | Metal Film | Flame Retardant Coating, Pulse Withstanding, Safety | 0/ -1800ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.433" L (4.00mm x 11.00mm) | - | 2 | - |
|
MBA02040C4707JC100RES 0.47 OHM 0.4W 5% AXIAL |
730 |
|
规格书 |
MBA/SMA 0204 - Professional | Cut Tape (CT) | Active | 470 mOhms | ±5% | 0.4W | Metal Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 0.063" Dia x 0.142" L (1.60mm x 3.60mm) | - | 2 | - |
|
MBA02040C5107JC100RES 0.51 OHM 0.4W 5% AXIAL |
249 |
|
规格书 |
MBA/SMA 0204 - Professional | Cut Tape (CT) | Active | 510 mOhms | ±5% | 0.4W | Metal Film | - | ±50ppm/°C | -55°C ~ 155°C | - | 0.063" Dia x 0.142" L (1.60mm x 3.60mm) | - | 2 | - |
|
RSF300JT-91-100KRES 100K OHM 5% 3W AXIAL |
996 |
|
规格书 |
RSF | Cut Tape (CT) | Active | 100 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | - | 2 | - |
|
VR37000004703FA100VR37 1% A1 470K |
967 |
|
规格书 |
VR37 | Cut Tape (CT) | Active | 470 kOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.354" L (4.00mm x 9.00mm) | - | 2 | - |
|
RSF300JT-91-1MRES 1M OHM 5% 3W AXIAL |
957 |
|
规格书 |
RSF | Cut Tape (CT) | Active | 1 MOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | - | 2 | - |
|
VR37000004994FA100VR37 1% A1 4M99 |
850 |
|
规格书 |
VR37 | Cut Tape (CT) | Active | 4.99 MOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.354" L (4.00mm x 9.00mm) | - | 2 | - |
|
MBA02040C1000DC100RES 100 OHM 0.4W 0.5% AXIAL |
788 |
|
规格书 |
MBA/SMA 0204 - Professional | Cut Tape (CT) | Active | 100 Ohms | ±0.5% | 0.4W | Metal Film | Automotive AEC-Q200 | ±50ppm/°C | -55°C ~ 155°C | - | 0.063" Dia x 0.142" L (1.60mm x 3.60mm) | - | 2 | - |
|
VR37000001205FA100VR37 1% A1 12M |
354 |
|
规格书 |
VR37 | Cut Tape (CT) | Active | 12 MOhms | ±1% | 0.5W, 1/2W | Metal Film | Automotive AEC-Q200, High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.157" Dia x 0.354" L (4.00mm x 9.00mm) | - | 2 | - |
|
AC01000001809JA100RES 18 OHM 1W 5% AXIAL |
1,000 |
|
规格书 |
AC | Cut Tape (CT) | Active | 18 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
|
AC01000001101JA100RES 1.1K OHM 1W 5% AXIAL |
1,000 |
|
规格书 |
AC | Cut Tape (CT) | Active | 1.1 kOhms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
MOSX3CT631RR15JRESISTOR |
1,000 |
|
规格书 |
MOS | Tape & Reel (TR) | Active | 150 mOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 200°C | Axial | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) | - | 2 | - |
|
|
AC01000008209JA100RES 82 OHM 1W 5% AXIAL |
995 |
|
规格书 |
AC | Cut Tape (CT) | Active | 82 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
|
AC01000001500JA100RES 150 OHM 1W 5% AXIAL |
995 |
|
规格书 |
AC | Cut Tape (CT) | Active | 150 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
|
AC01000003309JA100RES 33 OHM 1W 5% AXIAL |
993 |
|
规格书 |
AC | Cut Tape (CT) | Active | 33 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
|
AC01000002009JA100RES 20 OHM 1W 5% AXIAL |
940 |
|
规格书 |
AC | Cut Tape (CT) | Active | 20 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.169" Dia x 0.433" L (4.30mm x 11.00mm) | - | 2 | - |
|
FW20A27R0JARES 27 OHM 5% 2W AXIAL |
1,895 |
|
规格书 |
FWxxA | Tape & Reel (TR) | Active | 27 Ohms | ±5% | 2W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - | 2 | - |
|
|
FW20A7R50JARES 7.5 OHM 5% 2W AXIAL |
1,000 |
|
规格书 |
FWxxA | Tape & Reel (TR) | Active | 7.5 Ohms | ±5% | 2W | Wirewound | Fusible, Safety | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.236" Dia x 0.472" L (6.00mm x 12.00mm) | - | 2 | - |
