在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3613C221KFIXED IND 220UH 100MA 10 OHM SMD TE Connectivity Passive Product |
3,183 |
|
规格书 |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -30°C ~ 100°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
3613C220KFIXED IND 22UH 180MA 3.2 OHM SMD TE Connectivity Passive Product |
2,038 |
|
规格书 |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

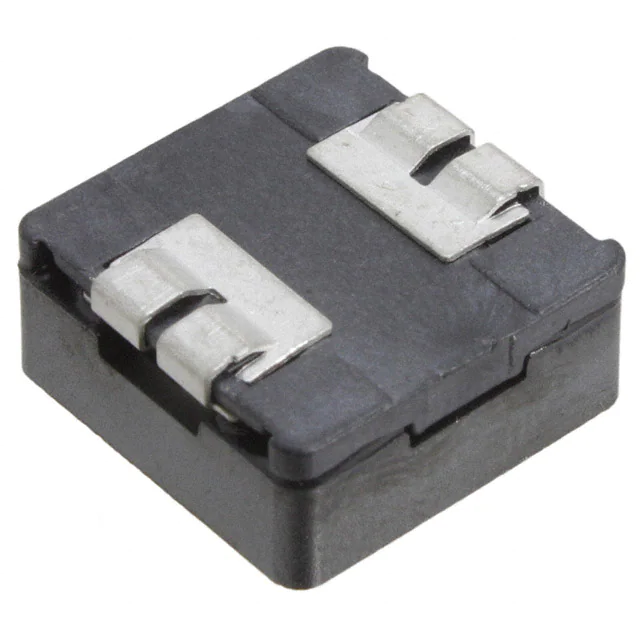

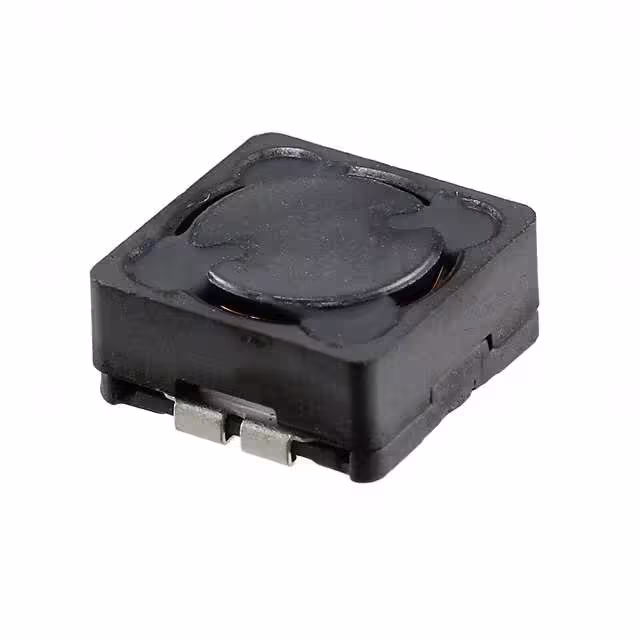

3631B471KLFIXED IND 470UH 500MA 970MOHM SM TE Connectivity Passive Product |
2,478 |
|
规格书 |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 500 mA | - | Shielded | 970mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
3631B331KLFIXED IND 330UH 600MA 660MOHM SM TE Connectivity Passive Product |
1,385 |
|
规格书 |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 600 mA | - | Shielded | 660mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
3631B470LLFIXED IND 47UH 1.6A 130 MOHM SMD TE Connectivity Passive Product |
516 |
|
规格书 |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.6 A | - | Shielded | 130mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
.jpg)
|

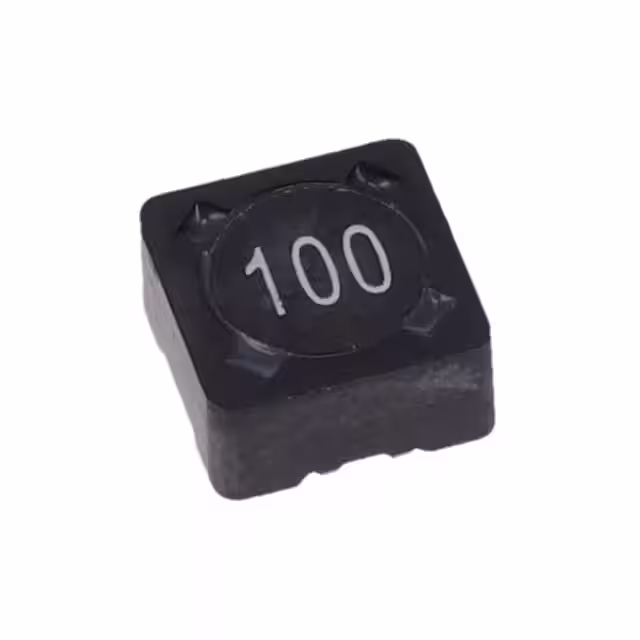

MGDQ4-00004-PFIXED IND 10UH 49 MOHM SMD TE Connectivity Passive Product |
2,045 |
|
规格书 |
MGDQ4, Coev | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.84A | - | 49mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.177" (4.50mm) |
|

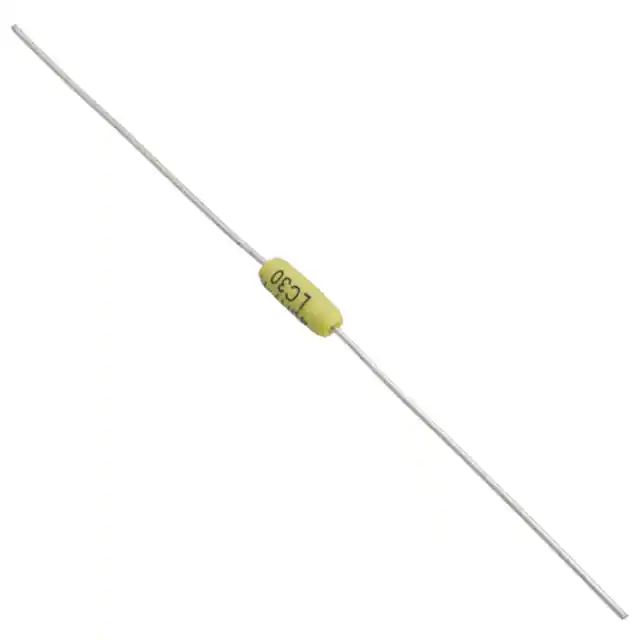

SC30220KTFIXED IND 22UH 232MA 3.3 OHM TH TE Connectivity Passive Product |
773 |
|
规格书 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 22 µH | ±10% | 232 mA | - | Shielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 100°C | 2.5 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30100KTFIXED IND 10UH 219MA 3.7 OHM TH TE Connectivity Passive Product |
501 |
|
规格书 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 10 µH | ±10% | 219 mA | - | Shielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|

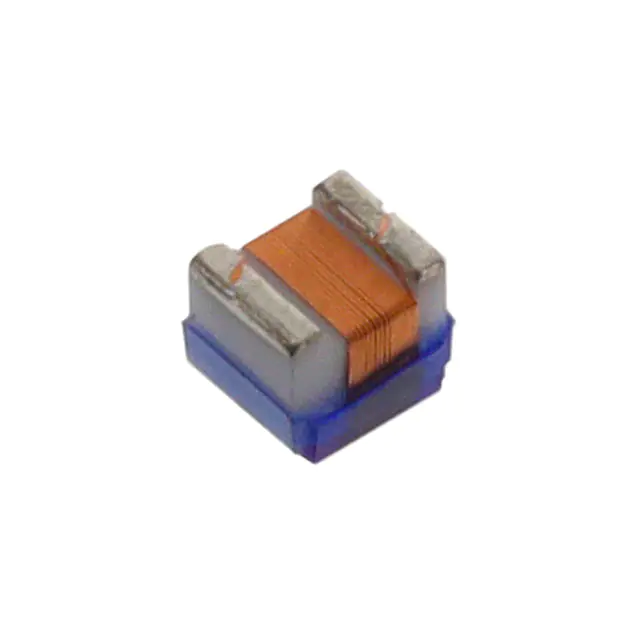

36502C56NJTDGFIXED IND 56NH 1A 180 MOHM SMD TE Connectivity Passive Product |
5,910 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
36502A7N5JTDGFIXED IND 7.5NH 600MA 140MOHM SM TE Connectivity Passive Product |
5,765 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 600 mA | - | Unshielded | 140mOhm Max | 50 @ 1GHz | 4.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
