在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0402HP-15NJ-TFIXED IND 15NH 1A 130 MOHM SMD |
15,639 |
|
规格书 |
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 26 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
AISC-0402-8N2G-TFIXED IND 8.2NH 680MA 100MOHM SM |
13,788 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±2% | 680 mA | - | Unshielded | 100mOhm Max | 25 @ 250MHz | 4.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|

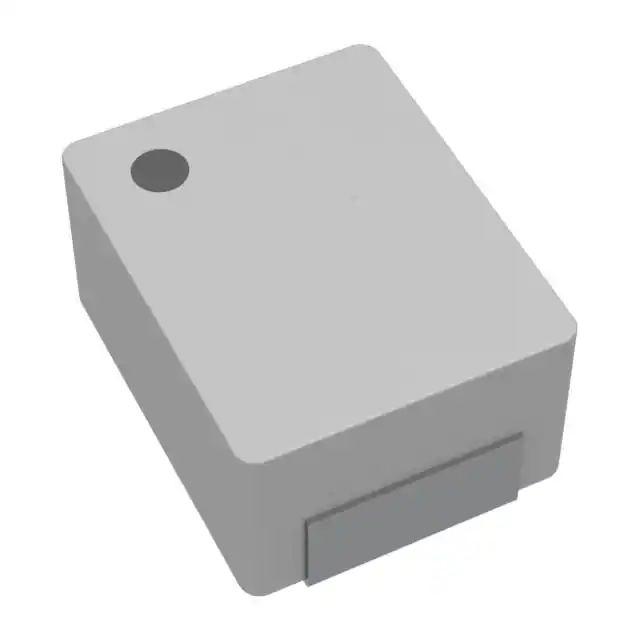

HMLQ20161T-R47MDRFIXED IND 470NH 4.4A 32MOHM SMD |
13,353 |
|
规格书 |
HMLQ20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 4.4 A | 4.5A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CM322522-680KLFIXED IND 68UH 65MA 9 OHM SMD |
12,931 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 65 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-1R2KLFIXED IND 1.2UH 215MA 750MOHM SM |
11,990 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 215 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

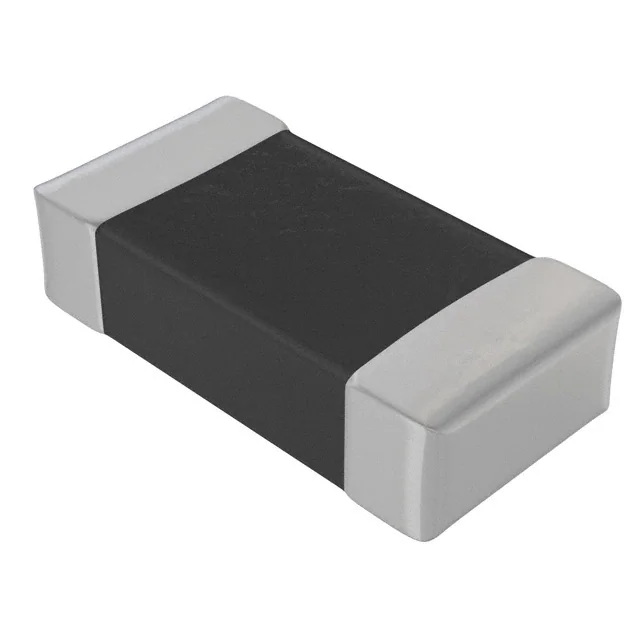

AIML-1206-8R2K-TFIXED IND 8.2UH 25MA 800MOHM SMD |
11,169 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 55 @ 4MHz | 31MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
CM322522-R47MLFIXED IND 470NH 290MA 440MOHM SM |
10,308 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 290 mA | - | Unshielded | 440mOhm Max | 25 @ 25.2MHz | 160MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
AISC-0402-12NG-TFIXED IND 12NH 640MA 120MOHM SMD |
10,001 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
CM322522-1R5KLFIXED IND 1.5UH 210MA 750MOHM SM |
9,478 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 210 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 90MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM322522-R68MLFIXED IND 680NH 260MA 550MOHM SM |
8,939 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 260 mA | - | Unshielded | 550mOhm Max | 25 @ 25.2MHz | 135MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
PE-0603CD220GTTFIXED IND 22NH 700MA 190MOHM SMD |
8,674 |
|
规格书 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 700 mA | - | Unshielded | 190mOhm Max | 35 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
AISC-0402-5N6G-TFIXED IND 5.6NH 760MA 83MOHM SMD |
8,375 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±2% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AISC-0402-47NG-TFIXED IND 47NH 150MA 750MOHM SMD |
8,304 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 150 mA | - | Unshielded | 750mOhm Max | 20 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
CM322522-3R3JLFIXED IND 3.3UH 180MA 1.2OHM SMD |
7,980 |
|
规格书 |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 180 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
BWLD001810104R7K00INDUCTOR RF |
7,975 |
|
规格书 |
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | - | 420mA | Unshielded | 970mOhm | 16 @ 7.96MHz | 51MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.041" (1.05mm) |
|
SDCL1V2512-4R7M-RIND 4.7 UH 1.35A SMT |
7,873 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.35A | Shielded | 236mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
AISC-0402HP-2N2B-TFIXED IND 2.2NH 2.1A 38 MOHM SMD |
7,539 |
|
规格书 |
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.2nH | 2.1 A | - | Unshielded | 38mOhm Max | 22 @ 250MHz | 8.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
.jpg)
|

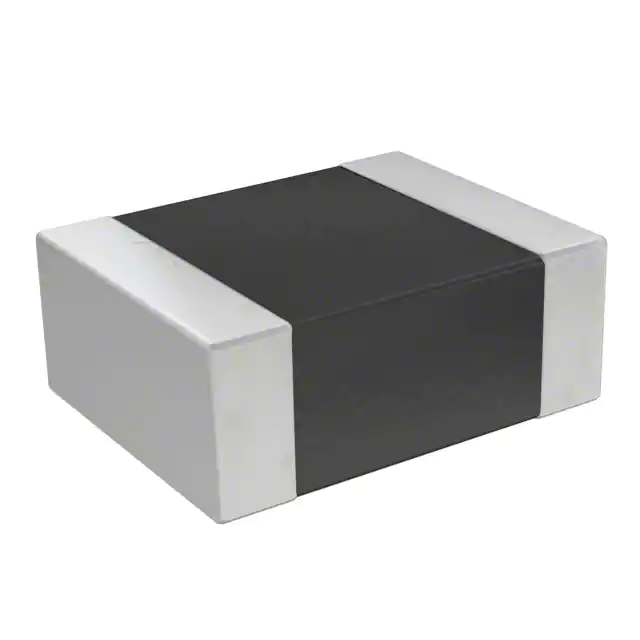

AIML-1008HC-3R3M-TFIXED IND 3.3UH 1.3A 120MOHM SMD |
7,064 |
|
规格书 |
AIML-1008HC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.3 A | - | Shielded | 120mOhm | - | 30MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
PE-0603CD680GTTFIXED IND 68NH 600MA 340MOHM SMD |
6,716 |
|
规格书 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±2% | 600 mA | - | Unshielded | 340mOhm Max | 35 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
|
SDCL1V2512-R33N-RIND 0.33 UH4.30A SMT |
5,965 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±30% | 3 A | 4.3A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
