在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWLD00241715100M00INDUCTOR RF |
3,160 |
|
规格书 |
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | 290mA | Unshielded | 900mOhm | 18 @ 2.52MHz | 25MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|

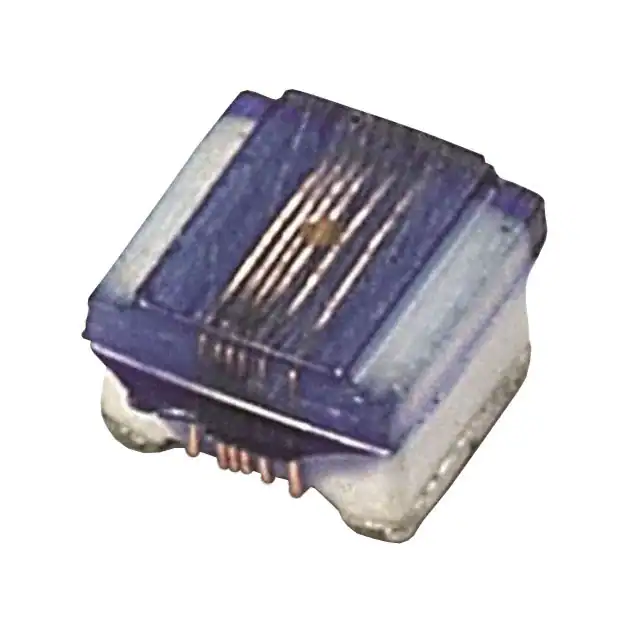

744761130AFIXED IND 30NH 600MA 220MOHM SMD |
3,000 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 30 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 100MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
-BR-Series.jpg)
|
BRC2518T3R3MFIXED IND 3.3UH 860MA 228MOHM SM |
2,955 |
|
规格书 |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 860 mA | 1.45A | Unshielded | 228mOhm Max | - | 150MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
BDQQ002012FER47MCAINDUCTOR PWR MOLDED 0.47UH 4.5A |
2,890 |
|
规格书 |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.4 A | 4.5A | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
|
|
BRHL2518T3R3MDFIXED IND 3.3UH 800MA 214.5 MOHM |
2,863 |
|
规格书 |
BR, HL Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 800 mA | 1.2A | Unshielded | 214.5mOhm Max | - | 200MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.059" (1.50mm) |
|
AISC-1008-2R7J-TFIXED IND 2.7UH 290MA 3.2OHM SMD |
2,777 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 µH | ±5% | 290 mA | - | Unshielded | 3.2Ohm Max | 22 @ 25MHz | 90MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-6R8J-TFIXED IND 6.8UH 200MA 7.7OHM SMD |
2,422 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 µH | ±5% | 200 mA | - | Unshielded | 7.7Ohm Max | 20 @ 25MHz | 40MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
VLS6045EX-2R0NFIXED IND 2UH 5.2A 18 MOHM SMD |
2,381 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2 µH | ±30% | 5.2 A | 8A | Shielded | 18mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
AISC-1008-5R6J-TFIXED IND 5.6UH 240MA 5.7OHM SMD |
2,174 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 µH | ±5% | 240 mA | - | Unshielded | 5.7Ohm Max | 20 @ 25MHz | 40MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
AISC-0805-R12G-TFIXED IND 120NH 400MA 510MOHM SM |
2,000 |
|
规格书 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
AISC-0805-R18G-TFIXED IND 180NH 400MA 640MOHM SM |
2,000 |
|
规格书 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 400 mA | - | Unshielded | 640mOhm Max | 50 @ 250MHz | 870MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
-2,00mm.jpg)
|
LB3218T330KVFIXED IND 33UH 215MA 975MOHM SMD |
2,000 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 33 µH | ±10% | 215 mA | - | Unshielded | 975mOhm Max | - | 15MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
744760127AFIXED IND 27NH 600MA 120MOHM SMD |
2,000 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 60 @ 500MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
BWLD002417151R0K00INDUCTOR RF |
2,000 |
|
规格书 |
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | - | 800mA | Unshielded | 100mOhm | 18 @ 7.96MHz | 100MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
BWLD002417153R3M00INDUCTOR RF |
2,000 |
|
规格书 |
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | - | 450mA | Unshielded | 300mOhm | 18 @ 7.96MHz | 55MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
BRC2518T6R8MFIXED IND 6.8UH 680MA 364MOHM SM |
1,998 |
|
规格书 |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 680 mA | 1.05A | Unshielded | 364mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LQW2UAS22NG00LFIXED IND 22NH 1A 120 MOHM SMD |
1,990 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 22 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 2.4GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
WPN252012H1R5MTFIXED IND 1.5UH 2.4A 72MOHM SMD |
1,990 |
|
规格书 |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.4 A | 3.5A | Shielded | 72mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
AISC-0805-R012G-TFIXED IND 12NH 600MA 150MOHM SMD |
1,985 |
|
规格书 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 600 mA | - | Unshielded | 150mOhm Max | 50 @ 500MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
AISC-0603HP-8N7J-TFIXED IND 8.7NH 1A 100 MOHM SMD |
1,966 |
|
规格书 |
AISC-0603HP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 30 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
