在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0402-5N1J-TFIXED IND 5.1NH 800MA 83MOHM SMD |
8,435 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 800 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
AIMC-0402HQ-4N7C-TFIXED IND 4.7NH 600MA 130MOHM SM |
8,400 |
|
规格书 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.2nH | 600 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
SDCL1V2510-4R7M-RIND 4.7 UH 1.00A SMT |
7,975 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 900 mA | 1A | Shielded | 253mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
|
SDCL1V2510-100M-RIND 10 UH 0.70A SMT |
7,911 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 600 mA | 700mA | Shielded | 575mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
|
AISC-0402-12NJ-TFIXED IND 12NH 640MA 120MOHM SMD |
7,376 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
NR3010T3R3MFIXED IND 3.3UH 940MA 168MOHM SM |
6,300 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 940 mA | 870mA | Shielded | 168mOhm Max | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AISC-0603-R015G-TFIXED IND 15NH 550MA 150MOHM SMD |
6,000 |
|
规格书 |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 550 mA | - | Unshielded | 150mOhm Max | 37 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0402-23NJ-TFIXED IND 23NH 400MA 250MOHM SMD |
5,935 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 400 mA | - | Unshielded | 250mOhm Max | 26 @ 250MHz | 2.72GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
NLV25T-010J-EFDFIXED IND 10NH 530MA 260MOHM SMD |
5,904 |
|
规格书 |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 nH | ±5% | 530 mA | - | Unshielded | 260mOhm Max | 15 @ 100MHz | 2.15GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
SDER031B-2R2MSFIXED IND 2.2UH 2.25A 101MOHM SM |
5,887 |
|
规格书 |
SDER031B | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2.25 A | 2.4A | Shielded | 101mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AISC-0402-11NJ-TFIXED IND 11NH 640MA 120MOHM SMD |
5,871 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.68GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AISC-0402-27NJ-TFIXED IND 27NH 400MA 300MOHM SMD |
5,672 |
|
规格书 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 26 @ 250MHz | 2.48GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
-1,45mm.jpg)
|
CBC2012T2R2MVFIXED IND 2.2UH 485MA 429MOHM SM |
4,973 |
|
规格书 |
CB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 485 mA | 530mA | Unshielded | 429mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
AISC-0805-R39J-TFIXED IND 390NH 290MA 1.5OHM SMD |
4,625 |
|
规格书 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 290 mA | - | Unshielded | 1.5Ohm Max | 35 @ 250MHz | 560MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
SDCL1V2510-1R0N-RIND 1.0 UH 2.40A SMT |
4,613 |
|
规格书 |
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 1.9 A | 2.4A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
|
AISC-0603-R18G-TFIXED IND 180NH 180MA 1.38OHM SM |
4,090 |
|
规格书 |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 180 mA | - | Unshielded | 1.38Ohm Max | 25 @ 100MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

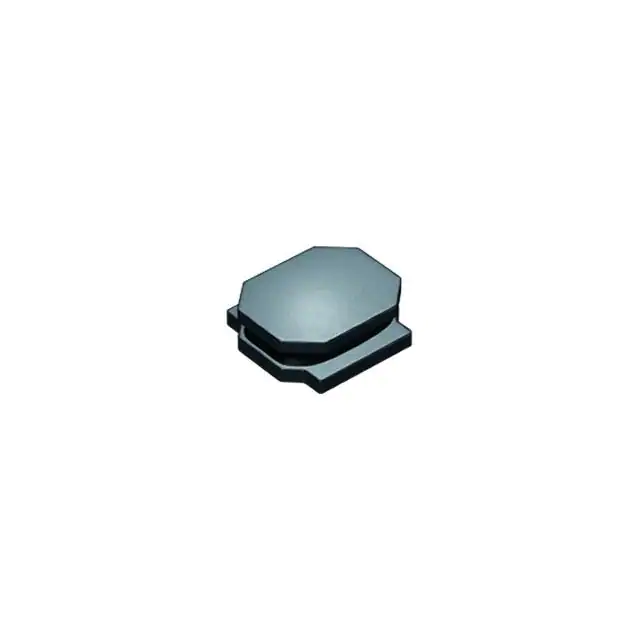

LCXNE3030MKT1R5NNFIXED IND 1.5UH 1.6A 66 MOHM SMD |
4,000 |
|
规格书 |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.6 A | 1.7A | Unshielded | 55mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
IMC1008ERR33JFIXED IND 330NH 500MA 900MOHM SM |
3,990 |
|
规格书 |
IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 500 mA | - | Unshielded | 900mOhm Max | 45 @ 100MHz | 570MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
SDER031T-100MSFIXED IND 10UH 850MA 438MOHM SMD |
3,988 |
|
规格书 |
SDER031T | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 850 mA | 680mA | Shielded | 438mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LSXND3030QKT6R8MNGFIXED IND 6.8UH 870MA 192MOHM SM |
3,914 |
|
规格书 |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 880 mA | 870mA | Shielded | 192mOhm Max | - | 36MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
