在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00mm.jpg)
|

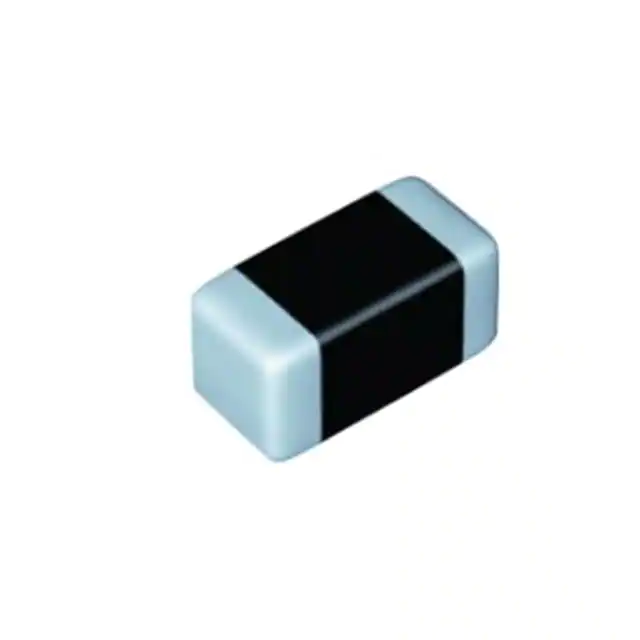

LB3218T331KVFIXED IND 330UH 65MA 9.1 OHM SMD |
5,384 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 330 µH | ±10% | 65 mA | - | Unshielded | 9.1Ohm Max | - | 4MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
E.JPG)
|
VLS2012ET-3R3MFIXED IND 3.3UH 840MA 228MOHM SM |
4,000 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 3.3 µH | ±20% | 840 mA | 840mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
NLV32T-1R2J-EFDFIXED IND 1.2UH 390MA 750MOHM SM |
3,921 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 390 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SDER041B-100MSFIXED IND 10UH 1.45A 228MOHM SMD |
3,901 |
|
规格书 |
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.45 A | 1A | Shielded | 228mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
AISC-1008-R10G-TFIXED IND 100NH 650MA 560MOHM SM |
3,900 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-R18G-TFIXED IND 180NH 620MA 700MOHM SM |
3,829 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 620 mA | - | Unshielded | 700mOhm Max | 50 @ 100MHz | 750MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
MBKK1608HR68NFIXED IND 680NH 1.2A 120MOHM SMD |
3,805 |
|
规格书 |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±30% | 1.2 A | 950mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
SDER041B-150MSFIXED IND 15UH 1.05A 407MOHM SMD |
3,729 |
|
规格书 |
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.05 A | 720mA | Shielded | 407mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
LB3218T100KVFIXED IND 10UH 340MA 250MOHM SMD |
3,371 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±10% | 340 mA | - | Unshielded | 250mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 (3218 Metric) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
LB3218T102KVFIXED IND 1MH 39MA 35.1 OHM SMD |
3,330 |
|
规格书 |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1 mH | ±10% | 39 mA | - | Unshielded | 35.1Ohm Max | - | 2.4MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
|
MLP2520S3R3MT0S1FIXED IND 3.3UH 1A 169 MOHM SMD |
3,226 |
|
规格书 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1 A | - | Shielded | 169mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-BR-Series.jpg)
|
BRL2518T3R3MFIXED IND 3.3UH 580MA 390MOHM SM |
3,187 |
|
规格书 |
BR, L Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 580 mA | 800mA | Unshielded | 390mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|
|
MBKK1608HR24NFIXED IND 240NH 2.3A 50 MOHM SMD |
3,000 |
|
规格书 |
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 240 nH | ±30% | 2.3 A | 1.65A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
ASMPH-0805-1R5M-TFIXED IND 1.5UH 1.1A 160MOHM SMD |
2,985 |
|
规格书 |
ASMPH-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.1 A | 800mA | Shielded | 160mOhm | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
WCLA2520V1-R22-RCHIP IND 0.22UH 1.1A SMT 2 PAD |
2,925 |
|
规格书 |
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±10% | 1.1 A | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 450MHz | AEC-Q200 | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-6R8-RCHIP IND 6.8UH 0.432A SMT 2 PAD |
2,925 |
|
规格书 |
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 432 mA | - | Unshielded | 720mOhm Max | 12 @ 7.96MHz | 33MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-470-RCHIP IND 47.0UH 0.1A SMT 2 PAD |
2,900 |
|
规格书 |
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 8.34Ohm Max | 20 @ 2.52MHz | 18MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
-Height-1.00mm.jpg)
|
DFE252010P-R68M=P2FIXED IND 680NH 3A 0.048OHM SMD |
2,674 |
|
规格书 |
DFE252010P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 3 A | 4.1A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NRV2012T4R7MGFVFIXED IND 4.7UH 750MA 390MOHM SM |
2,470 |
|
规格书 |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 1.1A | Unshielded | 390mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
-BR-Series.jpg)
|
BRC1608TR35MFIXED IND 350NH 810MA 80MOHM SMD |
2,429 |
|
规格书 |
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 350 nH | ±20% | 810 mA | 1.4A | Unshielded | 80mOhm | - | 300MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
