在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS3015T6R8MNGHVFIXED IND 6.8UH 880MA 192MOHM SM |
4,255 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 880 mA | 870mA | Shielded | 192mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

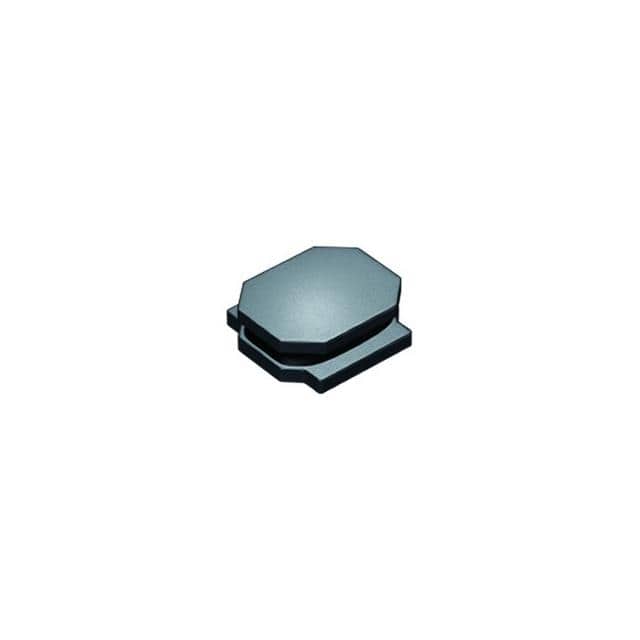

LCXNE3030KKT1R5NNFIXED IND 1.5UH 1.37A 90MOHM SMD |
3,996 |
|
规格书 |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.37 A | 1.44A | Unshielded | 75mOhm | - | 99MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXNE3030KKT150MNFIXED IND 15UH 450MA 660MOHM SMD |
3,965 |
|
规格书 |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 480 mA | 450mA | Unshielded | 550mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
VLS201612ET-3R3MFIXED IND 3.3UH 790MA 357MOHM SM |
3,908 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 790 mA | 790mA | Shielded | 357mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
E.JPG)
|
VLS2012ET-1R0NFIXED IND 1UH 1.45A 86 MOHM SMD |
3,693 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1 µH | ±30% | 1.45 A | 1.45A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW18ASR22G0CDFIXED IND 220NH 200MA 2.1OHM SMD |
3,459 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 220 nH | ±2% | 200 mA | - | Unshielded | 2.1Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

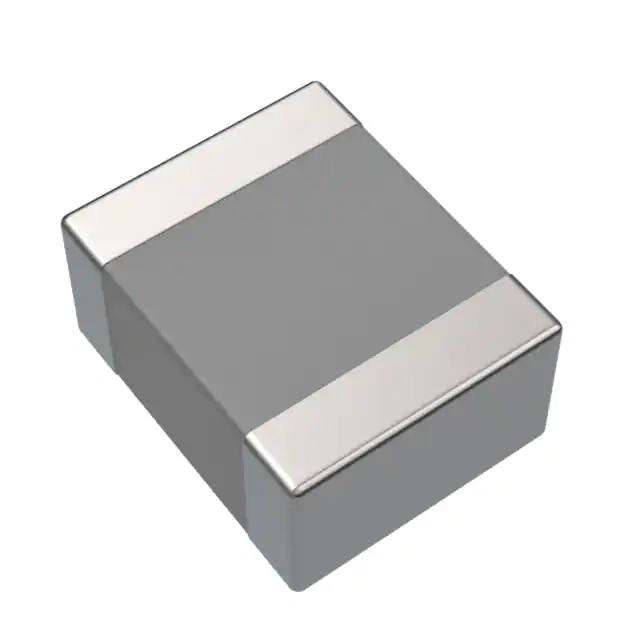

HEI252012A-R10N-Q8DHFIXED IND 100NH SMD |
2,753 |
|
规格书 |
HEI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
DFE252010F-R82M=P2FIXED IND 820NH 3.3A 0.04OHM SMD |
2,721 |
|
规格书 |
DFE252010F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 3.3 A | 4.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CW201212-12NJFIXED IND 12NH 600MA 80 MOHM SMD |
2,707 |
|
规格书 |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 80mOhm | 60 @ 500MHz | 4.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|

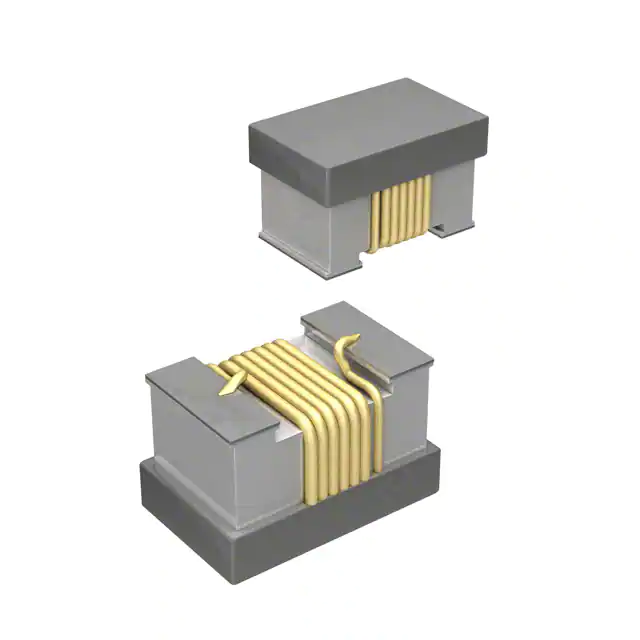

CW160808-27NJFIXED IND 27NH 600MA 220MOHM SMD |
2,702 |
|
规格书 |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 27 nH | ±5% | 600 mA | - | Unshielded | 220mOhm | 35 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
BDHE002520121R5MQ1FIXED IND 1.5UH 3.1A 65 MOHM SMD |
2,647 |
|
规格书 |
BDHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.1 A | 4.2A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW18AS68NG0CDFIXED IND 68NH 600MA 340MOHM SMD |
2,331 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 68 nH | ±2% | 600 mA | - | Unshielded | 340mOhm Max | 37 @ 200MHz | 1.7GHz | - | -40°C ~ 85°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CW160808-47NJFIXED IND 47NH 600MA 280MOHM SMD |
2,271 |
|
规格书 |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm | 35 @ 250MHz | 2.1GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW201212-R27JFIXED IND 270NH 250MA 1.46OHM SM |
1,913 |
|
规格书 |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 250 mA | - | Unshielded | 1.46Ohm | 45 @ 250MHz | 850MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
NRS6028T3R0NMGJFIXED IND 3UH 3.4A 29.9 MOHM SMD |
1,900 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 29.9mOhm Max | - | 55MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
AISC-1008F-3R3K-T (2K/REEL)FIXED IND 3.3UH 450MA 1.7OHM SMD |
1,830 |
|
规格书 |
AISC-1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 450 mA | - | Unshielded | 1.7Ohm Max | 23 @ 50MHz | 100MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
PM0603-39NJ-RCFIXED IND 39NH 600MA 250MOHM SMD |
1,760 |
|
规格书 |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 39 nH | ±5% | 600 mA | - | Unshielded | 250mOhm | 35 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
VLS2010ET-6R8MFIXED IND 6.8UH 570MA 648MOHM SM |
1,707 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 6.8 µH | ±20% | 570 mA | 570mA | Shielded | 648mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
|
NRS3015T220MNGHVFIXED IND 22UH 470MA 624MOHM SMD |
1,604 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 470 mA | 470mA | Shielded | 624mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS2010ET-1R5NFIXED IND 1.5UH 1.2A 156MOHM SMD |
1,525 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1.5 µH | ±30% | 1.2 A | 1.2A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
