在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLP2016V1R0MT0S1FIXED IND 1UH 1.2A 150 MOHM SMD |
2,890 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.2 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
B82496C3189Z000FIXED IND 1.8NH 1.5A 33 MOHM SMD |
2,756 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.8 nH | ±0.2nH | 1.5 A | - | Unshielded | 33mOhm Max | 12 @ 100MHz | 12GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
MLP2016V1R5MT0S1FIXED IND 1.5UH 1.15A 175MOHM SM |
2,385 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.15 A | - | Shielded | 175mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
.jpg)
|
VLS201610HBX-3R3M-1FIXED IND 3.3UH 1.2A 252MOHM SMD |
2,186 |
|
规格书 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.2 A | 1.02A | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
BWVF003030122R2M00FIXED IND 2.2UH 2A 92 MOHM SMD |
2,058 |
|
规格书 |
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2 A | 2.1A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
.jpg)
|
LQW2UASR15G0CLFIXED IND 150NH 580MA 700MOHM SM |
2,000 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 150 nH | ±2% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

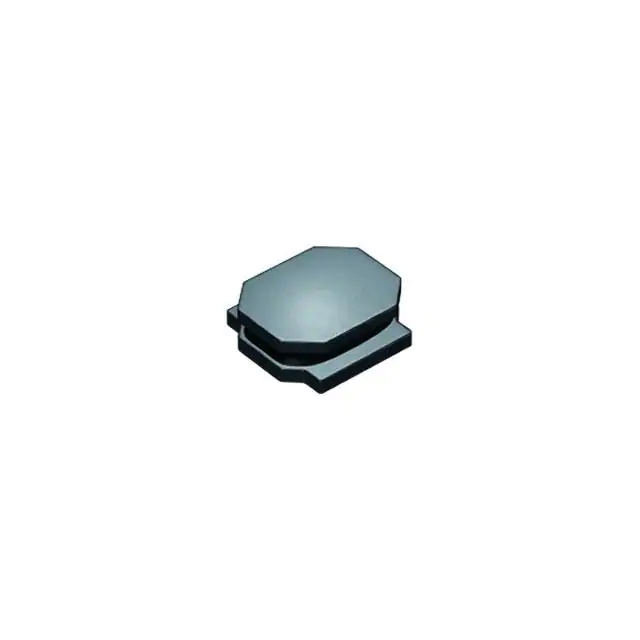

LSXND6060MKT1R0NMGFIXED IND 1UH 2.4A 60 MOHM SMD |
2,000 |
|
规格书 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.4 A | 3A | Shielded | 60mOhm Max | - | 95MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
LSXND6060MKT3R3NMGFIXED IND 3.3UH 1.7A 126MOHM SMD |
2,000 |
|
规格书 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 1.7 A | 1.8A | Shielded | 126mOhm Max | - | 42MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
LQW2UAS82NG0CLFIXED IND 82NH 1A 220 MOHM SMD |
1,864 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 1 A | - | Unshielded | 220mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
BWVF002520121R5M00FIXED IND 1.5UH 2.3A 68 MOHM SMD |
1,715 |
|
规格书 |
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 2.3 A | 1.95A | Shielded | 68mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|

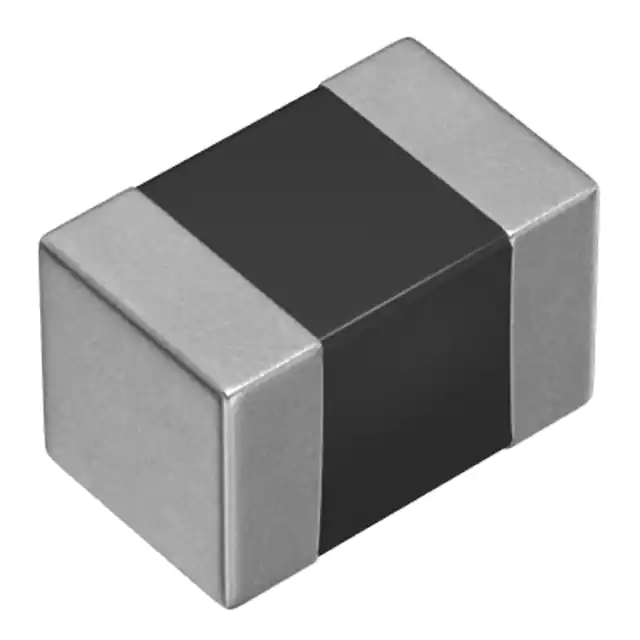

MLP2012S1R5TT0S1FIXED IND 1.5UH 700MA 351MOHM SM |
1,639 |
|
规格书 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 700 mA | - | Shielded | 351mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
|
|
BWVF003030151R5M00FIXED IND 1.5UH 2.6A 63 MOHM SMD |
1,320 |
|
规格书 |
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 2.6 A | 3A | Shielded | 63mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQW2UASR33G0CLFIXED IND 330NH 450MA 1.05OHM SM |
1,296 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 330 nH | ±2% | 450 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UAS12NG0CLFIXED IND 12NH 1A 90 MOHM SMD |
1,274 |
|
规格书 |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 12 nH | ±2% | 1 A | - | Unshielded | 90mOhm Max | 50 @ 500MHz | 3.3GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

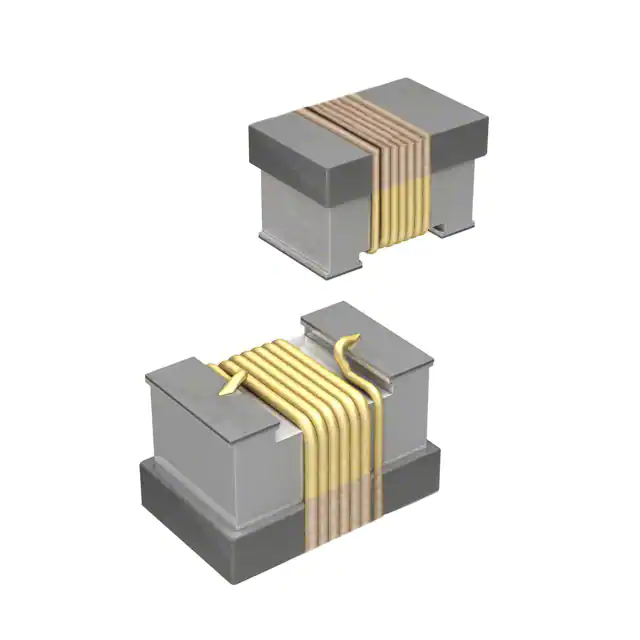

CW100505-82NJFIXED IND 82NH 150MA 1.25OHM SMD |
29,079 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 150 mA | - | Unshielded | 1.25Ohm | 20 @ 150MHz | 1.5GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-8N2JFIXED IND 8.2NH 680MA 104MOHM SM |
19,090 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 680 mA | - | Unshielded | 104mOhm | 25 @ 250MHz | 4.4GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-6N8JFIXED IND 6.8NH 680MA 83MOHM SMD |
11,772 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 680 mA | - | Unshielded | 83mOhm | 20 @ 250MHz | 4.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-R10JFIXED IND 100NH 120MA 2.52OHM SM |
9,174 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 120 mA | - | Unshielded | 2.52Ohm | 20 @ 150MHz | 1.3GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW100505-2N2DFIXED IND 2.2NH 960MA 70MOHM SMD |
8,731 |
|
规格书 |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.3nH | 960 mA | - | Unshielded | 70mOhm | 18 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
HL021R6BTTRFIXED IND 1.6NH 339MA 137MOHM SM |
8,692 |
|
规格书 |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.6 nH | ±0.1nH | 339 mA | - | Unshielded | 137mOhm Max | 25 @ 450MHz | 13.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
