在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN3N3D80DFIXED IND 3.3NH 2A 0.03OHM SMD |
1,308 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±0.5nH | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
VLS252010ET-1R5NFIXED IND 1.5UH 1.45A 128MOHM SM |
13,725 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.45 A | 1.45A | Shielded | 128mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
TYA2016101R0M-10FIXED IND 1UH 2A 95 MOHM SMD |
11,828 |
|
规格书 |
TYA201610 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2 A | 3.3A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.045" (1.15mm) |
-Height-1.00mm.jpg)
|
1269AS-H-R47M=P2FIXED IND 470NH 3.5A 46 MOHM SMD |
10,542 |
|
规格书 |
DFE252010C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 3.5 A | - | Shielded | 46mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

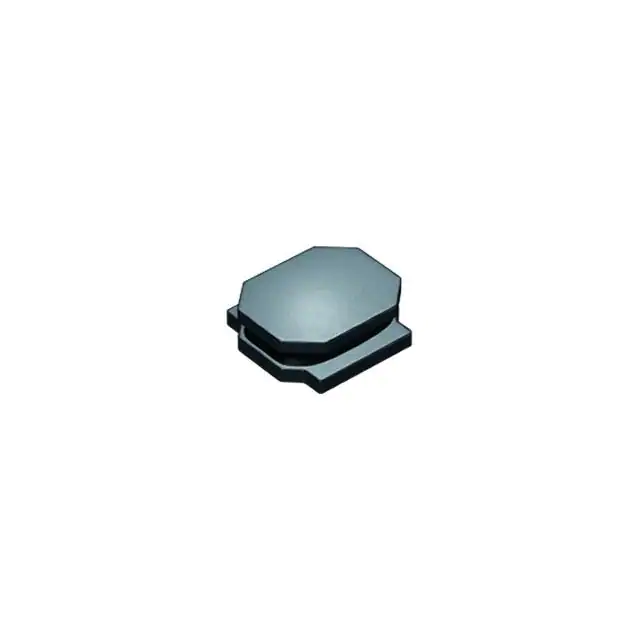

LSXND4040KKL220MDGFIXED IND 22UH 500MA 684MOHM SMD |
9,990 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 450mA | Shielded | 684mOhm Max | - | 19MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXND4040KKL3R3MDGFIXED IND 3.3UH 1.4A 120MOHM SMD |
9,983 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.1A | Shielded | 120mOhm Max | - | 58MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXND4040KKL330MDGFIXED IND 33UH 350MA 1.08OHM SMD |
9,905 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 400 mA | 350mA | Shielded | 1.08Ohm Max | - | 15MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|

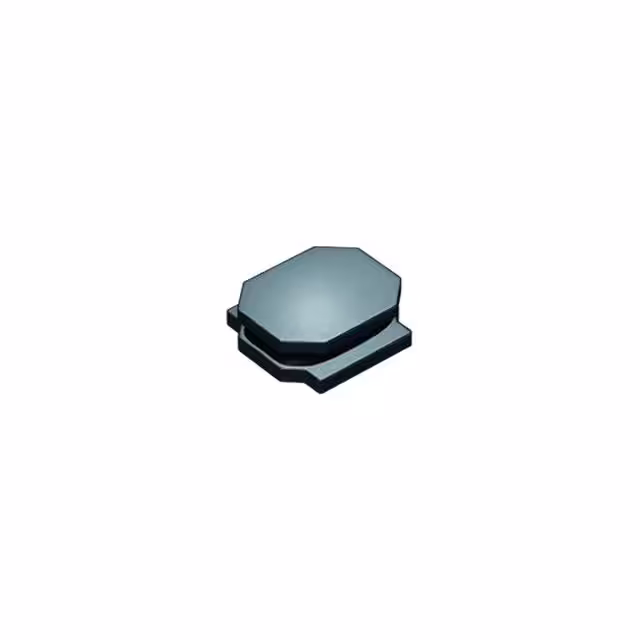

LSXND4040KKL150MDGFIXED IND 15UH 600MA 516MOHM SMD |
9,855 |
|
规格书 |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 600 mA | 540mA | Shielded | 516mOhm Max | - | 24MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
TYA2520102R2M-10FIXED IND 2.2UH 1.5A 155MOHM SMD |
9,402 |
|
规格书 |
TYA252010 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 1.9A | Shielded | 155mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.045" (1.15mm) |
|
MLP2520V4R7ST0S1FIXED IND 4.7UH 800MA 286MOHM SM |
8,705 |
|
规格书 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | - | Shielded | 286mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRN4012T-2R2MFIXED IND 2.2UH 1.9A 60 MOHM SMD |
8,610 |
|
规格书 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.65A | Shielded | 60mOhm | 6 @ 100kHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LQM21PN2R2MCADFIXED IND 2.2UH 1.05A 250MOHM SM |
8,267 |
|
规格书 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.05 A | 300mA | Shielded | 250mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LSCNE2016FETR47MCBFIXED INDUCTOR 0.47UH SMD MCOIL |
7,769 |
|
规格书 |
LSCN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 3.2 A | 4A | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.026" (0.65mm) |
|
|
VLS252010ET-3R3MFIXED IND 3.3UH 940MA 275MOHM SM |
7,693 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 940 mA | 940mA | Shielded | 275mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

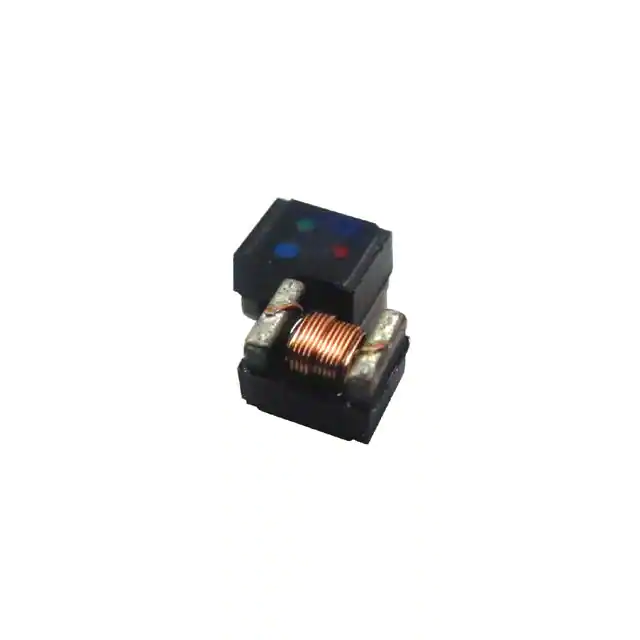

BWLS002417154R7J00FIXED IND 4.7UH 530MA 1.6OHM SMD |
5,990 |
|
规格书 |
BWLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 530 mA | - | Unshielded | 1.6Ohm Max | 20 @ 7.9MHz | 70MHz | - | -25°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
55082713400FIXED IND 270NH 180MA 1 OHM SMD |
5,602 |
|
规格书 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 180 mA | - | Unshielded | 1Ohm Max | 35 @ 100MHz | 870MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
CM453232-2R7KLFIXED IND 2.7UH 370MA 750MOHM SM |
4,804 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
VLS252012ET-4R7MFIXED IND 4.7UH 810MA 405MOHM SM |
4,674 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 810 mA | 1.05A | Shielded | 405mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

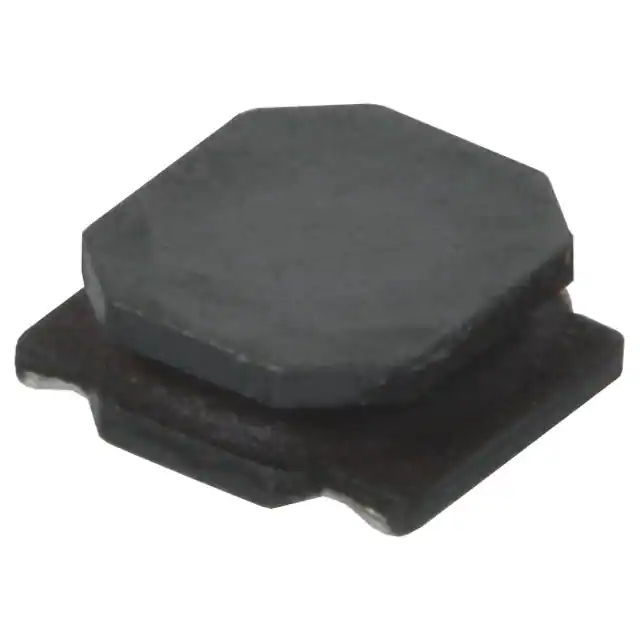

NR3012T2R2MFIXED IND 2.2UH 1.2A 96 MOHM SMD |
4,626 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.1A | Shielded | 96mOhm Max | - | 70MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|

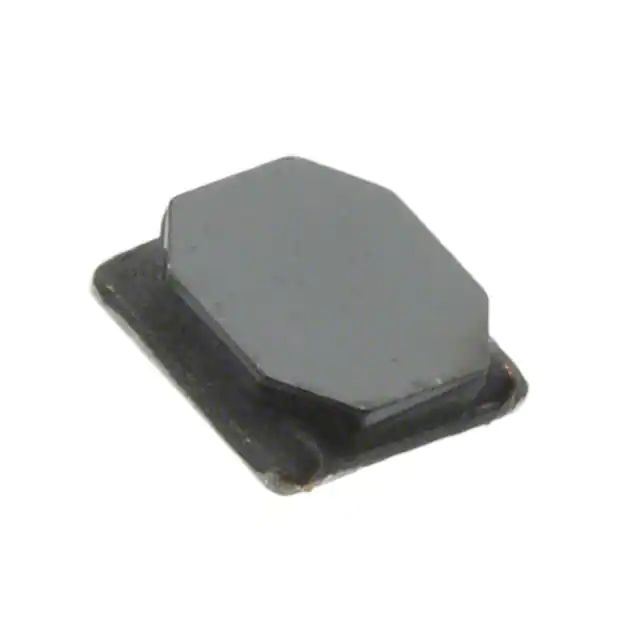

SRN4012T-1R5MFIXED IND 1.5UH 2A 50 MOHM SMD |
4,500 |
|
规格书 |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2 A | 2.2A | Shielded | 50mOhm | 6 @ 100kHz | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
