在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

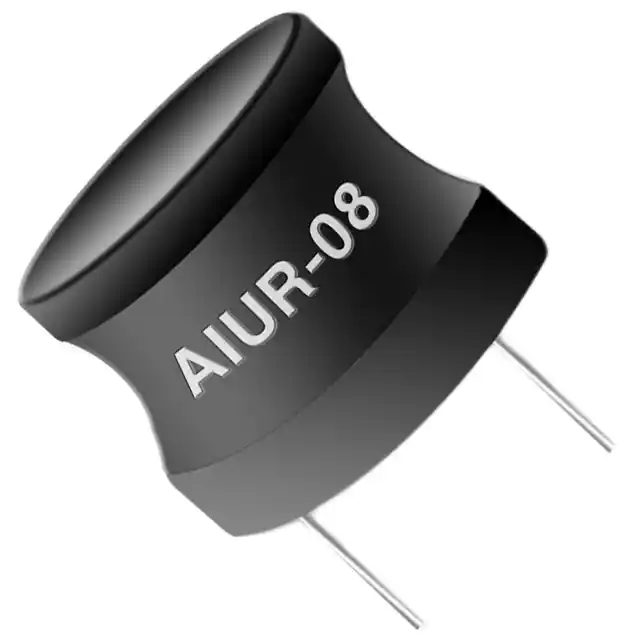

AIUR-08-470KFIXED IND 47UH 2.5A 83 MOHM TH |
1,208 |
|
规格书 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.5 A | - | Unshielded | 83mOhm Max | - | - | - | -25°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
|
AIUR-09-181KFIXED IND 180UH 840MA 620MOHM TH |
1,200 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 840 mA | - | Unshielded | 620mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-101KFIXED IND 100UH 1.3A 360 MOHM TH |
1,194 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.3 A | - | Unshielded | 360mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
B78148S1475J000FIXED IND 4.7MH 55MA 78 OHM TH |
11,902 |
|
规格书 |
BC | Radial | Tape & Reel (TR) | Active | Wirewound | - | 4.7 mH | ±5% | 55 mA | - | Unshielded | 78Ohm Max | 35 @ 252kHz | 700kHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

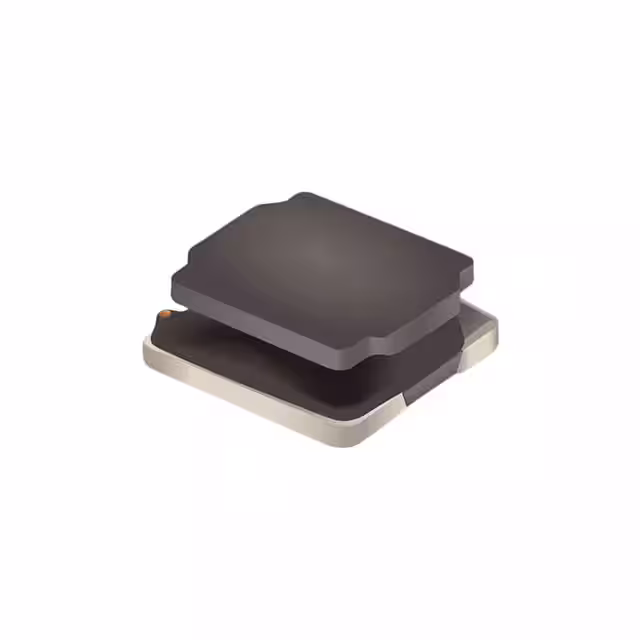

SRN3012TA-1R5YFIXED IND 1.5UH 1.85A 56MOHM SMD |
9,781 |
|
规格书 |
SRN3012TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.85 A | 1.7A | Shielded | 56mOhm | 15 @ 1MHz | 130MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
PE-0603CD680JTTFIXED IND 68NH 600MA 340MOHM SMD |
9,719 |
|
规格书 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm Max | 35 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
LCXND4040MKL3R3MDGFIXED IND 3.3UH 1.7A 84 MOHM SMD |
9,000 |
|
规格书 |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 1.4A | Unshielded | 70mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LQW15CA39NJ00DFIXED IND 39NH 1.1A 0.075OHM SMD |
8,685 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 nH | ±5% | 1.1 A | - | Unshielded | 75mOhm Max | - | 2.7GHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
LCXND4040MKL6R8MDGFIXED IND 6.8UH 1.3A 150MOHM SMD |
6,337 |
|
规格书 |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Unshielded | 125mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS201612ET-1R0NFIXED IND 1UH 1.5A 93 MOHM SMD |
5,966 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.5 A | 1.5A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LCXNE2424MKT4R7MNGFIXED IND 4.7UH 650MA 360MOHM SM |
5,000 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | 1.15A | Unshielded | 300mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LCXNE2424KKTR68NNFIXED IND 680NH 1.57A 72MOHM SMD |
5,000 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±30% | 1.57 A | 2.2A | Unshielded | 60mOhm | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LCXNE2424MKT1R5NNGFIXED IND 1.5UH 1.15A 120MOHM SM |
5,000 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.15 A | 2.1A | Unshielded | 100mOhm | - | 89MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|

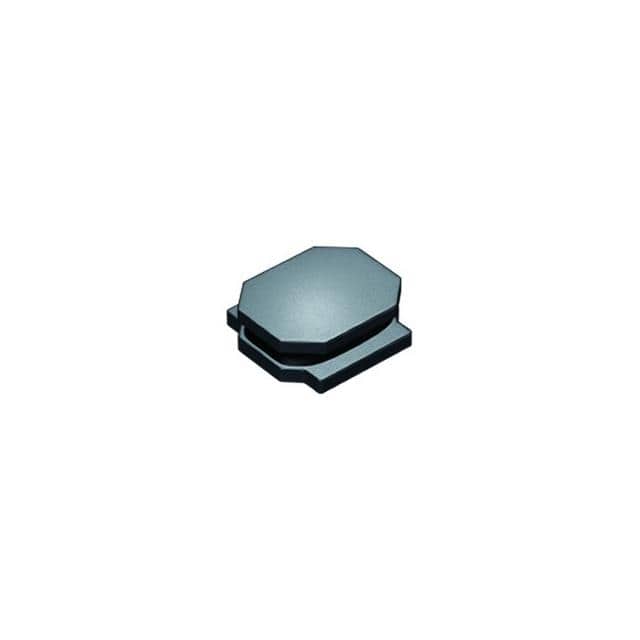

LCXNE2424MKTR47NNGFIXED IND 470NH 2.1A 60 MOHM SMD |
5,000 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 2.1 A | 2.9A | Unshielded | 50mOhm | - | 180MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LCXNE2424MKT3R3MNGFIXED IND 3.3UH 750MA 270MOHM SM |
5,000 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 750 mA | 1.4A | Unshielded | 225mOhm | - | 56MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|

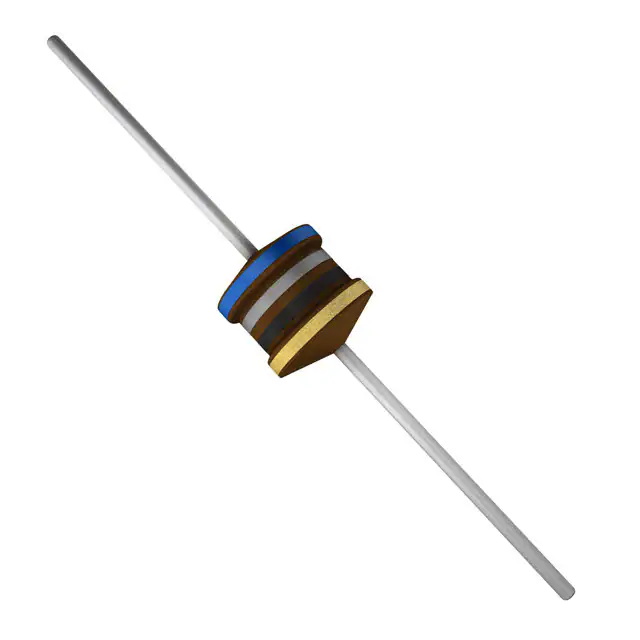

B78108E1683J000FIXED IND 68UH 780MA 900 MOHM TH |
4,750 |
|
规格书 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 780 mA | 720mA | Unshielded | 900mOhm Max | 45 @ 796kHz | 6.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

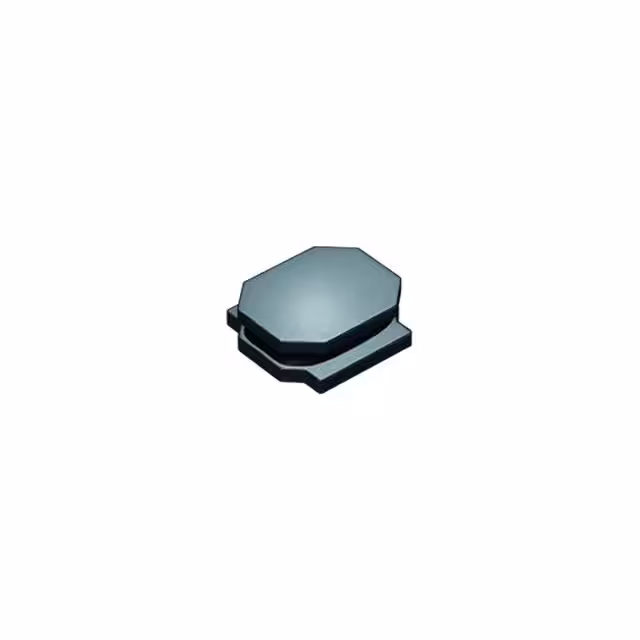

LCXNE2424MKT1R0NNGFIXED IND 1UH 1.3A 92.4 MOHM SMD |
4,625 |
|
规格书 |
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.3 A | 2.35A | Unshielded | 77mOhm | - | 101MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
BKPB002016104R7MA2FIXED IND 4.7UH 800MA 210MOHM SM |
4,386 |
|
规格书 |
BKPB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | 200mA | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSXBD3030MKT220MFIXED IND 22UH 420MA 756MOHM SMD |
3,974 |
|
规格书 |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 420 mA | 375mA | Shielded | 630mOhm | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
BDQQ001412FER11NCAINDUCTOR PWR MOLDED 0.11UH 6.8A |
3,960 |
|
规格书 |
BDQQ | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 110 nH | ±30% | 4.5 A | 6.8A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.026" (0.65mm) |
