在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP3012TA-6R8MFIXED IND 6.8UH 1.4A 400MOHM SMD |
3,968 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 1.4 A | 2A | Shielded | 400mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SRP3012TA-1R5MFIXED IND 1.5UH 3A 85 MOHM SMD |
3,700 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 3 A | 4A | Shielded | 85mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SRP3012TA-R15YFIXED IND 150NH 10A 11 MOHM SMD |
2,692 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 150 nH | ±30% | 10 A | 14A | Shielded | 11mOhm Max | - | 195MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SRP3012TA-2R2MFIXED IND 2.2UH 2.7A 115MOHM SMD |
2,208 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 2.7 A | 3.4A | Shielded | 115mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
SRP3012TA-4R7MFIXED IND 4.7UH 1.6A 293MOHM SMD |
2,191 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 1.6 A | 2.8A | Shielded | 293mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
EXL1V0703-4R7-RFIXED IND 4.7UH 9A 26.7MOHM SMD |
1,415 |
|
规格书 |
EXL1V0703 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 9 A | 12.2A | Shielded | 26.7mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|

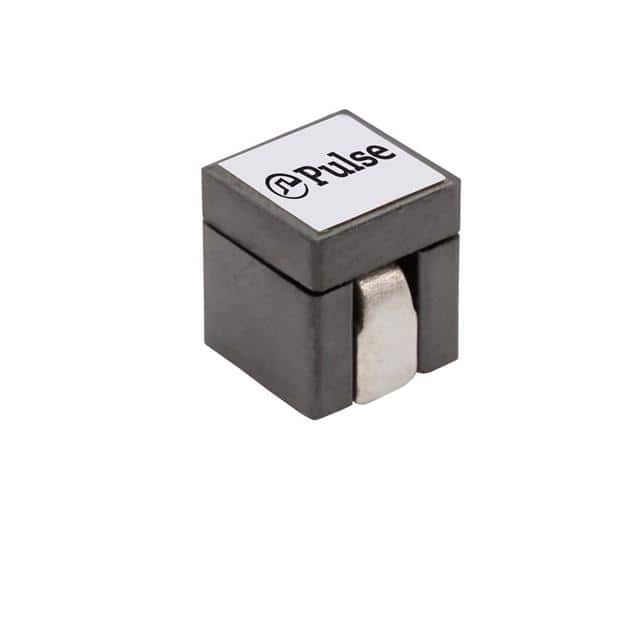

PG2292.700HLTINDUCTOR PWR BEAD 70NH 60A |
1,147 |
|
规格书 |
PG2292.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 53 A | 60A | Unshielded | 0.09mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.236" W (6.10mm x 6.00mm) | 0.276" (7.00mm) |
|
B82472G4333M000FIXED IND 33UH 940MA 250MOHM SMD |
1,110 |
|
规格书 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 940 mA | 720mA | Shielded | 250mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
SBC9-100-422FIXED IND 10UH 4.2A 30 MOHM TH |
959 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 9.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
|
EXL1V0703-6R8-RFIXED IND 6.8UH 6.8A 42.5MOHM SM |
486 |
|
规格书 |
EXL1V0703 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 6.8 A | 11A | Shielded | 42.5mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|

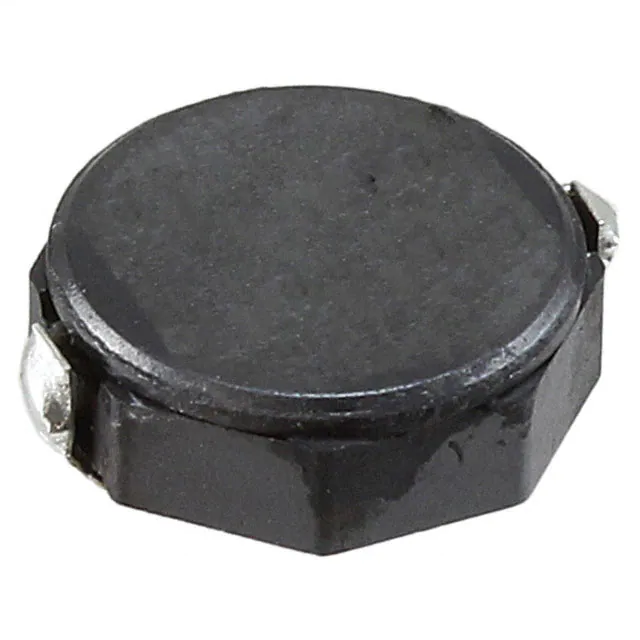

CDRH8D28HPNP-4R7NCFIXED IND 4.7UH 3.6A 40 MOHM SMD |
465 |
|
规格书 |
CDRH8D28/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 3.6 A | 4.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
EXL1V0603-R68-RFIXED IND 680NH 20A 5.17MOHM SMD |
430 |
|
规格书 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 20 A | 21A | Shielded | 5.17mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
EXL1V0603-R33-RFIXED IND 330NH 25A 2.5MOHM SMD |
425 |
|
规格书 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 25 A | 28A | Shielded | 2.5mOhm Max | - | 78MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
|
EXL1V0703-2R2-RFIXED IND 2.2UH 13A 13.7MOHM SMD |
369 |
|
规格书 |
EXL1V0703 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 13 A | 17A | Shielded | 13.7mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRP3012TA-R47MFIXED IND 470NH 5A 30 MOHM SMD |
302 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 5 A | 7.2A | Shielded | 30mOhm Max | - | 107MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
EXL1V0703-3R3-RFIXED IND 3.3UH 10A 18 MOHM SMD |
245 |
|
规格书 |
EXL1V0703 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 10 A | 13A | Shielded | 18mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRP3012TA-3R3MFIXED IND 3.3UH 2A 210 MOHM SMD |
229 |
|
规格书 |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 2 A | 3.1A | Shielded | 210mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
|
|
EXL1V0603-3R3-RFIXED IND 3.3UH 8A 20.8MOHM SMD |
210 |
|
规格书 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8 A | 9A | Shielded | 20.8mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|

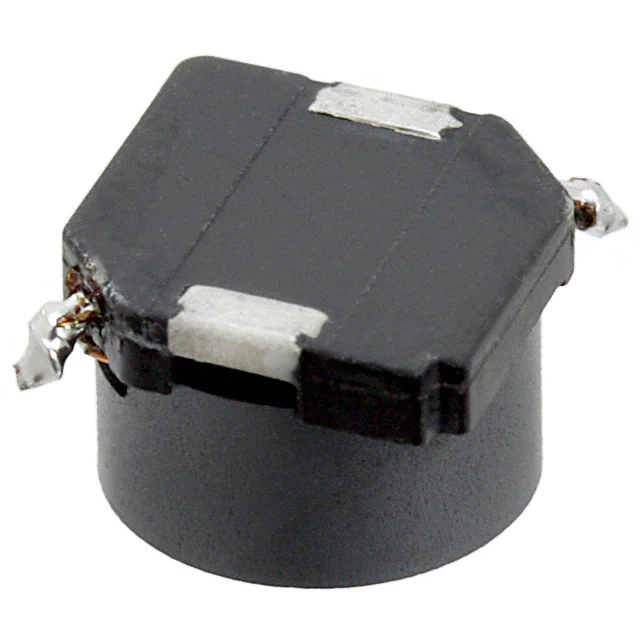

CDRR75NP-331MCFIXED IND 330UH 450MA 1.05OHM SM |
3,850 |
|
规格书 |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 450 mA | 250mA | Shielded | 1.05Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|
EXLA1V0603-R33-RIND MOLDED SHLD 0.33UH 25.0A |
3,194 |
|
规格书 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 330 nH | ±20% | 25 A | 28A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
