在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

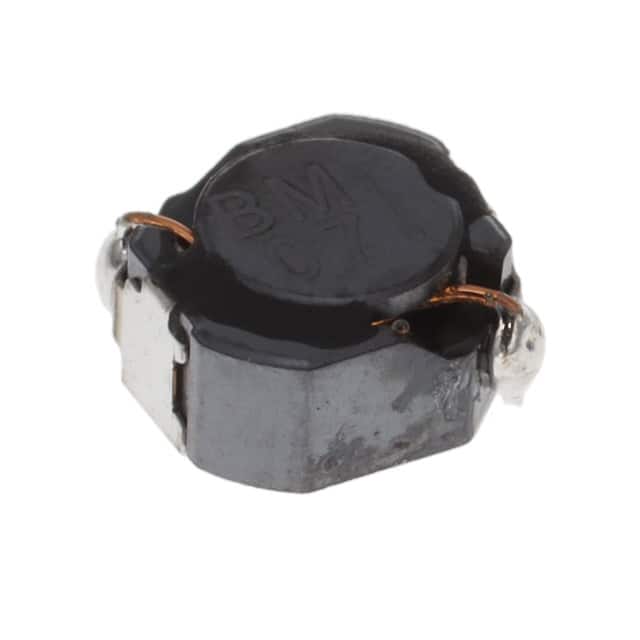

CDRH50D28BT150NP-1R5NCFIXED IND 1.5UH 3.4A 20MOHM SMD |
1,918 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 3.4 A | 5.5A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
MWLA0503S-4R7MTFIXED IND 4.7UH 53MOHM 6000MA |
1,898 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
MWSA0518S-1R0MTFIXED IND 1UH 8A 17 MOHM SMD |
1,895 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 8 A | 9A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
MWLA0402S-R47MTFIXED IND 0.47UH 14MOHM 12000MA |
1,870 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 8 A | 12A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0503S-R47MTFIXED IND 470NH 11A 8.5MOHM SMD |
1,868 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 11 A | 15A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-1R0MTFIXED IND 1UH 14MOHM 11000MA |
1,860 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 7 A | 11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
CDRH50D28BT150NP-6R8NCFIXED IND 6.8UH 1.92A 75MOHM SMD |
1,850 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.92 A | 2A | Shielded | 75mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SBC9-471-601FIXED IND 470UH 600MA 820MOHM TH |
1,842 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 600 mA | 1.3A | Unshielded | 820mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.610" (15.50mm) |
|
|
MWSA0503S-1R5MTFIXED IND 1.5UH 8.2A 25MOHM SMD |
1,780 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 8.2 A | 9A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

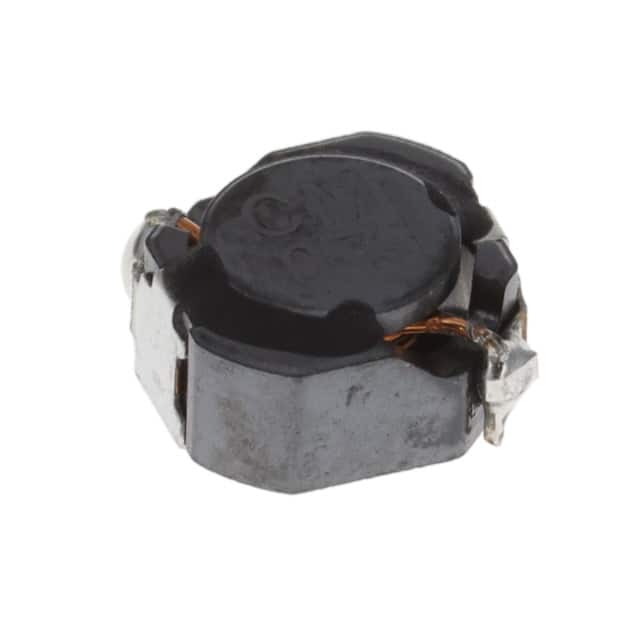

CDRH50D28BT150NP-2R2NCFIXED IND 2.2UH 3.2A 26MOHM SMD |
1,767 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 3.2 A | 3.5A | Shielded | 26mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
HCMA0503-R75-RFIXED IND 750NH 11.3A 9.35 MOHM |
1,694 |
|
规格书 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 11.3 A | 9.7A | Shielded | 9.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
MWLA0402S-1R5MTFIXED IND 1.5UH 42MOHM 7000MA |
1,593 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 4.5 A | 7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

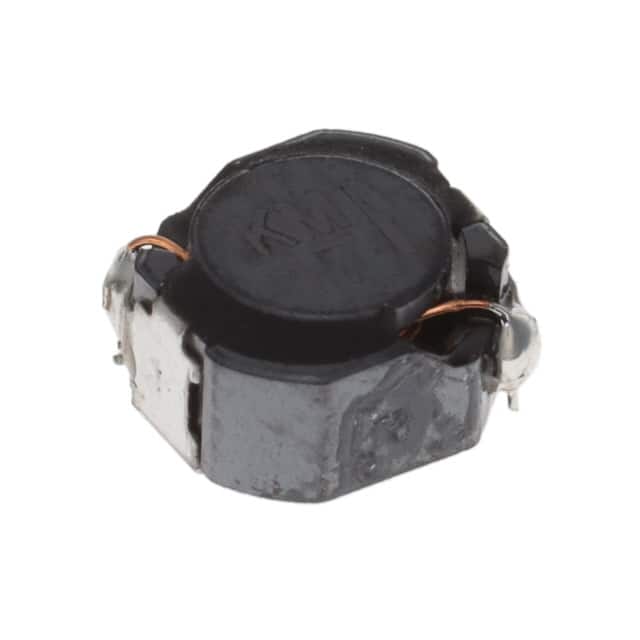

CDRH50D28BT150NP-330MCFIXED IND 33UH 900MA 280MOHM SMD |
1,489 |
|
规格书 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 900 mA | 930mA | Shielded | 280mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-5R6MTFIXED IND 5.6UH 63MOHM 4500MA |
1,480 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 4.25 A | 4.5A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWSA0503S-6R8MTFIXED IND 6.8UH 3.5A 90MOHM SMD |
1,406 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 3.5 A | 3.6A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWSA0503S-R33MTFIXED IND 330NH 14A 5.5MOHM SMD |
1,390 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 330 nH | ±20% | 14 A | 18A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

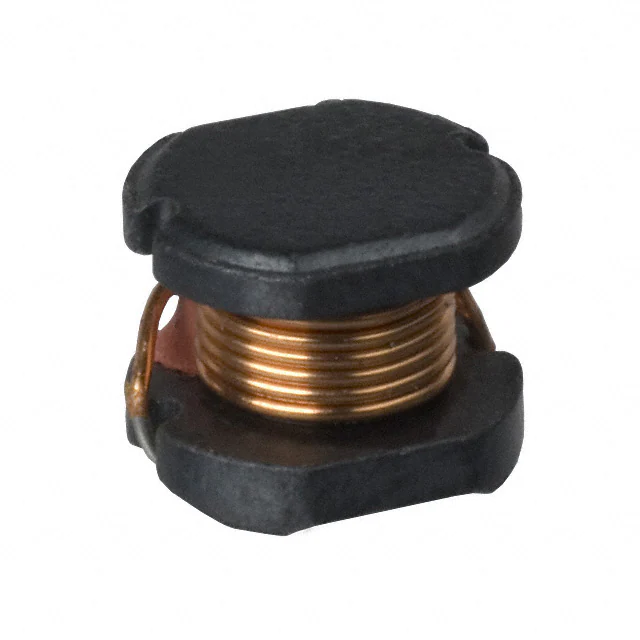

PM54-680K-RCFIXED IND 68UH 620MA 520MOHM SMD |
1,212 |
|
规格书 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 620 mA | 840mA | Unshielded | 520mOhm | 22 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
MWSA0518S-4R7MTFIXED IND 4.7UH 3.5A 85MOHM SMD |
1,062 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 3.5 A | 4A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
ECS-MPI2520R1-2R2-RFIXED IND 2.2UH 2.3A 90 MOHM SMD |
20,328 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

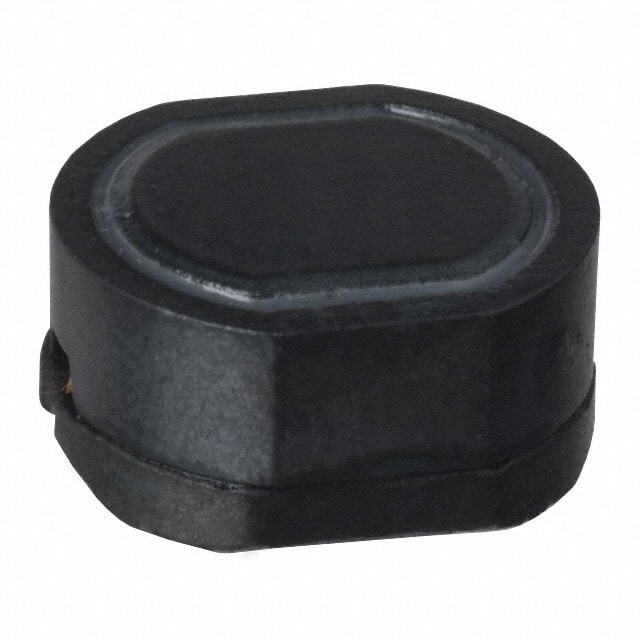

PM105SB-471K-RCFIXED IND 470UH 330MA 1.5OHM SMD |
2,998 |
|
规格书 |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 330 mA | - | Shielded | 1.5Ohm Max | 26 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
