在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0618CDMCCDS-R22MCFIXED IND 220NH 18A 3.6MOHM SMD |
1,435 |
|
规格书 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 18 A | 23A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
0618CDMCCDS-R15MCFIXED IND 150NH 25A 2.4MOHM SMD |
1,358 |
|
规格书 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 25 A | 27A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
SRU5028A-150YFIXED IND 15UH 1.1A 140 MOHM SMD |
1,263 |
|
规格书 |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.1 A | 1A | Shielded | 140mOhm Max | 18 @ 2.52MHz | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
DR1030-150-RFIXED IND 15UH 2.3A 68.8MOHM SMD |
1,034 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.3 A | 2.66A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
PG0087.103NLFIXED IND 10UH 1.2A 124 MOHM SMD |
2,950 |
|
规格书 |
PG0087NL | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 1.2 A | 1.2A | Shielded | 124mOhm Max | - | 34MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|

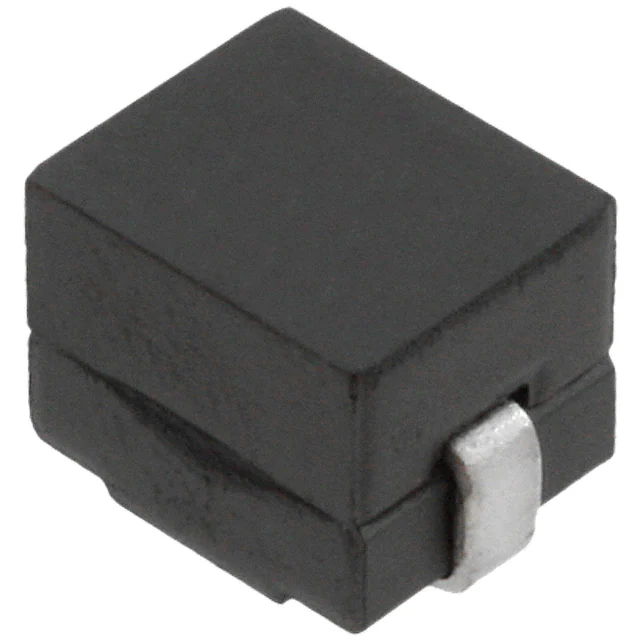

PA2607.271AHLFIXED IND 270NH 41A 0.29MOHM SMD |
1,770 |
|
规格书 |
PA2607AHL | Nonstandard | Tray | Active | - | - | 270 nH | ±15% | 41 A | 37A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
|

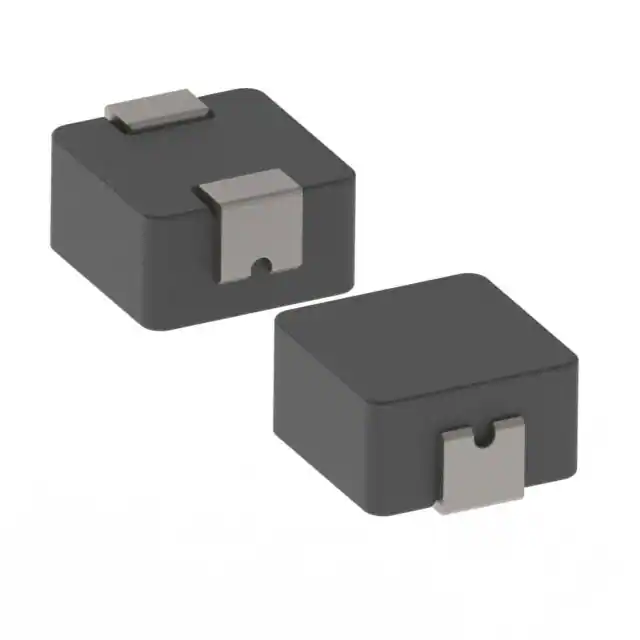

PA4340.471ANLTFIXED IND 470NH 13.5A 6 MOHM SMD |
9,447 |
|
规格书 |
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 13.5 A | 10A | Shielded | 6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
104CDMCCDS-R36MCFIXED IND 360NH 32A 1.2MOHM SMD |
6,604 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 360 nH | ±20% | 32 A | 52A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
AIAC-4125C-R111J-TFIXED IND 111NH 3.5A 9.5MOHM SMD |
5,497 |
|
规格书 |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 111 nH | ±5% | 3.5 A | - | Unshielded | 9.5mOhm Max | 100 @ 50MHz | 1GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | 0.197" (5.00mm) |
|
APSC00101140150M00FIXED IND 15UH 55 MOHM SMD |
4,470 |
|
规格书 |
APSC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | - | 3.4A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
IHLP1212ABEVR33MA1IHLP-1212AB-A1 .33 20% EV E3 |
3,985 |
|
规格书 |
IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 6.96 A | 9.32A | Shielded | 18.34mOhm Max | - | 180MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212ABEVR47MA1IHLP-1212AB-A1 .47 20% EV E3 |
3,696 |
|
规格书 |
IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 5.86 A | 8.17A | Shielded | 27.39mOhm Max | - | 157MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|

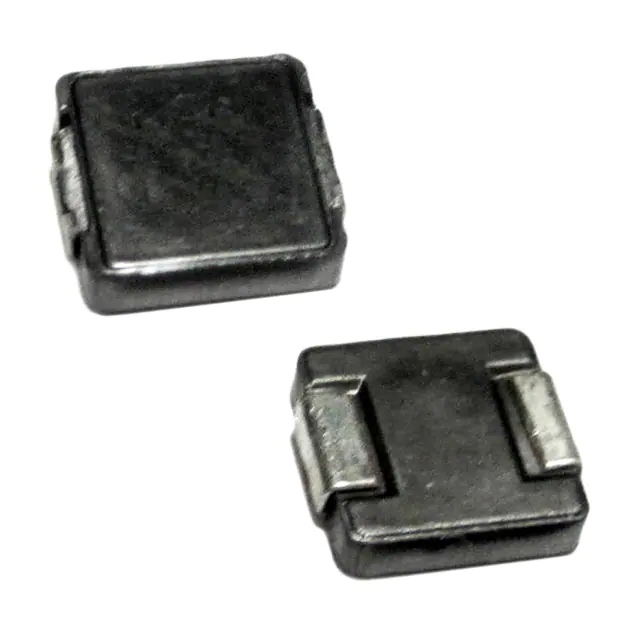

ASPI-7318-R47M-TFIXED IND 470NH 17.5A 4.2MOHM SM |
2,656 |
|
规格书 |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 17.5 A | 24A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
DR1030-8R2-RFIXED IND 8.2UH 3.3A 34.1MOHM SM |
2,197 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.3 A | 3.54A | Shielded | 34.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|

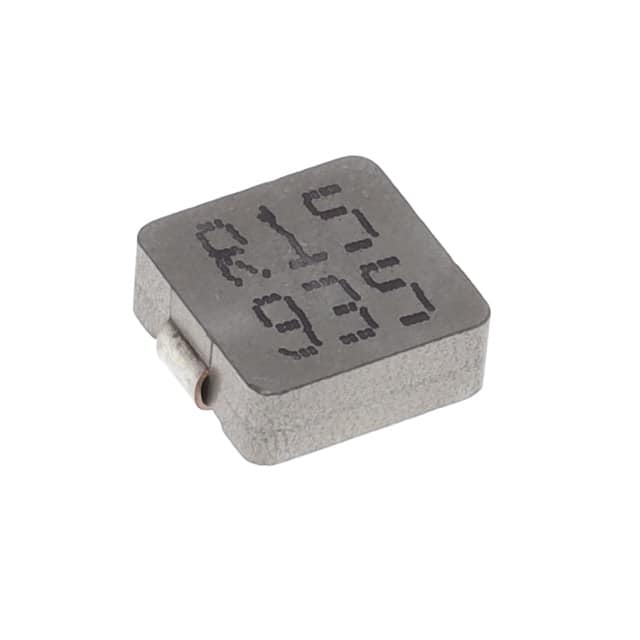

104CDMCCDS-R15MCFIXED IND 150NH 43A 0.65MOHM SMD |
1,990 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 43 A | 71A | Shielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

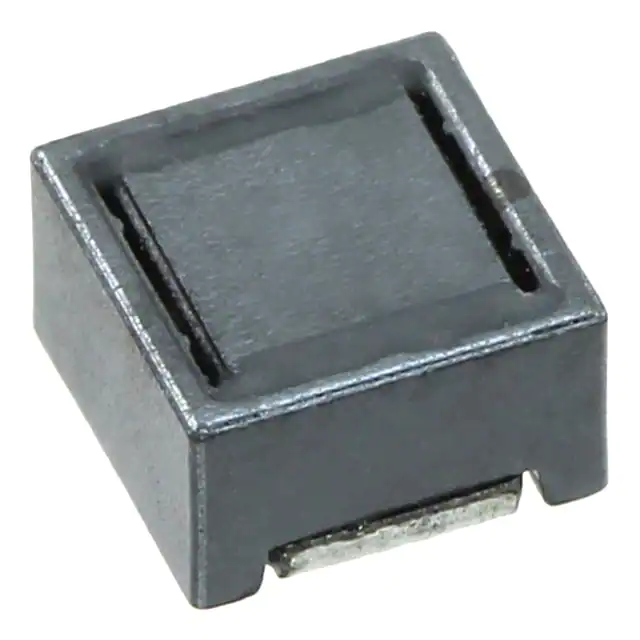

74406043012FIXED IND 1.2UH 3.61A 21MOHM SMD |
1,756 |
|
规格书 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.61 A | 3.06A | Shielded | 21mOhm Max | - | 237MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
P0250.333NLFIXED IND 33UH 3A 66 MOHM SMD |
2,190 |
|
规格书 |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 33 µH | ±15% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
|
P0250.562NLFIXED IND 5.6UH 5.3A 20 MOHM SMD |
2,190 |
|
规格书 |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 5.6 µH | ±15% | 5.3 A | 12A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|

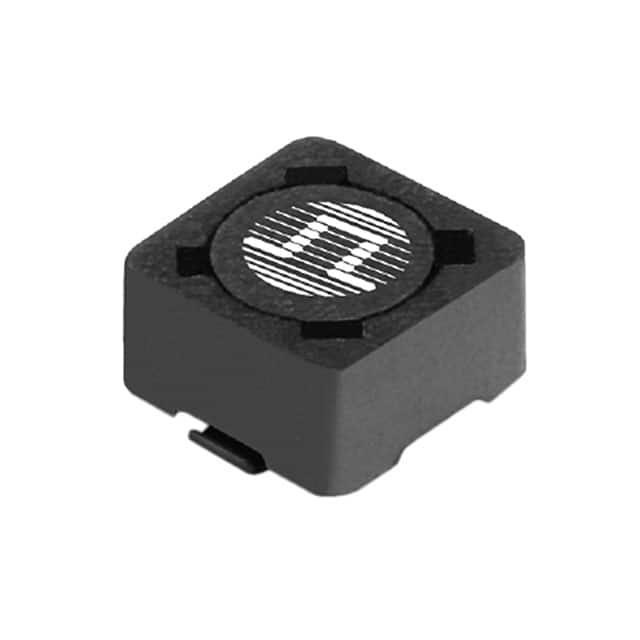

P1167.153NLFIXED IND 15UH 1.8A 66 MOHM SMD |
2,690 |
|
规格书 |
P1167NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±20% | 1.8 A | 1.7A | Shielded | 66mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|

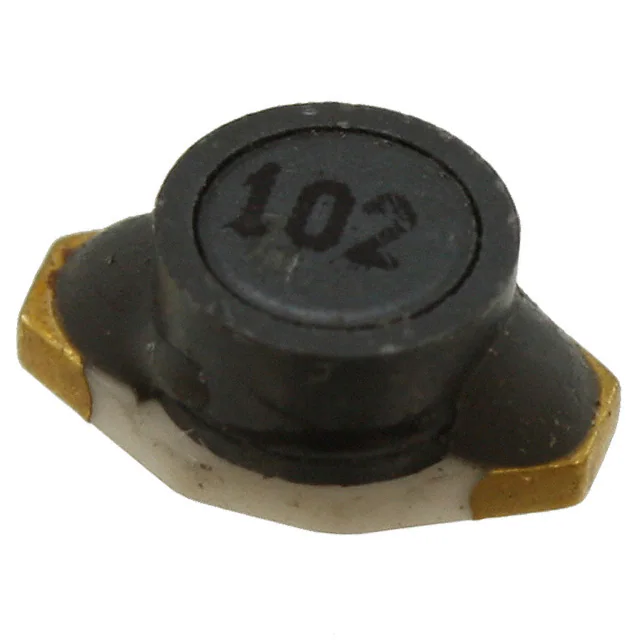

SRE6603-682MFIXED IND 6.8MH 40MA 25 OHM SMD |
5,267 |
|
规格书 |
SRE6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±20% | 40 mA | 19mA | Shielded | 25Ohm Max | 50 @ 100kHz | 1MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
