| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDMK3030T3R3MMVFIXED IND 3.3UH 1.9A 167MOHM SMD |
3,682 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.9 A | 2.1A | Shielded | 167mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

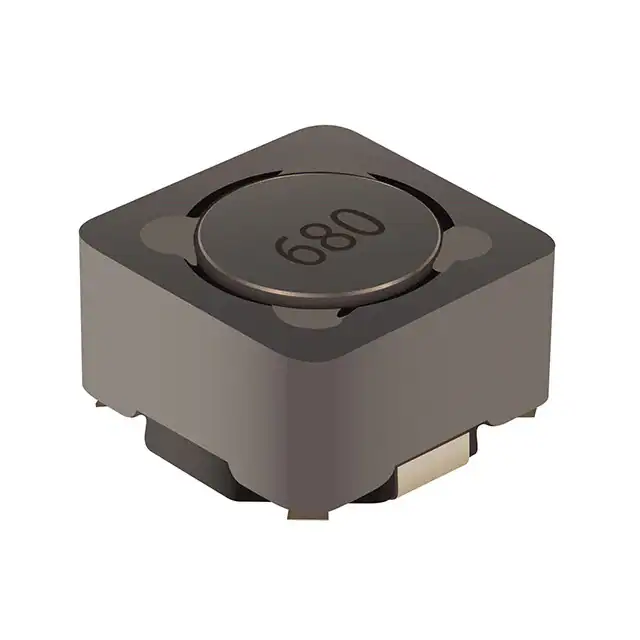

SRR0745A-471MFIXED IND 470UH 290MA 2.2OHM SMD |
3,494 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 290 mA | 340mA | Shielded | 2.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0745A-181MFIXED IND 180UH 460MA 820MOHM SM |
3,219 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±20% | 460 mA | 540mA | Shielded | 820mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
MWLB0601S-4R7MTFIXED IND 4.720%UH 172MOHM 2800M |
2,973 |
|
规格书 |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 2 A | 2.5A | Unshielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|

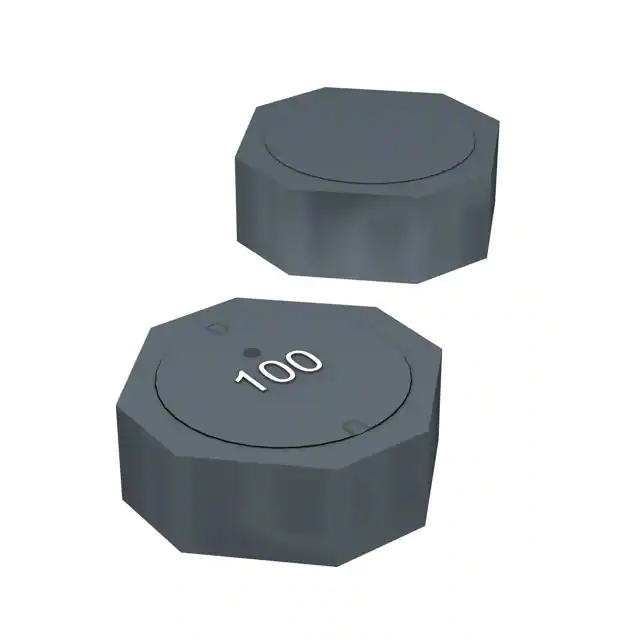

SRU8028-6R8YFIXED IND 6.8UH 2.8A 34 MOHM SMD |
2,906 |
|
规格书 |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.8 A | 2.5A | Shielded | 34mOhm | 13 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0745A-121MFIXED IND 120UH 600MA 550MOHM SM |
2,749 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±20% | 600 mA | 700mA | Shielded | 550mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0745A-391MFIXED IND 390UH 320MA 1.85OHM SM |
2,743 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±20% | 320 mA | 360mA | Shielded | 1.85Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|

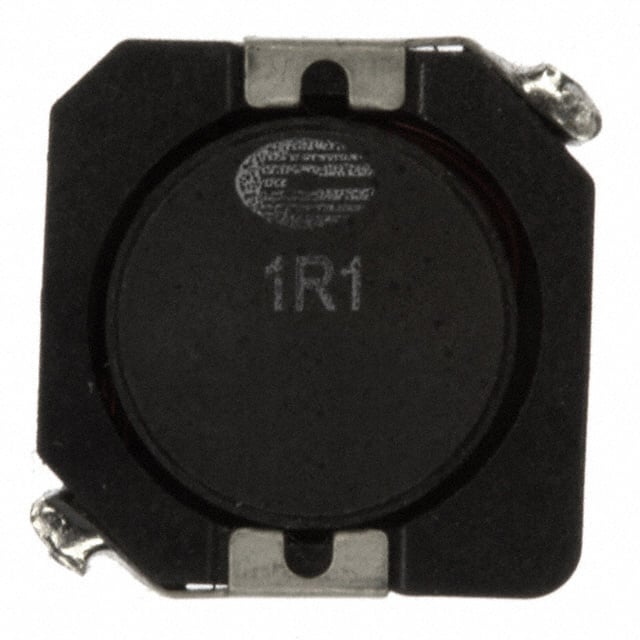

DR1030-1R1-RFIXED IND 1.1UH 7A 7.9 MOHM SMD |
2,704 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±30% | 7 A | 9.5A | Shielded | 7.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
|
SRR0745A-561MFIXED IND 560UH 260MA 2.6OHM SMD |
2,684 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±20% | 260 mA | 300mA | Shielded | 2.6Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
SRR0735A-390MFIXED IND 39UH 950MA 250MOHM SMD |
2,626 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 950 mA | 960mA | Shielded | 250mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRU8028-220YFIXED IND 22UH 1.6A 106 MOHM SMD |
2,490 |
|
规格书 |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.6 A | 1.5A | Shielded | 106mOhm | 22 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0735A-100MFIXED IND 10UH 2.1A 72 MOHM SMD |
2,459 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 1.85A | Shielded | 72mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|

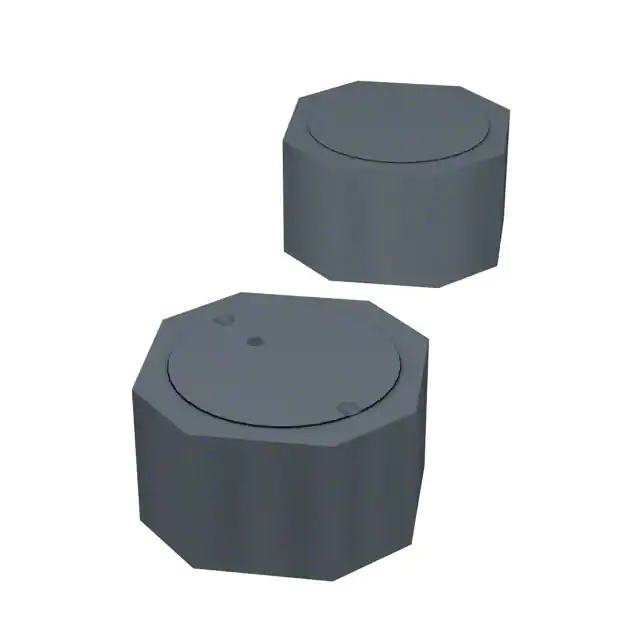

SRU5028A-2R2YFIXED IND 2.2UH 3.2A 27 MOHM SMD |
2,398 |
|
规格书 |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.2 A | 2.5A | Shielded | 27mOhm Max | 10 @ 7.96MHz | 130MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRR0745A-151MFIXED IND 150UH 480MA 760MOHM SM |
2,015 |
|
规格书 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 480 mA | 580mA | Shielded | 760mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRU8028-100YFIXED IND 10UH 2.6A 45 MOHM SMD |
1,920 |
|
规格书 |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 2.6 A | 2.2A | Shielded | 45mOhm | 22 @ 2.52MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
MWSA0605S-150MTFIXED IND 15UH 3.1A 90 MOHM SMD |
1,920 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 15 µH | ±20% | 3.1 A | 4A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MDMK3030TR30MMVFIXED IND 300NH 6.4A 20 MOHM SMD |
1,858 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 300 nH | ±20% | 6.4 A | 7.6A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRU5028A-100YFIXED IND 10UH 1.8A 85 MOHM SMD |
1,736 |
|
规格书 |
SRU5028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.8 A | 1.4A | Shielded | 85mOhm Max | 18 @ 2.52MHz | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SRR0735A-151MFIXED IND 150UH 470MA 930MOHM SM |
1,671 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 470 mA | 480mA | Shielded | 930mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|

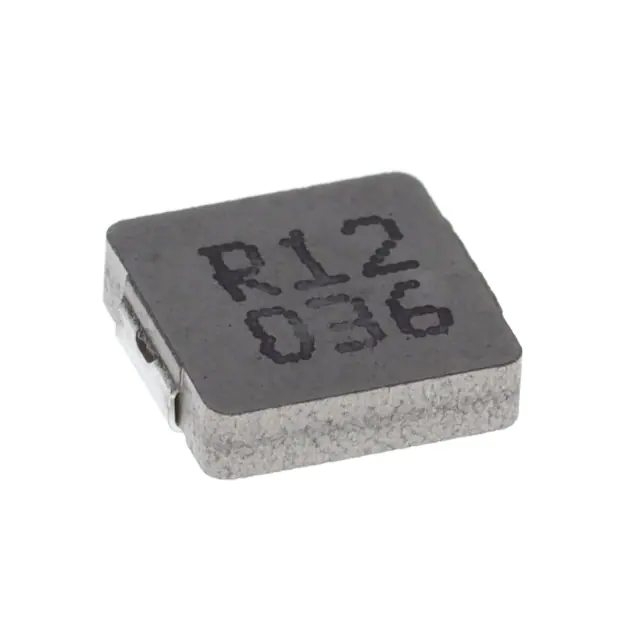

0618CDMCCDS-R12MCFIXED IND 120NH 25A 2.4MOHM SMD |
1,450 |
|
规格书 |
0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 25 A | 30A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
