在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

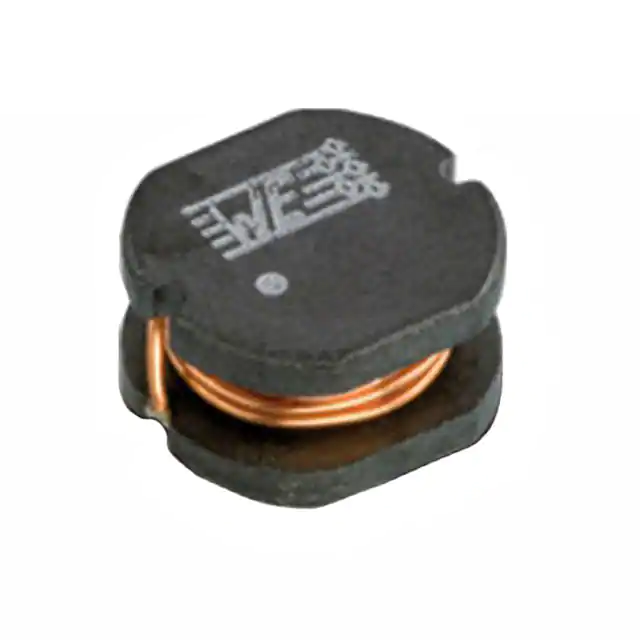

7447732022FIXED IND 2.2UH 1.71A 90MOHM SMD |
3,397 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 1.71 A | 2.54A | Unshielded | 90mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|

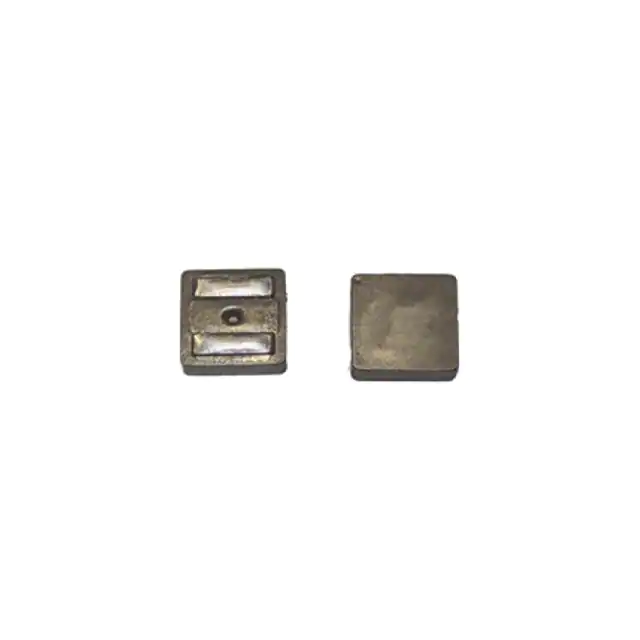

EXL1V0605-1R0-RFIXED IND 1UH 20A 4.52 MOHM SMD |
3,197 |
|
规格书 |
EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 20 A | 18A | Shielded | 4.52mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
PA2982.121HLFIXED IND 120NH 62A 0.35MOHM SMD |
3,170 |
|
规格书 |
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 120 nH | ±10% | 62 A | 74A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
|

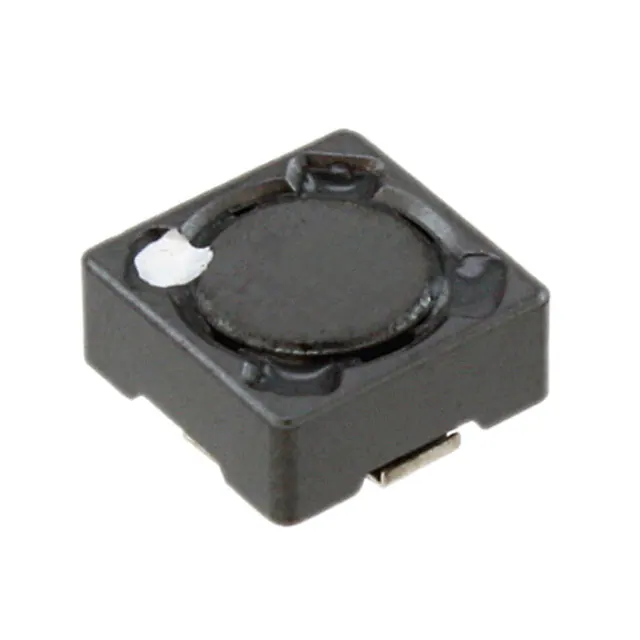

B82472G4683M000FIXED IND 68UH 690MA 460MOHM SMD |
2,389 |
|
规格书 |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 690 mA | 600mA | Shielded | 460mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|

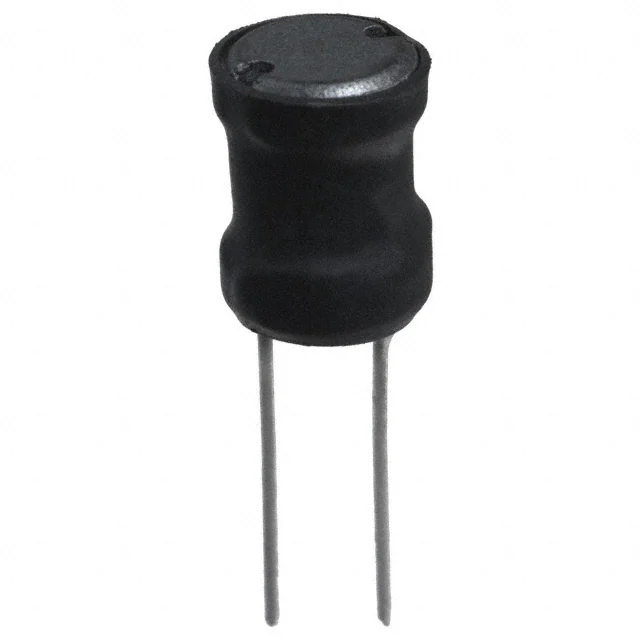

6000-220K-TR-RCFIXED IND 22UH 2.4A 70 MOHM TH |
1,976 |
|
规格书 |
6000 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.4 A | - | Unshielded | 70mOhm Max | 40 @ 2.52MHz | 9.2MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
7447732147FIXED IND 47UH 360MA 1.33OHM SMD |
1,673 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 360 mA | 590mA | Unshielded | 1.33Ohm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|
|
7447732068FIXED IND 6.8UH 960MA 210MOHM SM |
1,389 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 960 mA | 1.48A | Unshielded | 210mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3521 | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.094" (2.40mm) |
|

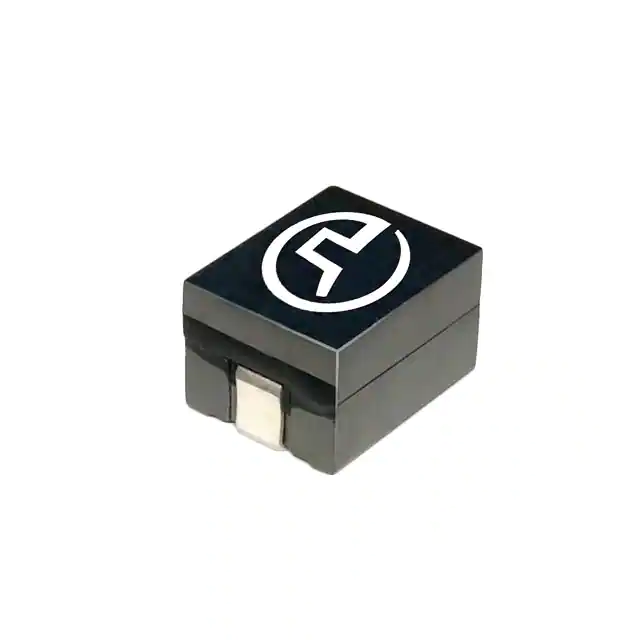

PA2202.231NLFIXED IND 230NH 36A 0.48MOHM SMD |
2,390 |
|
规格书 |
PA2202.XXXNL | Nonstandard | Tray | Active | - | - | 230 nH | ±15% | 36 A | 47A | Unshielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.476" L x 0.394" W (12.10mm x 10.00mm) | 0.236" (6.00mm) |
|
IHLP1212BZEVR47M5AFIXED IND 470NH 6.73A 21.75MOHM |
7,975 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.73 A | 4.66A | Shielded | 21.75mOhm Max | - | 135MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
IHLP1212AZEVR33M5AFIXED IND 330NH 5.85A 23.3 MOHM |
3,977 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 5.85 A | 5.05A | Shielded | 23.3mOhm Max | - | 187MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
|
IHLP1212AZEVR22M5AFIXED IND 220NH 7.72A 14.87MOHM |
3,968 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 7.72 A | 5.88A | Shielded | 14.87mOhm Max | - | 225MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|

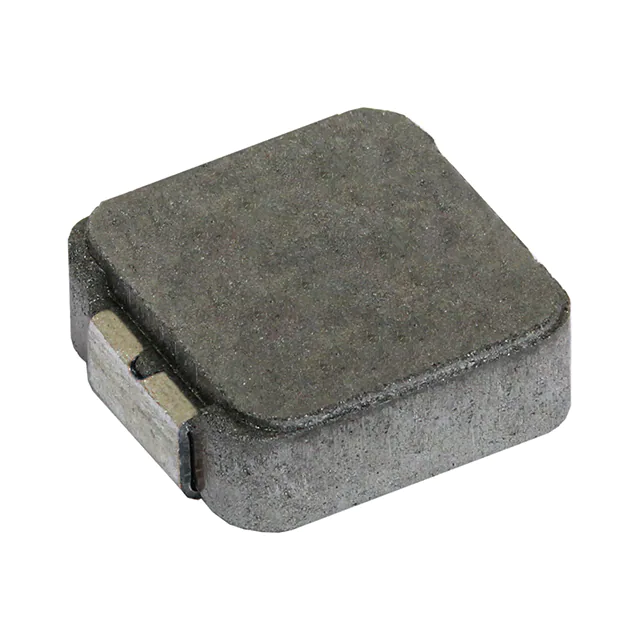

IHLP1212ABEVR33M5AFIXED IND 330NH 6.42A 16.33MOHM |
3,924 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 6.42 A | 5.26A | Shielded | 16.33mOhm Max | - | 165MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212BZEVR68M5AFIXED IND 680NH 5.96A 27.75MOHM |
3,598 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.96 A | 4.27A | Shielded | 27.75mOhm Max | - | 106MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
IHLP1212ABEVR82M5AFIXED IND 820NH 4.26A 45.44MOHM |
3,574 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 4.26 A | 4A | Shielded | 45.44mOhm Max | - | 98MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212AZEV1R0M5AFIXED IND 1UH 3.59A 58.99MOHM SM |
3,207 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.59 A | 3.62A | Shielded | 58.99mOhm Max | - | 91MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.039" (1.00mm) |
|
|
IHLP1212ABEV1R0M5AFIXED IND 1UH 4.05A 49.6MOHM SMD |
3,169 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4.05 A | 4.3A | Shielded | 49.6mOhm Max | - | 87MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
|
IHLP1212BZEVR22M5AFIXED IND 220NH 8.35A 13.74MOHM |
2,991 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 8.35 A | 5.75A | Shielded | 13.74mOhm Max | - | 215MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|

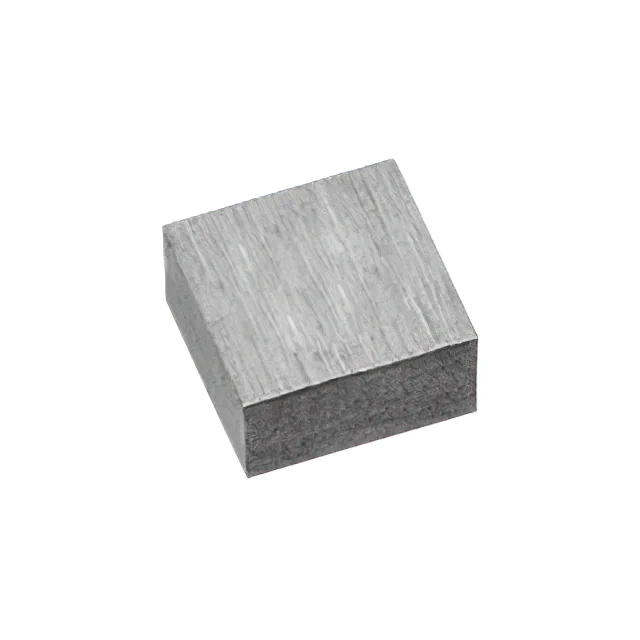

78438313015WE-MAIA SMT POWER INDUCTOR |
2,972 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.5 µH | ±30% | 950 mA | 2.7A | Shielded | 237mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
78438313012WE-MAIA SMT POWER INDUCTOR |
2,899 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.2 µH | ±30% | 1.3 A | 3.2A | Shielded | 174mOhm Max | - | 109MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IHLP1212ABEVR15M5AFIXED IND 150NH 10.23A 9.73MOHM |
2,836 |
|
规格书 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 10.23 A | 9.04A | Shielded | 9.73mOhm Max | - | 328MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
