在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0906-682KLFIXED IND 6.8MH 60MA 23 OHM SMD |
1,116 |
|
规格书 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 60 mA | 140mA | Unshielded | 23Ohm Max | 90 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
MHE05033R3M-10HIGH CURRENT LOW DCR POWER INDUC |
7,654 |
|
规格书 |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 8.1 A | 10.5A | Shielded | 23mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.224" L x 0.213" W (5.70mm x 5.40mm) | 0.118" (3.00mm) |
|
SBC2-220-132FIXED IND 22UH 1.3A 110 MOHM TH |
5,667 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 1.4A | Unshielded | 110mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|
|
SBC2-100-212FIXED IND 10UH 2.1A 60 MOHM TH |
4,341 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.1A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|

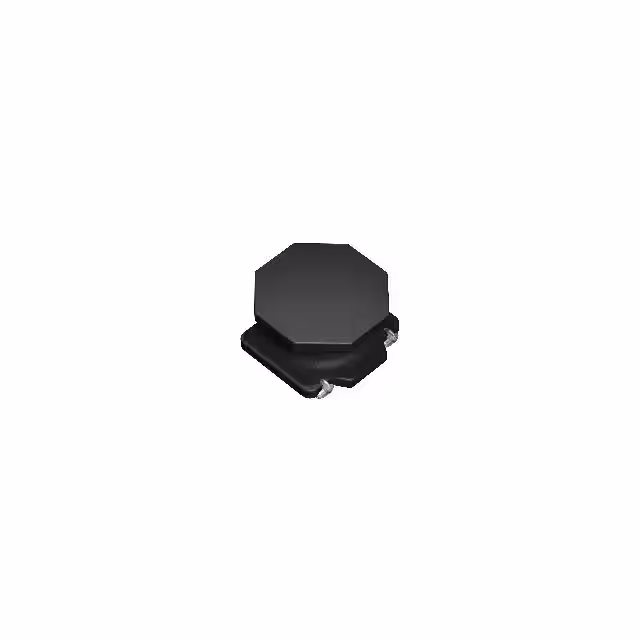

LCDND3030MKTR33MMFIXED IND 330NH 5.5A 20 MOHM SMD |
4,000 |
|
规格书 |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 5.5 A | 6.4A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

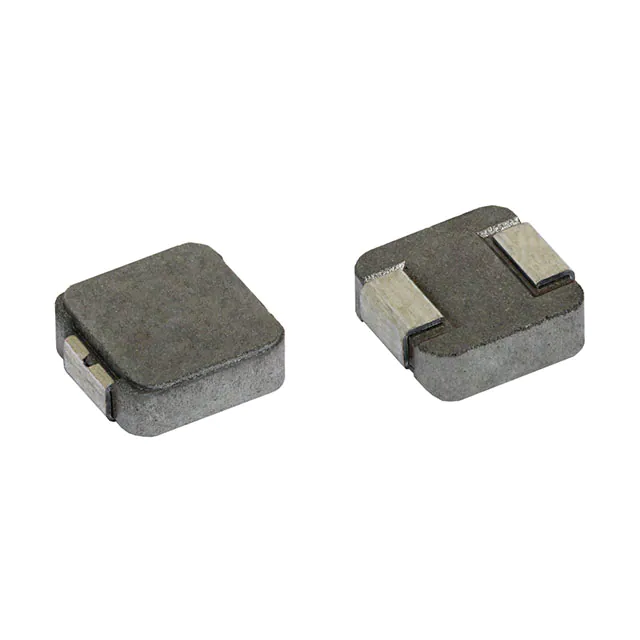

IHLP1212ABEVR15MA1IHLP-1212AB-A1 .15 20% EV E3 |
3,881 |
|
规格书 |
IHLP-1212AB-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 150 nH | ±20% | 9.06 A | 13.13A | Shielded | 12.14mOhm Max | - | 320MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.047" (1.20mm) |
|
LCDND3030MKTR47MMFIXED IND 470NH 4.7A 27 MOHM SMD |
3,238 |
|
规格书 |
LCDN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 4.7 A | 6.3A | Unshielded | 27mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SBC3-680-112FIXED IND 68UH 1.1A 190 MOHM TH |
2,814 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.1 A | 1.2A | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
|
SBC2-470-951FIXED IND 47UH 950MA 210 MOHM TH |
2,275 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 950 mA | 1A | Unshielded | 210mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.315" (8.00mm) |
|

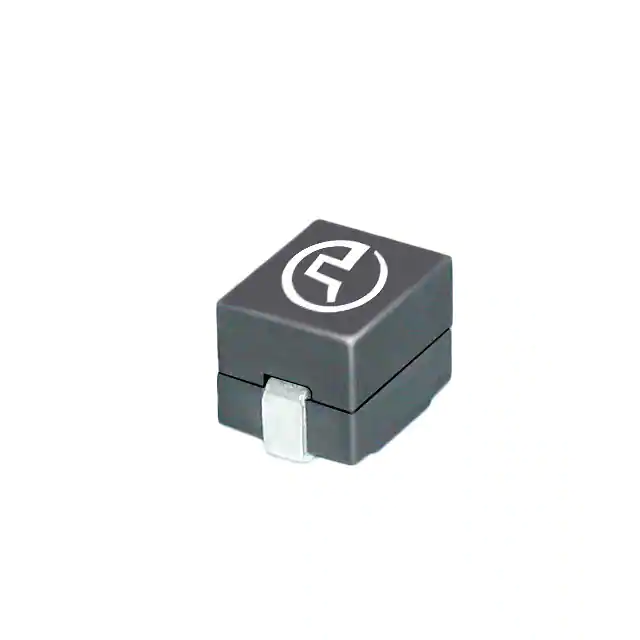

PA2982.151HLTFIXED IND 150NH 50A 0.35MOHM SMD |
9,204 |
|
规格书 |
PA2982.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 50 A | 64A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
|

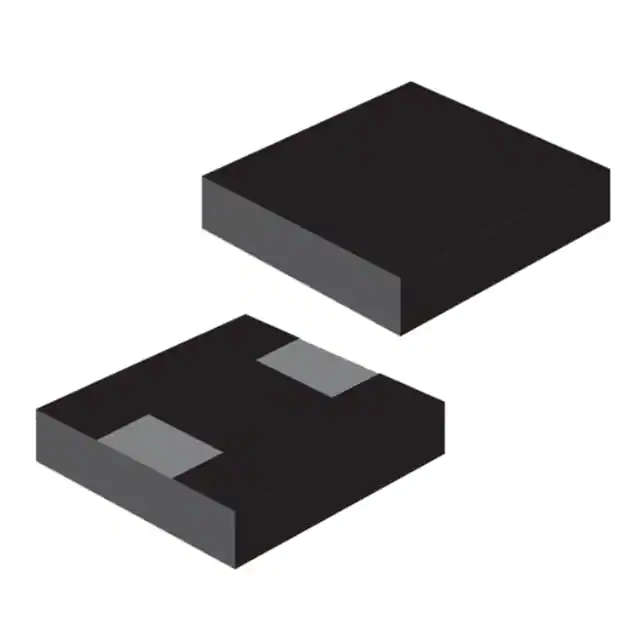

ECS-MPI2520R0-4R7-RFIXED IND 4.7UH 1.4A 288MOHM SMD |
7,728 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.4 A | 1.4A | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

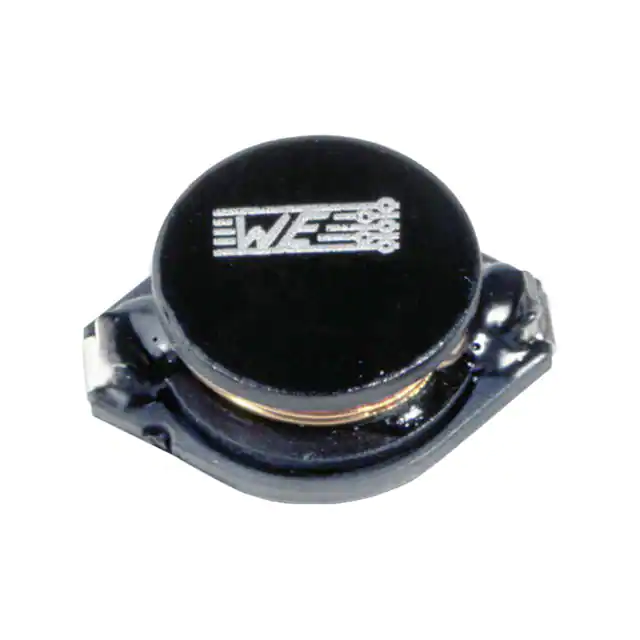

74456347FIXED IND 4.7MH 200MA 17 OHM SMD |
7,161 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 200 mA | 200mA | Unshielded | 17Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
ECS-MPI2520R0-3R3-RFIXED IND 3.3UH 1.6A 228MOHM SMD |
5,978 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 1.6 A | 1.6A | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SRR0735A-681MFIXED IND 680UH 210MA 4 OHM SMD |
5,591 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 210 mA | 220mA | Shielded | 4Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|

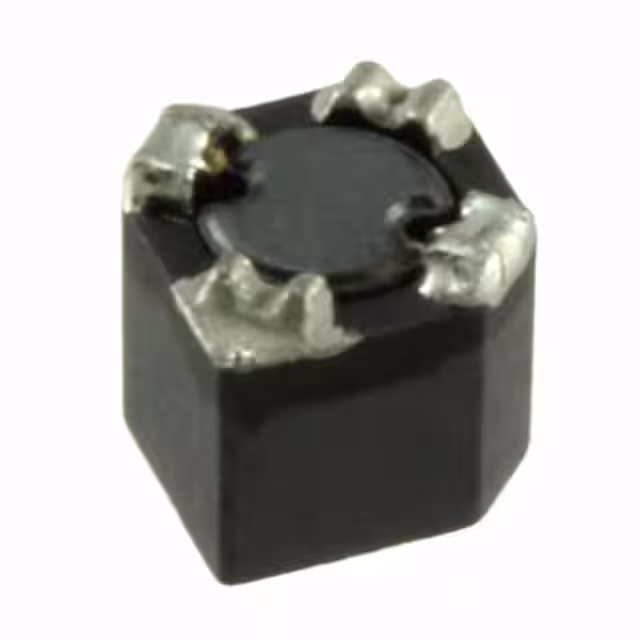

SRU3028A-330YFIXED IND 33UH 470MA 560MOHM SMD |
4,739 |
|
规格书 |
SRU3028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 470 mA | 480mA | Shielded | 560mOhm Max | 20 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|

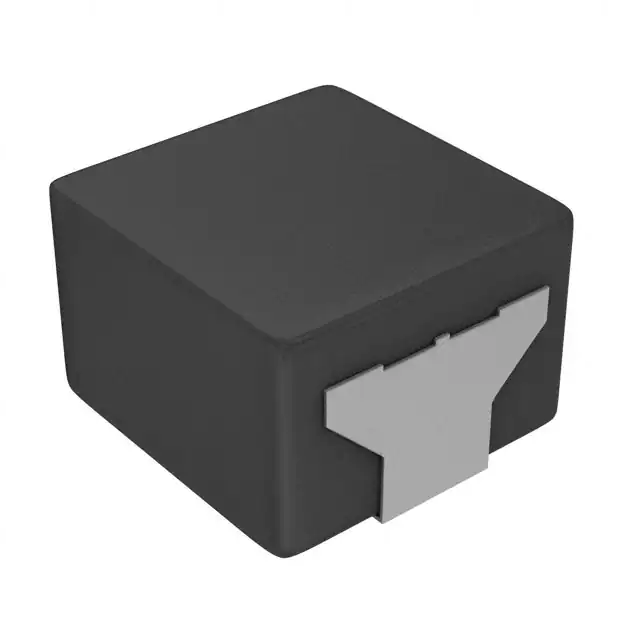

ETQ-P3MR68KVNFIXED IND 680NH 13.2A 5.72 MOHM |
4,487 |
|
规格书 |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 13.2 A | 20.2A | Shielded | 5.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SRR0735A-331MFIXED IND 330UH 330MA 2 OHM SMD |
4,470 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 330 mA | 330mA | Shielded | 2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735A-680MFIXED IND 68UH 720MA 400MOHM SMD |
4,334 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 720 mA | 740mA | Shielded | 400mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
|
SRR0735A-470MFIXED IND 47UH 850MA 320MOHM SMD |
4,211 |
|
规格书 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 850 mA | 880mA | Shielded | 320mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|

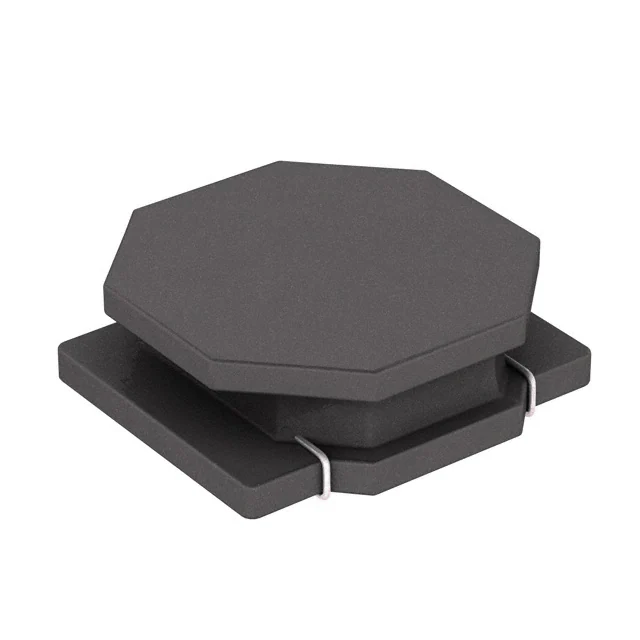

MDMK3030T1R0MMVFIXED IND 1UH 3.9A 50 MOHM SMD |
4,000 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.9 A | 4.3A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
