在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78438313010WE-MAIA SMT POWER INDUCTOR |
2,654 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1 µH | ±30% | 1.4 A | 3.4A | Shielded | 159mOhm Max | - | 111MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
SRU1028-2R2YFIXED IND 2.2UH 5.3A 11 MOHM SMD |
2,492 |
|
规格书 |
SRU1028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.3 A | 4.8A | Shielded | 11mOhm | 12 @ 7.96MHz | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
78438313022WE-MAIA SMT POWER INDUCTOR |
2,335 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.2 µH | ±30% | 850 mA | 2.5A | Shielded | 388mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
784383130056WE-MAIA SMT POWER INDUCTOR |
1,500 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 560 nH | ±30% | 1.65 A | 4A | Shielded | 113mOhm Max | - | 150MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
784383130068WE-MAIA SMT POWER INDUCTOR |
1,500 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 680 nH | ±30% | 1.55 A | 3.8A | Shielded | 126mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
784383130082WE-MAIA SMT POWER INDUCTOR |
1,390 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 820 nH | ±30% | 1.45 A | 3.6A | Shielded | 144mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
784383130047WE-MAIA SMT POWER INDUCTOR |
1,255 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 470 nH | ±30% | 1.7 A | 4.5A | Shielded | 101mOhm Max | - | 200MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
784383130033WE-MAIA SMT POWER INDUCTOR |
1,243 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 330 nH | ±30% | 1.9 A | 4.9A | Shielded | 84mOhm Max | - | 215MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
PF0560.153NLFIXED IND 15UH 3.1A 50 MOHM SMD |
2,330 |
|
规格书 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±30% | 3.1 A | 3.6A | Shielded | 50mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PF0560.382NLFIXED IND 3.8UH 5.5A 13 MOHM SMD |
2,330 |
|
规格书 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 3.8 µH | ±30% | 5.5 A | 6A | Shielded | 13mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PF0560.473NLFIXED IND 47UH 1.9A 128 MOHM SMD |
2,330 |
|
规格书 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±25% | 1.9 A | 2.1A | Shielded | 128mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PF0560.702NLFIXED IND 7UH 4.5A 27 MOHM SMD |
2,330 |
|
规格书 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 7 µH | ±30% | 4.5 A | 4.8A | Shielded | 27mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
PA4341.152NLTFIXED IND 1.5UH 9A 15 MOHM SMD |
6,483 |
|
规格书 |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
SBC4-100-292FIXED IND 10UH 2.9A 40 MOHM TH |
5,700 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.9 A | 4.6A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|

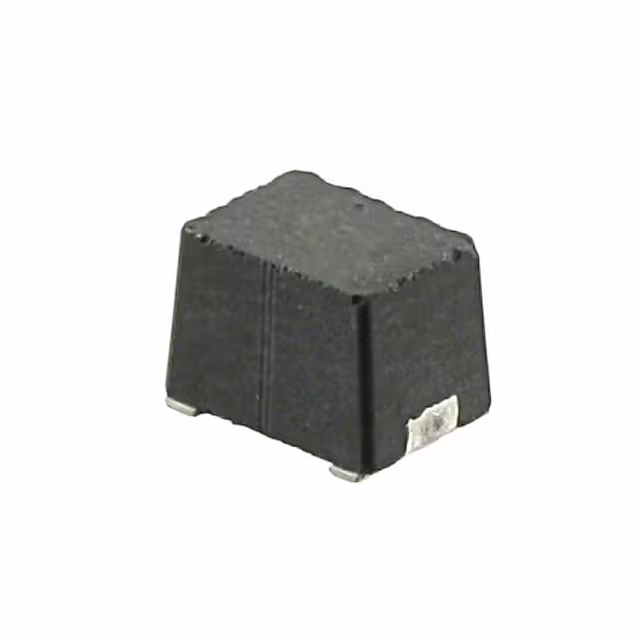

ISC1812ES101KFIXED IND 100UH 147MA 3.25OHM SM |
3,650 |
|
规格书 |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 147 mA | - | Shielded | 3.25Ohm Max | 40 @ 796kHz | 7MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SBC4-680-122FIXED IND 68UH 1.2A 190 MOHM TH |
3,427 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.2 A | 1.8A | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
SBC4-150-232FIXED IND 15UH 2.3A 60 MOHM TH |
2,992 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.3 A | 4A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
MPI4012V2-R33-RFIXED IND 330NH 7.5A 13.5MOHM SM |
2,897 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 7.5 A | 11A | Shielded | 13.5mOhm Max | - | 128MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
|
SBC4-2R7-662FIXED IND 2.7UH 6.6A 20 MOHM TH |
2,451 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 6.6 A | 9.6A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
|
SBC4-3R3-642FIXED IND 3.3UH 6.4A 20 MOHM TH |
2,215 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.4 A | 8.6A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
